Product Specifications
Prod Model: |
RFC-H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Category: |
Beverage Processing Machine |
Composition: |
Filling Machine |
Process: |
Filling |
Processing Material: |
Juice |
Product Description

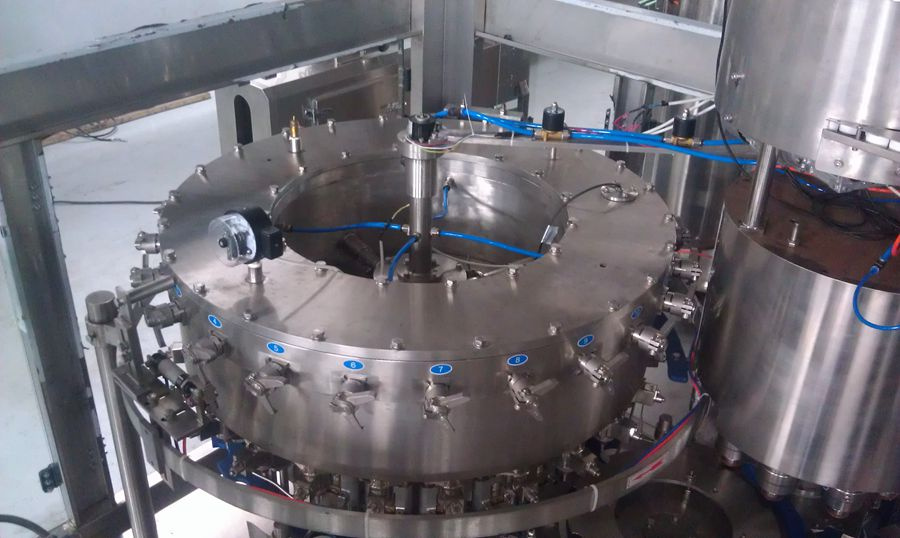

Working principle and main characteristic
1. Working principle:
When bottles are sent to the machine by conveyor continuously, they firstly are deliveried to the receiving wheel by air-slide conveyor and then to washing part. The bottle clamps hold the bottles and trun over 180° To wash, then return back to their original position after enough washing and drying. Then, the bottles are sent to the middle thumb wheel 1 and to the filling part to be filled, then moved by middle thumb wheel 2 and reach to capping part to be capped, at the same time, cap trimmer sends caps to the top of the bottles and capper screws caps. At last, bottles are sent to the conveyor chain by the out stirring wheel to next working position.
2. Main characteristic:
1. Adaptability is wide: Because all parts have a height adjust device, the height of bottle can be adjusted within the range of 120~320mm, the diameter can be adjusted within the range of Φ 40-100mm.
2. Production capacity can be adjusted continuously: Using a frequency inverter to control the speed. So it works more reliable.
3. This machine has a complete set of reliable protection system to protect the machine itself and the operator.
4. Compare with similar type of machine, it has following performances:
More compact in structure, more beautiful in appearance.
The structure of bottle rinsing clamp is more delicate.
Screw head uses magnetic parts.
Model:(RFC-H series) |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
60-60-15 |
capacity: 500ml |
4000 |
6000 |
10000 |
15000 |
18000 |
24000 |
bottle shape: |
Round or square |
PET bottle: (mm) |
(Bottle Diameter): φ 50-. φ 110mm (Height): 150-340mm |
cap: |
PE screw cap |
filling precision: |
≤ ± 5mm |
filling pressure: (Mpa) |
0.15 |
0.25 |
0.35 |
0.35 |
0.55 |
0.75 |
rinsing pressure: (Mpa) |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.2-0.25 |
filling volume: (L) |
3.5 |
4 |
6 |
8 |
8 |
8 |
overall size: (mm) |
1750*1600
*2350 |
|
2200*1800
*2350 |
2600*2150
*2350 |
3200*2150
*2350 |
5500*2550
*2400 |
weight: (kg) |
1500 |
2500 |
3500 |
4500 |
6500 |
8500 |
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex have 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
LPET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
L1-2 & 3-5 Gallon Jar Bottle Water Plant
LBottle, Kind of Container Labeling Solutions
LWater Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
