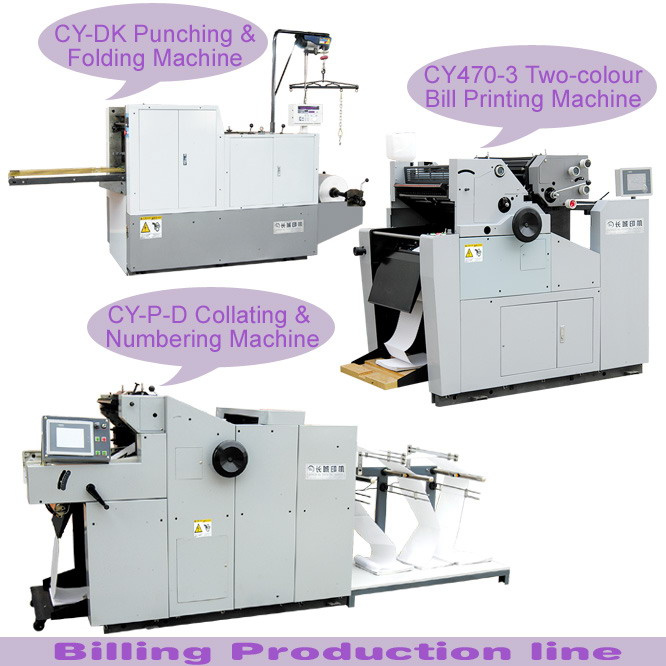

Billing production line:
Step1: Punching and Folding works (roll to pile) by CY-DK machine;
Step2: Two colors Offset Printing process (pile to pile) by CY470-3 machine;
Step3: Collating and Numbering processes (pile to pile) by CY-P-D machine.
STRUCTURE FEATURES OF CY-DK:
1. Adopt frequency conversion timing, electromagnetism controlling and electronic correcting.
2. Punching, line -pressing, cutting and folding can be finished for one time, suitable for various paper and non-carbon paper.
3. More punching rows and plies can be added.
4. Roller can be easily loaded and unloaded, high speed folded, electronic counted.
5. Adopt PLC system, which enable to operate easily, accurately and reliably.
CY470-3 COMPUTER FORM PRINTING MACHINE INSTRUCTION
1. easy operation: There's only one handle used for supplying water, supplying ink and impress by differernt level. It's easy to use.
2. The machine uses paper feeding instrument from the United States, Japanese servo motor, which let the paper be feed stably and fastly.
3. Dialogic touch screen makes the operation easy and accurate.
4. Inking & dampening are separeted, which makes their adjustment very free.
5. Main electronic units are from abroad, such as Japanese encoder and servi moter, German PLC.
PROFILE OF CY-P-D
The machine adopts frequency converter to adjust the speed step less, high precision servo control sheet feeder, three sheet feeders feeding stable, which can solve the problem of paper assembling irregulars. PLC auto control system, Photo electricity measurement, speed quickly, changing size easily (only need changing one chain wheel), counting accurately, counting can pre-setting, automatic stopping. Ink options widely, precise orientation by pinhole, line press function ensure perfect binding. Two form roller feed ink for number device. It can set up any printing numbers on the display screen, without changing the gears and number base when printing any sizes numbers. It can assemble 2-6 plies, It's suitable for various types of computer paper, non-carbon paper.
|
Model |
CY-DK |
|
Max. paper width |
470mm |
|
Paper length |
6-14 inch |
|
Paper thickness |
40-170g |
|
Max. speed |
80m/min |
|
Punching wheel |
3 pcs |
|
Helix |
4 pcs |
|
Power supply |
220v,50Hz |
|
Power |
1.5kw |
|
Machine dimension |
2100 × 1200 × 1400mm |
|
Net weight |
1600kg |
|
|
|
|
Model |
CY470-3 |
|
Color |
Two color |
|
Max. Sheet width |
381mm(about 15.21 inch) |
|
Sheet length |
7-14 inch |
|
Max. speed |
7000 sheet/hour |
|
Plate size |
470 × 395 × 0.15mm |
|
Blanket size |
470 × 420 × 1.95mm |
|
Sheet thickness |
40-170g/m² |
|
Motor power |
220V,1.1Kw |
|
servo motor |
24V,0.4Kw |
|
Power supply |
220v,50Hz |
|
Total power |
2.3KW |
|
Machine dimension |
1600(L) × 880(W) × 1400(H) |
|
Net weight |
600kg |
|
Packing case dimension |
2100(L) × 1000(W) × 1450(H) |
|
Gross weight |
750kg |
|
|
|
|
Model |
CY-P-D |
|
Max.sheet width |
380mm |
|
Max. sheet collating layers |
6 layers |
|
Max collating speed |
7000sheet/hour |
|
Paper weight |
40-100g/m² |
|
Power supply |
220v,50Hz |
|
Main motor |
220v,1.1kw |
|
Servodriver |
24v,1kw |
|
Numerator |
25 pcs Max.
(5 pcs on a ring × 5 pcs on a shaft) |
|
Total power |
2.5kw |
|
Machine dimension |
5000(L)*1000(W)*1400(H) |
|
Net weight |
600kg |
Weifang Changcheng Precision Machinery Co., Ltd. is the only professional manufacturer of making entinel- steel machinery for the Ministry of Construction Steel Structure Association. The company is located in Weifang econimic and technological development district, which covers 75 acres, 30 million Yuan in fixed assets, 300 stuffs including more than 120 professional and technical personnel. From last decade to now, the company is committed to the research and development of Offset Printing for China light industry, and has developed to produce more than 10 models of offset press printer such as CY47 series, CY56 series, CY62, CY1650, CY452C, CY1520, single-combined computer bill production lines. Our company has the supply capacity of 2000 units one year. We have set up sales offices and sell service sites. Composite index ranks top 10 in the same industry.
We adhere to the quality slogan that "leading technology to create high-quality brand of the Great Wall. Be more and more excellent to making products satisfied for customers". We have perfact quality management system, and passed the ISO9001: 2000 international quality management system certification. We pay more attention to Post-sale service, and we has set uo tech-training office which is free to general customers for training operation personnel.
Our company will be always to make contribution to all new and old customers' career success and the development of Chinese printing industry.
