Product Specifications
| Prod Model: |

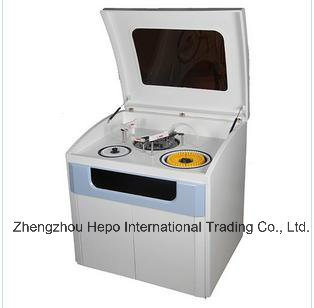

HD-F2600Plus |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Type: |
Full Automatic/Random Option /Emergency First |
| Colorimetric Method: |
Direct Photometry in Cuvette |
| Test Speed: |
300tests/Hr |
| Test Method: |
End Point,Rating ,Double |
| Test Item: |
40 Items Chemistry Test Plus 5 Items Electrolyte |
| Sample Tray: |
60sample Positions, Including Standard ,QC, Emerge |
| Sample Volume: |
1-100UL;0.1UL/Step |
| Reagent Tray: |
40reagent Positions,Refrigerating Function |
| Reagent Volume: |
1-400UL |
| Light Source: |
Long -Life Halogen Lamp 13.8V,50W |
| Classification: |
Biological Diagnostics |
| Type: |
Biochemistry Analyzer |
| Certification: |
ISO13485 |
| Group: |
Middle-aged and Old |
Product Description
Type:Full automatic/random option /emergency first
Choosing Reason:1,Newest model,perfect designing. 2,Mainframe of the computer with software installed along with analyzer,all test items and parameters can be set well before delivery. 3,Two persons can be trained freely for first time. 4,Additional spare parts with tools will be along with analyzer for back up. 5,Rich knowledge engineer and sales can be serve for you.6,One year guarantee time,5years spare parts supplied at least.
Parameters:
Colorimetric method:Direct photometry in Cuvette
Test speed: 300tests/hr
Test method:End Point,rating ,double wavelength,immunoturbidimetric,toxicology pharmaceutical,specific protein analysis,multi-point,single-point.
Test item:40 items chemistry test plus 5 items Electrolyte
Sample tray: 60sample positions, including standard ,QC, emergency position
Sample volume:1-100ul;0.1ul/step
Reagent tray:40reagent positions,refrigerating function
Reagent volume:1-400ul
Reagent probe:Liquid level detection,automatically reset when resisted
Reaction time:0-900s
Reaction Temperature:37ºC ±0.2ºC
Cuvette:90 high-quality,reusable cuvette cup,automatically revise the blank value
Rinse:Automatic 8 steps washing way,total 16times washing systems every time;automatic drying;wasting water leak alarm; Water consumption 3-6L/h
Data storage: more than 200 items and 1million patients 'records can be saved
Light source:Long -life halogen lamp 13.8v,50w
Detecting wavelength :340-700nm(1 to 4 wavelength can be added optional),filter back splitting
Range: 0-3.0A
Mixing function:Independent mixing arms
QC:Rich QC function automatically
1,Insert QC randomly
2,Information storage,displaying and printing the QC chart are all available
3,9 QC items are ok for each test items.
External devices :RS232 date ports for Computer and printer.
Software:English or Chinese operation interface according to you.
| Model | Test Items | Speed | External Size | Net Weight |
| HD-F2600Plus | 40 | 300tests/hour | 880 * 730* 1090mm | 125kgs |
