| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Type: | Polypropylene Capacitor |
| Package Type: | Surface Mount |
| Application: | Power |

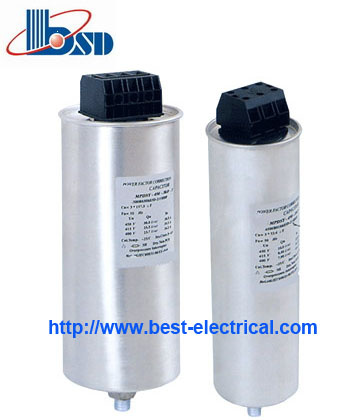

Series | Cylinder type BKMJ power capacitor |
Rated Voltage Range | From 220-690 VAC |
Capacitor Connection | 3 phase (1 phase on request) |
Capacitor Frequency | 50/60 Hz. |
Capacitor Power Range | 1- 50 KVAR |
Dielectric | Metalized polypropylene film with self healing |
Protection | IP 42 (IP 54 on request) |
Discharge Resistors | Built in automatic discharge resistors included, less than 75V within 3 minutes after de-energizing the capacitor |
Tolerance | ±5% |
Maximum Ambient Temperature | -25 °C--50°C (Other temperature range on request) |
Average temperature within 24 hours below 40°C&average | |
temperature with a year below 30°C | |
Max. Relative Humidity | ≤90% |
Max. Altitude | ≤2000m (Other altitude on request |
Over Voltage Tolerance | 1.1 UN (8 hours max. in every 24 hours) |
1.15 UN (30 minutes in every 24 hours) | |
1.2 UN (5 minutes in every 24 hours) | |
1.3 UN (1 minutes in every 24 hours) | |
Over Current Tolerance | 30% permanently |
Max. Surge Current | 200 times of rated current |
Dielectric Loss | ≤0.2 Watt / KVAR |
Voltage Test | Between terminals: 2.15 Un for 10 seconds. |
Between terminals to container: 3000VAC for 10 seconds | |
Safety System | Self protection device |
Capacitor Case Material | Rust-Proof painted steel |
Execution | Indoor, minimum distance between units : 50mm |
Standard | IEC60831 / GBT12747 |
