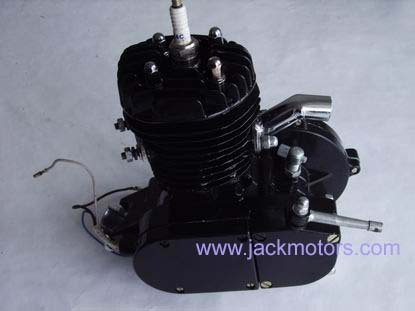

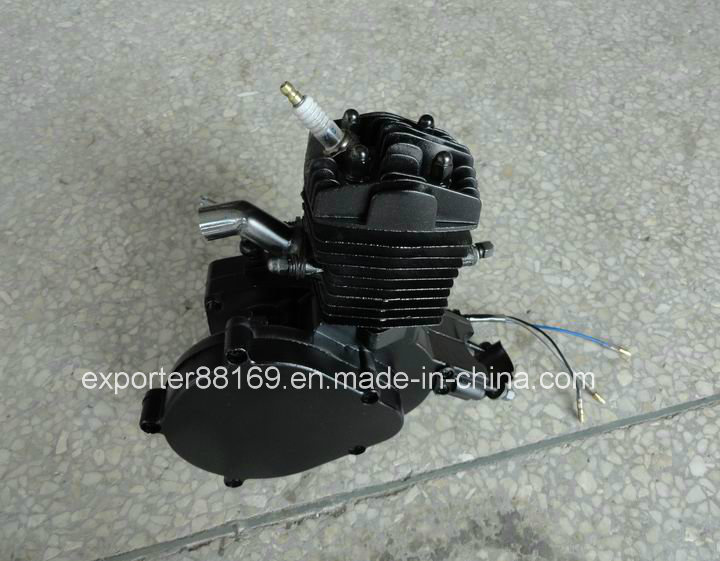

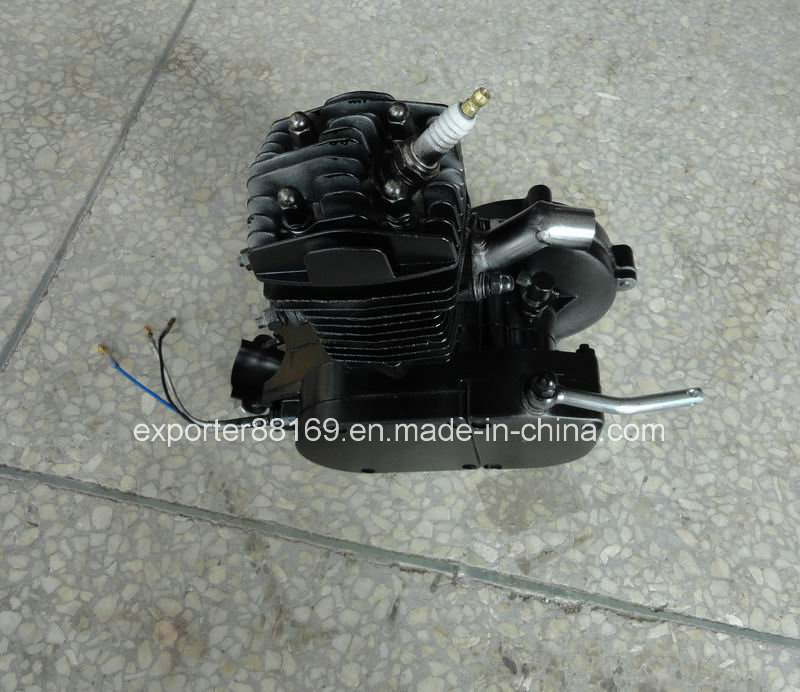

Black Bicycle Engine (F50, F60, F80)
| Price: |
US $ 50-90unit |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
40units |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
F50, F60, F80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 48cc,60cc,80cc: |
Gasoline |
| New: |
2stroke |
| Fuel: |
Gasoline Engine |
Product Description
Model No. F50, F60, F80 bicycle motor
1. Engine type: Single cylinder, air-cooled, 2-stroke
2. Type of fuel mix: 16: 1/20: 1
3. Displacement: 48CC, 60CC, 70/80CC
4. Ignition: C. D. I. Ignition
5. Transmission: Steel chain
5. Max. Power(kw/rpm): F50: 1.6/6000, F60: 2.5/6000, F80: 2.94/6500
6. Fuel consumption: 1.2 liter gasoline/100km
7. Maximum speed: 40km/h
8. Fuel tank: 2 L
Option
1.round head engine
2.square head engine
3.black engine
4.engine head with slant spark plug
5.chrome plated fuel tank or 2.5L black fuel tank
6.black muffler or special muffler
7.bigger fix point for bigger bike frame tube.
8.36T ,44T,48T,56T sprocket. It can be installed on v frame bicycle. Please send your company profile and contact info to us for more detail.
| Item no. | Description | Quantity | Item no. | Description | Quantity |
| 1 | F50 engine assy | 1 | 12 | Sprocket(9holes,44teeth) | 1 |
| 2 | Black fuel tank | 1 | 13 | CDI ignitor | 1 |
| 3 | carburetor | 1 | 14 | Clamping rubber assy | 1 |
| 4 | Chromed exhaust muffler | 1 | 15 | Pulley assy | 1 |
| 5 | Clip, exhaust pipe | 1 | 16 | Strong lock nut | 1 |
| 6 | Aluminum valve,fuel tank | 1 | 17 | alloy push button clutch lever | 1 |
| 7 | 415 heavy duty chain | 1 | 18 | Clutch cable | 1 |
| 8 | Clip, chain cover | 1 | 19 | Accelerator cable | 1 |
| 9 | Chain protect cover | 1 | 20 | Screw tool | 1 |
| 10 | Fuel hose | 1 | 21 | Instruction manual(Eng.or spanish) | 1 |
| 11 | Throttle with kill switch | 1 | 22 | 3 hole mounting adaptor(bolt, nut) | 1 |
