Product Specifications
| Prod Model: |
Portable bluetooth self-timer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bluetooth Gamepad: |
Shutter Remote |
| Distance Version: |
Class A |
| Type: |
Bluetooth Self-Timer |
| Bus: |
No Cable |
Product Description

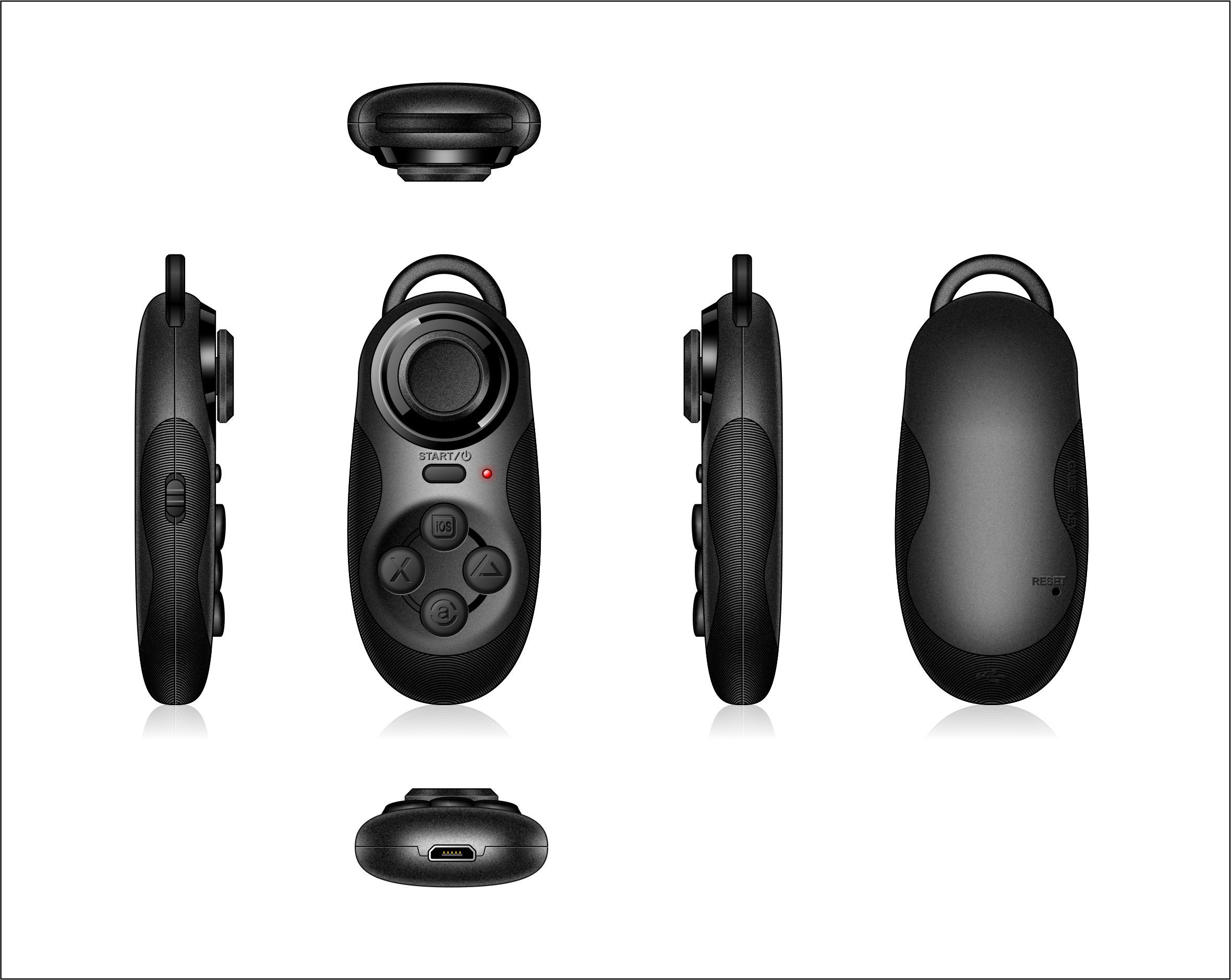

Portable bluetooth gamepad self-timer
Thank you for purchasing the gamepad & Shutter remote, this product is a portable Bluetooth remote controller, used for Mobile Phone, MID, TV box, PC, Gamepad, Wireless mouse etc. Support iOS, Android OS, Windows etc. The information is subject to change without prior notice.
Operating instructions:
Note Android iOS Mode 3
KEY Mode 1KEY Mode 2
GAMEKEY GAME
1joystic mouse Volume+/-,
Prev/NextDirection\Direction
2 STARTPowerMouse leftPlay/PauseStart\UF
3iOS M3VOL+Fast-forwardXShutterYT
4 ESCYHomeIM
5Music M2VOL-rewindAVOL-HR
6Mouse M1ShutterBMuteJN
7. Ring 8. LED 9. GAME-KEYswitch 10. Reset 11. USB charge port
Power ON: Press button until LED is on (about 2 seconds).
Power OFF: Press button until LED is off (about 5 seconds).
Pair and connect: After power on, the device will automatic enter the Bluetooth pairing mode,
The blue LED is flashing, Then find the address and name of equipment, points can be connected. Pair and connect successed, blue LED indicator will turn off.
Mode 1: Android mouse/shutter/game, both press START and Mode 1 button to power on.
Mode 2: Android msuic/shutter/game, both press START and Mode 2 button to power on.
Mode 3: IOS shutter/game, both press START and Mode 3 button to power on.
Note: 1. The system default boot is Android mode 1, the system will remember the last boot mode.
2. In android mode 1, the blue LED is on during startup, else mode, the red LED is on.
3. After power on, if not connected, when more than 5 minutes or connected success, more than 10 minutes not Any operations, the device will automatic shutdown.
4. Press START button more than 8 minutes to power up, the blue LED will is flash. This To enter re-pairing mode,
At this time will not automatically connect the last paired device.
5. In power on or off state, the [GAME-KEY] switch is always available.
6. Android mode is invalid for iOS, in iOS mode will display "-iOS"for bluetooth name.
Specifications
Size: 73mmx31mmx13mm
WirelessBluetooth: 3.0 compliant
Wireless distance: 2-10m
OS: Android /iOS/PC
CPU: ARM968E-S Core
Battery: Li-battery 3.7V 180mA
Continuous time: About 40 hours
Working current: 0.5~4mA
Standby current: 0.5-1mA
Charging current: 5V <200mA
ShutDown Current: <20uA
Game instructions:
1. Combination keys:
(As shown in Figure):
Android Game: SELECT, L1, R1
Android Mouse Mode: L1=MENU
IOS iCade Mode: SELECT=KP, L1=OG, R1=LV
2. Support Games:
Android Games (Gamepad):
Support nes/GB/gbc/sfc/SMD/gba/n64
/mame/psx/PSP, android apk games.
Such as: ETERNITY WARRIORS 2
IOS (iCade): Enter APP Store to search
For "iCade"games. Such as: Akane Lite
