Product Specifications
Prod Model: |
PDA-8848 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Battery: |
Rechargeable Lithium-Ion (3.7V,2800mAh) |
Working Time: |
6 Hours |
Standby: |
15 Days |
Dimension: |
150mm×63mm×31mm |
Material: |
ABS + Silicone |
Charging Indicator: |
LCD |
Working Current: |
420mA |
Standby Current: |
6mA |
EMC: |
CE & FCC Doc Compliance |
Light Source: |
650nm Laser Diode |
Memory Capacity: |
128MB |
Type: |
Handheld Computer |
CPU Type: |
ARM |
OS: |
Obm |
Screen Size: |
2.8' |
Product Description

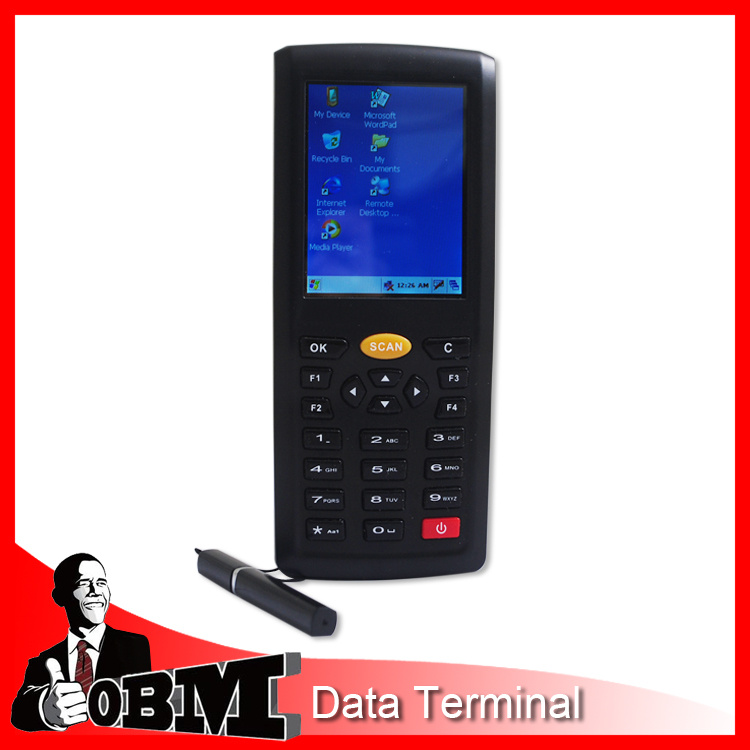

Bluetooth WiFi Wince Mobile Data Terminal (PDA-8848)
Features:
1. Integrated WiFi and Bluetooth communication;
2. Standard 1D scanning with optional 2D and RFID reading;
3.64MB+128MB memory, extendable to 8G;
4.2.8" touch screen color display;
5.2800mA POLYMER-Lithium-ion battery.
Field of Application:
Widely used in retail, manufacturing, postage, logistic, medication, assets management, warehouse, library, supermarket, exhibition and etc.
Main Unit |
|
Model |
PDA-8848 |
|
Color |
Frosted black |
|
Operating System |
Windows CE 5.0 |
|
CPU speed |
400MHz |
|
Memory |
|
RAM |
64KB |
|
ROM |
128MB |
|
|
MicroSD (TF), max. 8G |
|
Screen |
|
size |
2.8 " touch screen |
|
color |
16bit true color ( 65536 colors ) |
|
resolution |
240*320 TFT |
|
Physical |
|
Battery |
Rechargeable Lithium-ion ( 3.7V , 2800mAh ) |
|
Working time |
6 hours |
|
Standby |
15 days |
|
Dimension |
150mm×63mm×31mm |
|
Material |
ABS + silicone |
|
Charging indicator |
LCD |
|
Working current |
420mA |
|
Standby current |
6mA |
|
EMC |
CE & FCC DOC compliance |
|
Scanning |
|
Light Source |
650nm Laser Diode |
|
Decode Rate |
45±2 scans / second |
|
Resolution |
4mil |
|
Scan width |
20mm@window , 100mm@100mm |
|
Depth of Field |
0 ~ 250mm |
|
indicator |
beeper , LCD |
|
Barcode supported |
EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI^ |
|
Transmission |
|
Cable |
USB 2.0 |
|
wireless |
WiFi & Bluetooth |
|
Environment |
|
Operating Temperature |
32~ 113 Fahrenheit |
|
Storage Temperature |
-4~140 Fahrenheit |
|
Humidity |
5% ~ 95% (non-condensing) |
|
Lumination |
Max.5,000 Lux ( Fluorescence ) |
|
