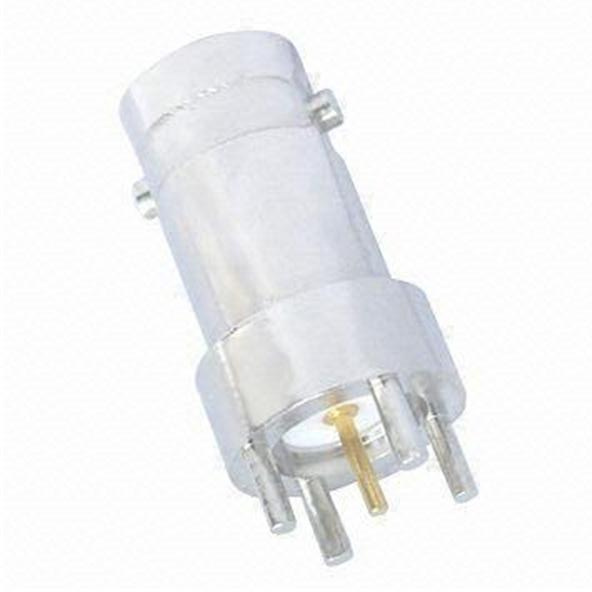

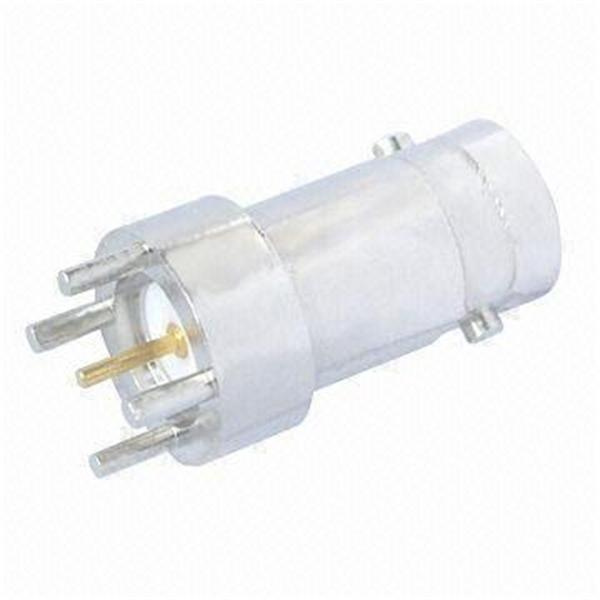

BNC Female PCB Mount Jack RF Connector, Low Power, Quick Connect and Separate Applications
Frequency range: 0 to 3GHz
Working voltage:
At sea level: 500Vrms
At 5.4kPa: 125Vrms
Contact resistance:
Center contact: ≤ 10MΩ
Outer contact: ≤ 2.5MΩ
Insulation resistance: ≤ 5000MΩ
Center conductor withdrawal force: ≤ 0.57N
VSWR:
Straight: ≤ 1.22
Right angle: ≤ 1.30
Vibration: 100m/s2 (80 to 2000Hz)
Impedance: 50 and 75Ω
Durability: 500 cycles
Temperature range: -40 to +155° C
PE cable: -40 to +85° C
Low power, quick connect and separate applications
Using bayonet type coupling mechanism
Widely used in connect of RF coaxial cables in electronicequipment and instruments
Applicable standards: GB/T14865, IEC60169-10 andMIL-C-39012
