Product Specifications
| Prod Model: |
TRSS-BNC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Properties: |
52mm*25mm*25mm |
| Warranty: |
1 Year |
| Response Time: |
<1ns |
| Way To Install: |
Series Connection |
| Type: |
Power Source Arrester |
| Structure: |
Valve Type Arrester |
| Installation: |
Tandem Arrester |
Product Description
Product Introduction

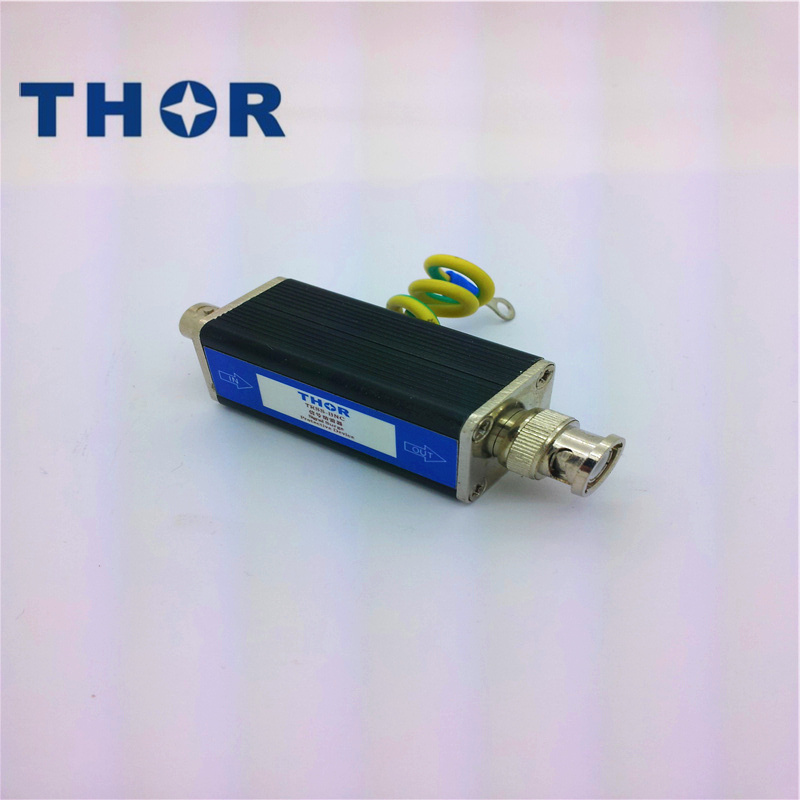

TRSS-BNC seres coaxial communication signal surge protective device,designed according to IEC standard,divided inti F10 head,N head,BNC head and etc coaxial interface,suitable for CATV,monitoring,video communication equipment.It can provide the protection for cable and thicknet equipment.
![]()
Characteristics
1.Protection against surging over-voltage in communication circuit.
2.Wide bandwidth, low insertion loss.
3.BNC bidirectional interface.
4.Free of maintenance.
5.Fast response.
Installation
These series installed st BNC,N,F10,TNC,F and etc coaxial interface between LPZOB and LPZ3.It applied in close-circuit TV,monitoring system,security system,and the computer network system of coaxial signal transmission,satellite communication system VSAT.
Technical Parameter
| Model and specofocation | | TRSS-BNC |
| Working voltage | | 24V |
| Max continuous operating voltage | Uc | 30V |
| Voltage protective level | Up(V) | 60 |
| Nominal discharge current | In(8/20μS) | 10kA |
| Response time | ns | ≤10 |
| Characteristic impedance | | 75Ω |
| Insertion loss | | ≤0.1dB |
| Configuration dimension | | 52×25×25 |
| Interface mode | | BNC |
| Operating condition | | Temp:-40ºC~+70ºC |
| | RH≤95%(25ºC) |
| | Sea level elevation≤3km |
| Remarks | | Other max continuous operating voltage can be customized |
Zhejiang Thor Electric Co., Ltd. is a professional enterprise specialized in producing surge protectors. Our company is located in Liushi.
Our company currently provides up to 60 kinds of surge protectors. We also provide surge protectors according to customers' requirements.
With strict management, standardized production workshops, advanced ERP management system, efficient workers, and professional technical personnel, we are providing customers with high quality and cheap products.
We welcome the friends from all over the world to negotiate with us for the cooperation and development of lightning over-voltage protection market.
Our goals: To become a professional company of designing and manufacturing over-voltage protection products and lightning products.
Business:
Full range of mine supply
Lightning Products spare parts supply
Behalf of the delivery of product testing testing organizations
Lightning Products invites agents around
Product mold design and manufacturing
Quality assurance:
ISO 9001 Quality Management System Certification
CE and RoHS certification
Lightning protection device by Beijing Testing Center
Lightning protection device by Shanghai Testing Center
Product sold five-year warranty
