Product Specifications
Prod Model: |
K15M11 (BNC-JW) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency Range: |
0 to 3GHz |
Type: |
Generally Coaxial Connector |
Coupling Mechanism: |
Clamping Type |
Product Description

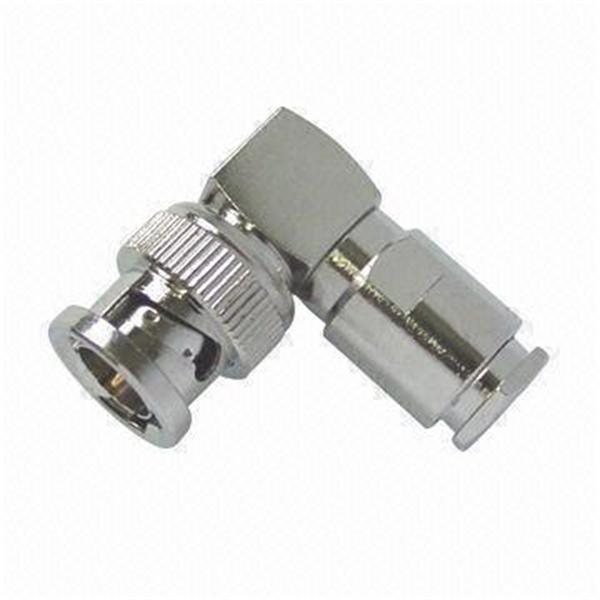

BNC Male Right Angle Clamp Type RF Connector, 50 and 75Ω ImpedanceFrequency range: 0 to 3GHz
Working voltage:
At sea level: 500Vrms
At 5.4kPa: 125Vrms
Contact resistance:
Center contact: ≤ 10MΩ
Outer contact: ≤ 2.5MΩ
Insulation resistance: ≤ 5000MΩ
Center conductor withdrawal force: ≤ 0.57N
VSWR:
Straight: ≤ 1.22
Right angle: ≤ 1.30
Vibration: 100m/s2 (80 to 2000Hz)
Impedance: 50 and 75Ω
Durability: 500 cycles
Temperature range: -40 to +155° C
PE cable: -40 to + 85° C
Low power, quick connect and separate applications
Uses bayonet type coupling mechanism
Widely used in connect of RF coaxial cables in electronicequipment and instruments
Applicable standards: GB/T14865, IEC60169-10 andMIL-C-39012
Certifications: ISO 9001: 2000 and 14001: 2004
Our company has more than 20 years of experiences in manufacturing RF coaxial connector and CNC machining parts. We are the best supplier of Amphenol,and our products have high-precision.
