Product Specifications
Prod Model: |
K15M28 (BNC-J) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency Range: |
0 to 3GHz |
Type: |
Generally Coaxial Connector |
Coupling Mechanism: |
Clamping Type |
Product Description

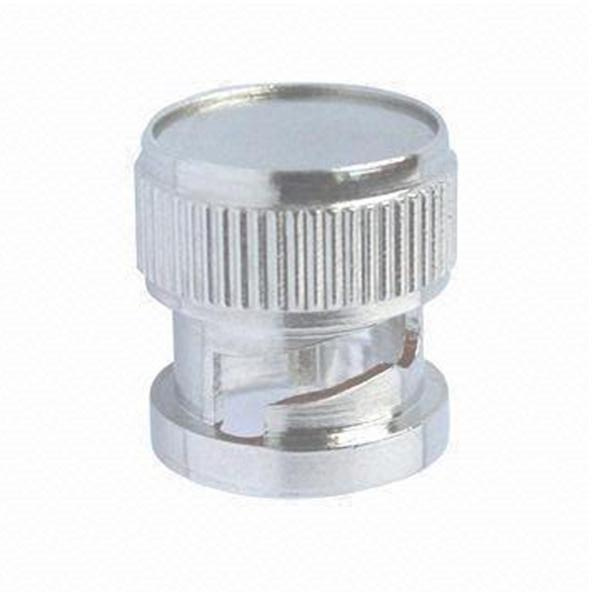

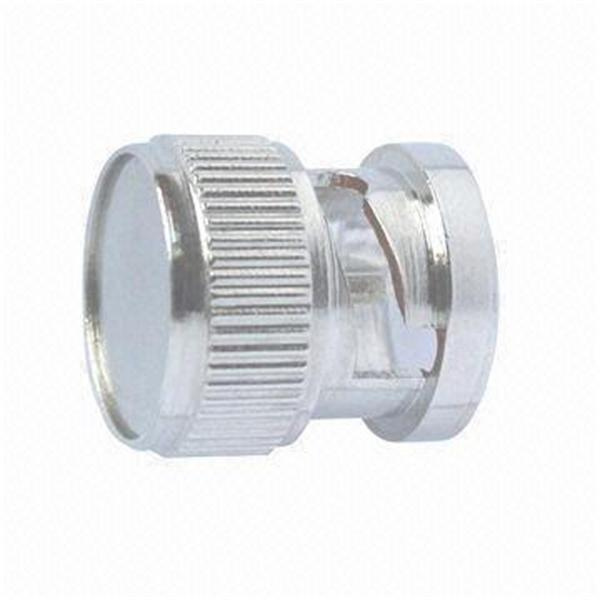

BNC Male Terminator Cap RF Connector, Low Power/Quick Connect and Separate Applications
Frequency range: 0 to 3GHz
Working voltage:
At sea level: 500Vrms)
At 5.4kPa: 125Vrms)
Contact resistance:
Center: ≤ 10MΩ
Outer: ≤ 2.5MΩ
Insulation resistance: ≤ 5000MΩ
Center conductor withdrawal force: ≤ 0.57N
VSWR:
Straight: ≤ 1.22
Right angle: ≤ 1.30
Vibration: 100m/s2(80 to 2000Hz)
Characteristic impedance: 50 and 75Ω
Durability: 500-cycle
Temperature range: -40 to +155° C
PE cable temperature: -40 to +85° C
Low power, quick connect and separate applications
Uses bayonet type coupling mechanism
Widely used in connect of RF coaxial cables in electronicequipment and instruments
Applicable standards: GB/T14865, IEC 60169-10 andMIL-C-39012
Authentication: 14001: 2004
