Product Specifications
| Prod Model: |
FG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Medicine Detecting Instrument |
| Finished Dosage Form: |
Tablet |
Product Description
Application

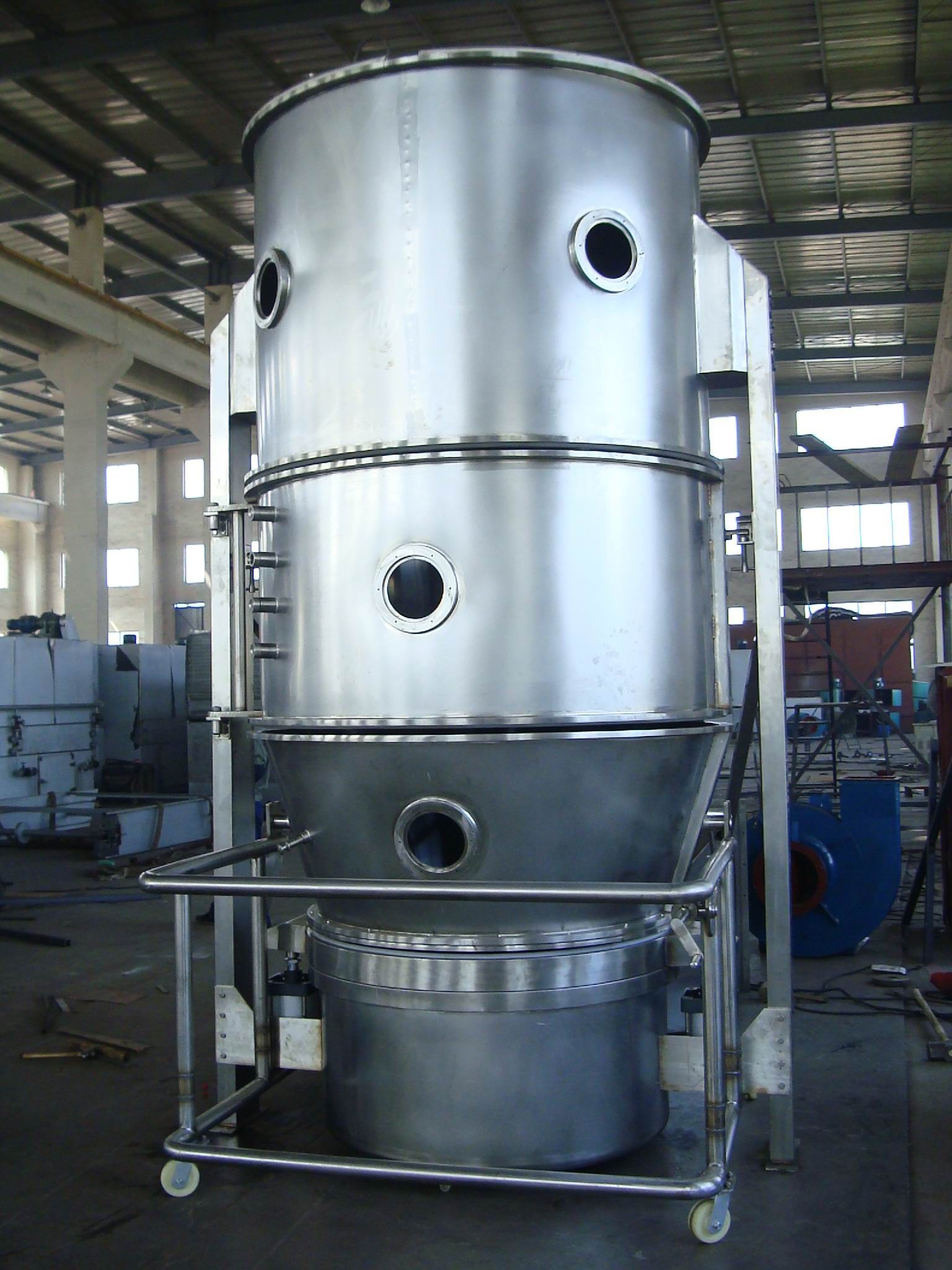

Boiling dryer is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and so on industries.
Features
Fluid bed to achieve fast heat transmission of medium.
Seal negative pressure operation, there is no dust.
Because of using anti-static material as filter, it is safe in operation;
The equipment has no dead corner so it is easy to clean fully and there is no cross pollution.
It is in conformity with the requirements of GMP.
| spec | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 |
| item | unit |
container of
raw material | dim. | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 |
production
capacity | Min | Kg/batch | 1.5 | 4 | 15 | 300 | 80 | 100 | 150 | 250 | 500 |
| Max | Kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 |
| consume of steam | Kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 |
amount of
compressed air | m 3 /min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 |
| power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 |
| temperature |
| Adjustable from ambient to 120 |
| collection rate | % | >99 |
| time of operation | min | 15~30(depends on material) |
content of
final product | % | ~0.2(depends on material) |
| noise | dB | ≤75 |
height of
main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 |
