Product Specifications
| Prod Model: |
CHCY-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Width: |
600-1000mm |
| Printing Length: |
220mm-1100mm |
| Printing Speed: |
10-60mm |
| Printing Precision: |
±0.15mm |
| Total Power: |
28-36kw |
| Weight: |
5000-6000kg |
| Overall Dimension: |
8800×2350×2300mm |
| Packing Details: |
Wooden Cases |
| Payment Term: |
T/T |
| Delivery Time: |
15-20days |
| Color & Page: |
Multi-Colour Printing Press |
| Usage: |
BOPP, Pet, PVC, PE, Aluminum Foil, Paper and Film |
Product Description
Feature
1. 360°non-stopping register sets with easy operation
2. Double-line far-infrared heating tube drying system.
3. Magnetic powder brake applied to unwinding tension system and torque motor used for winding.
4. Double-station winding and unwinding mechanism; semi-automatically receiving and replacing materials with no stop.
5. One-time continuous printing of both the front and the back sides.
Purpose

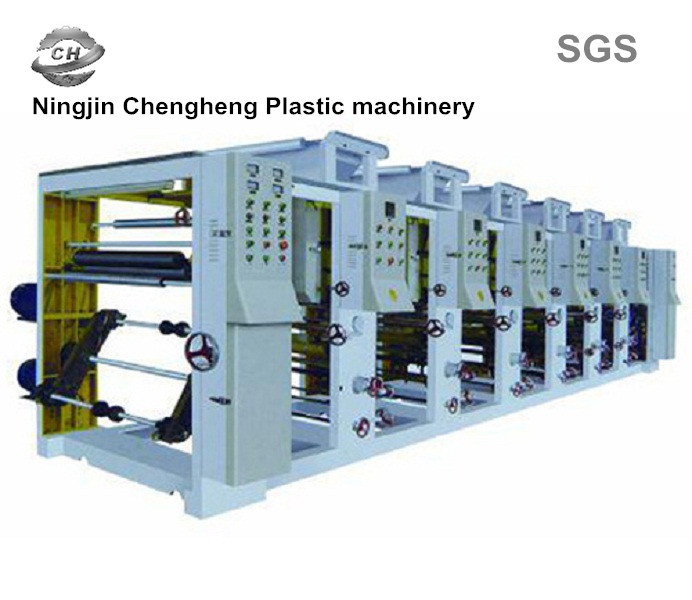

The machine is suitable for the continuous multi-color printing of roll-like materials of excellent printing properties including BOPP, PET, PVC, PE, aluminum foil, paper and film.
| Model | CHCY--6/600A | CHCY-6/800A | CHCY-6/1000A |
| Printing length | 220mm-1100mm | 220mm-1100mm | 220mm-1100mm |
| Printing width | 600mm | 800mm | 1000mm |
| Printing speed | 10-60mm | 10-60mm | 10-60mm |
| Printing precision | ±0.15mm | ±0.15mm | ±0.15mm |
| Total power | 28kw | 32kw | 36kw |
| Weight | 5000kg | 5500kg | 6000kg |
| Overall Dimension | 8800×1950×2300mm | 8800×2150×2300mm | 8800×2350×2300mm |
Service:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service(No charge for changing parts) and mechanical parts lifetime warranty.
3.We will offer you the professional answers about the relating machines in 24 hours.
