Applications:

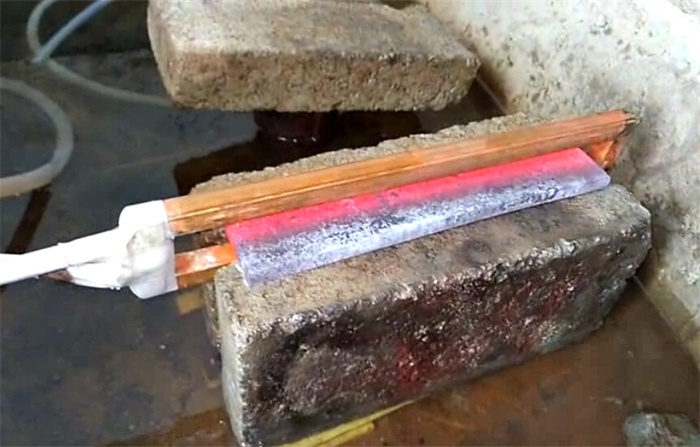

1. Heating metal raw materials for forging, heating building site use rebar, fast water boiling, heating band saw,
2. Melting: with a higher power, it can be used to melt less than 50KG gold, silver, aluminum.
3. Welding: soldering, cooper soldering, fast speed cutting tools soldering, hard alloy soldering/welding, copper tube soldering.
4. Heat treatment: Annealing, after welding heat treatment, metal parts internal stress relive, shaft, and gear surface hardening/quenching.
5. Garage auto repairing use bolt remove, car dent removal.
General Heating temperature of our machine(note: higher power machine can do the melting):
Iron: 1000ºC
Aluminum: 660 ºC
Copper: 1100ºC
Gold: 1100ºC
For more elements heating temperature, please contact us.
Our machine features:
1. Adopted European MOSFET, IGBT solid power module and advanced inverter technology.
2. Can set the time of three stages: "Heating", "Maintain Temperature", "Cooling", separately. Furthermore, the function of adjusting the power of "Maintain Temperature" independently will be effective to control the heating curve and the heating temperature.
3. Include "over-current, over voltage, water shortage, and lack of phase and other fault state self-protected and display", also some other necessary functions which will ensure our heater's higher reliability and durability.
4. Easily operate and the output voltage is safe for operator.
5. Hundred Percent Rated Duty Cycle design, can work 24hours continuously.
6. By your requirement, we can make special fixtures, automatic working station for you.
We have the capacity ranging from 15-120KW machine for you to choose.
Model No. |
KIH-15AB |
KIH-25AB |
KIH-40AB |
KIH-60AB |
KIH-80AB |
KIH-100AB |
KIH-120AB |
Max Fluctuating Power |
15KVA |
25KVA |
40KVA |
60KVA |
80KVA |
100KVA |
120KVA |
Fluctuating Frequency |
30-100KHZ |
Heating Current |
200-600A |
200-1200A |
200-1800A |
400-3200A |
400-3800A |
400-4200A |
400-4600A |
Input Voltage |
Single Phase,
220V,50HZ-60HZ |
(3-Phase),380V,50HZ-60HZ |
The Flow Rate of Cooling Water |
0.2Mpa,6L/Min |
0.2Mpa,6L/Min |
0.2Mpa,7L/Min |
0.2Mpa,9L/Min |
0.2Mpa,9L/Min |
0.2Mpa,12L/Min |
0.2Mpa,12L/Min |
Machine quality warranty:
1. Provide one year oversea maintenance support.
2. Lifelong free technical support
leading time: 5 days after order.
Shipping method: by Express or by sea for large amount purchase.
HS CODE: 8514400090
Contact: Tom Wu
Mobile: 0086 13763350483
GUANGZHOU DUROWELDER Limited is founded by WELDING TECHNOLOGIES, USA and serves as its Manufacturing Plant in order to bring latest achievements in welding science and technology to the biggest market of welding equipment in the world-China with a goal to support a demand for high quality equipment in the region and beyond.
Quality oriented design is produced by US trained technicians using state of the art facility in Guangzhou.
Our engineers make sure that all components are designed to the highest quality standards and tested in 3D models prior to release for manufacturing. It eliminates possible mistakes in design, cut the cost and allows us to produce price competitive welding machines with very short lead time.
Our products include full line of standard and custom made resistance welders, various arc welding and high degree automated
Systems, medium frequency and high frequency induction heating equipment, and so on.
Our Company is a certified ISO9001: 2000 facility and holds various quality and safety Certificates, such as National Mandatory Safety System certificate of CCC, European CE and others.
Long list of customers includes such well known companies as Dow Chemical, USA; Eastern Manufacturing, USA; Electric-NPO, Russia; Eupa Co., Taiwan; General Motors North American and European Operations; Honeywell, USA; Harley Davidson Motor Co., USA; Lloyd Industries, USA; Ningbo Fotile Kitchenware Co., Ltd., China; Phar, Mexico; Premium Aviation, USA; Zhongshan Hechang Electric Appliance Co., Ltd., China.
Welding machines manufactured in our facility are exported to many countries in the world (USA, Canada, Mexico, Italy, Spain, South Asia and Middle East countries).
Diversity of welding machines manufactured by GUANGZHOU DUROWELDER Limited with sales and technical support from WELDING TECHNOLOGIES, USA allows us to satisfy demand for dependable and cost effective quality equipment anywhere in the world.
Our Company is consumer oriented therefore we support our products not only with our extended Limited Warranty and detailed operator manuals but also throughout wide net of distributors in various regions. This distributor organization is continuously being expanded meeting demand for excellent customer support to customers who purchase our equipment.
