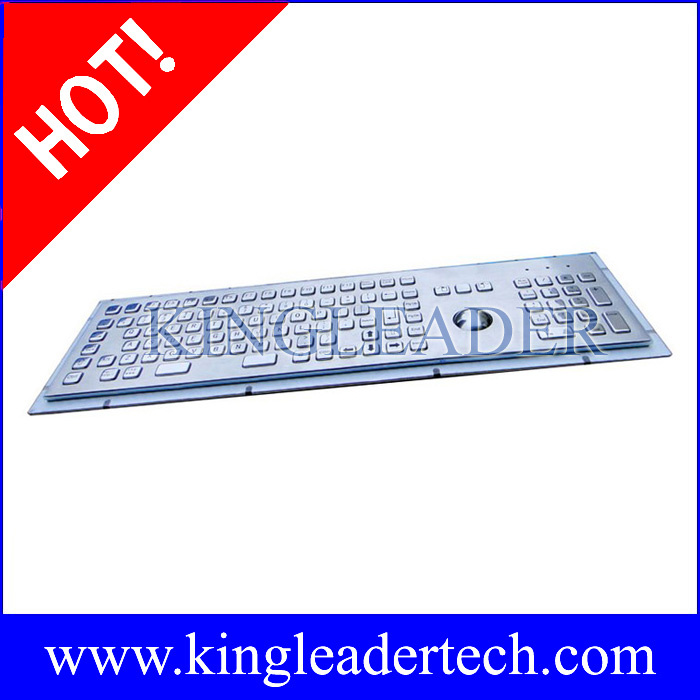

This metal keyboard combines function keys, OPTICAL trackball and numeric keypad in one single unit
Key Features
1) 103 keys including function keys and numeric keys
2) Panelmount from the back
3) With integrated OPTICAL trackball
4) Keys with long travel distance and etched graphics, excellent tactile feedback
5) Designed for harsh environments, ideal for kiosks and other applications in industrial environments
6) Exposed parts are made of stainless steel, high resistance against vandalism
7) Dust-proof and liquid-proof, meet IP65 requirement
8) PS/2 or USB interface for option
9) Customizable layout at customer's request
Specifications
Material:
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Trackball: Stainless steel(Dia: 38mm)
Electrical Data
- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics
- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key: 120± 15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System
- PS2: Win NT4, 98SE, 98ME, 2000, XP, Win7/Linux
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX/Win7/Linux
Weight and Dimension
- Weight: 2.2kg
- Dimension:
Front panel: 478.0 X 135.0 X 32.10mm
Back panel: 502.0 X 159.0 X 49.10mm
