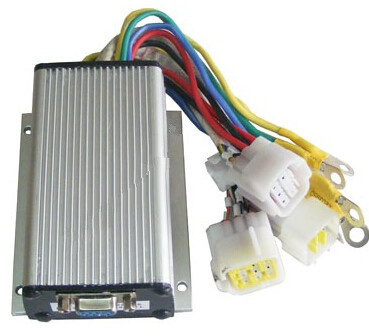

KBS programmable BLDC motor controller provides efficient, smooth and quiet controls for electric motorcycles, golf carts, go-carts, as well as industry motors speed or torque control. Motor speed controller uses high power MOSFET, PWM to achieve efficiency 99% in most cases. Powerful microprocessor brings in comprehensive and precise control to BLDC motor controllers. This programmable brushless motor controller also allows users to set parameters, conduct tests, and obtain diagnostic information quickly and easily.
Provide free male or female connectors matching with KBS controller.
Features:
Intelligence with powerful microprocessor.
Synchronous rectification, ultra low drop, fast PWM to achieve very high efficiency.
Electronic reversing.
Voltage monitoring on 3 motor phases, bus, an
Voltage monitoring on voltage source 12V and 5V.
Current sense on all 3 motor phases.
Current control loop.
Hardware over current protection.
Hardware over voltage protection.
Configurable limit for motor current and battery current.
Support torque mode, speed mode, and balanced mode operation.
Low EMC.
LED fault code.
Battery protection: Current cutback, warning and shutdown at configurable high and low battery voltage.
Rugged aluminum housing for maximum heat dissipation and harsh environment.
Rugged high current terminals, and rugged aviation connectors for small signal.
Thermal protection: Current cut back, warning and shutdown on high temperature.
Configurable 60 degree or 120 degree hall position sensors.
Support motors with any number of poles.
Up to 40, 000 electric RPM standard. Optional high speed 70, 000 ERPM. (Electric RPM = mechanical RPM * motor pole pairs).
Support three modes of regenerative braking: Brake switch regen, release throttle regen, 0-5V analog signal variable regen.
Throttle is detected at power on.
Current multiplication: Take less current from battery, output more current to motor.
Easy installation: 3-wire potentiometer will work.
Standard PC/Laptop computer to do programming. No special tools needed.
User program provided. Easy to use. No cost to customers.
Thermal protection: Current cut back, warning and shutdown on high temperature.
Configurable 60 degree or 120 degree hall position sensors.
Support motors with any number of poles.
Up to 40, 000 electric RPM standard. Optional high speed 70, 000 ERPM. (Electric RPM = mechanical RPM motor pole pairs).
Support three modes of regenerative braking: Brake switch regen, release throttle regen, 0-5V analog signal variable regen.
