Advantages
1: Euro III and EPA III certified Engine: Efficient, Powerful and Reliable performance.
2: Equidistant Articulated Frame: Flexible and Applicable to limited space.
3: Single Hydraulic Joystick (Pilot Control): Energy-efficient, Superior-performance and Easy-operating.
4: Streamlined Composite-material Hood: Broad Astern Vision; Easy-maintenance.
5: Full Hydraulic Drive: Easy Speed-change; High-efficiency; Long service-life
6: Wide-base Tire: Suitable for Bumpy Road;
7: Hydraulic Quick Change System: Varieties of Optional Implements, Snow Blade; Wood Clamp; Grass Fork; Fork; 4in1 Bucket; Bucket;
8. CE certificate.
|
Mode |

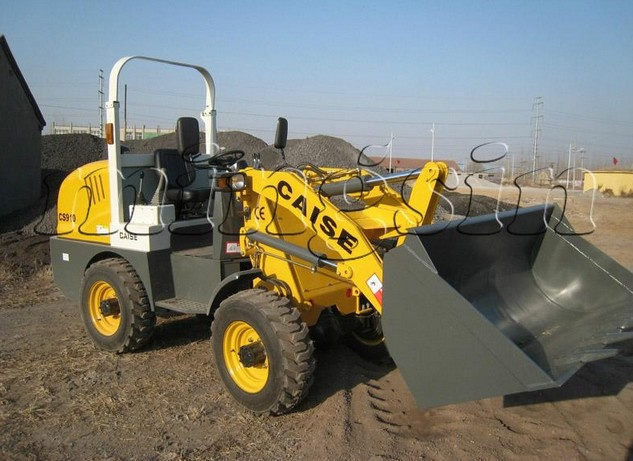

CS910 |
CS912 |
CS915 |
CS916 |
CS920 |
|
Rated loading weight (kg) |
1000 |
1200 |
1500 |
1600 |
2000 |
|
The minimal circle diameter (mm) |
320 |
280 |
290 |
300 |
350 |
|
Rated bucket capacity (CBM) |
0.46 |
0.5 |
0.65 |
|
|
|
Track base (mm) |
1320 |
1400 |
1400 |
|
|
|
Wheel base (mm) |
2040 |
1800 |
1950 |
|
|
|
Min.swerve diameter (mm) |
4200 |
4000 |
4400 |
|
|
|
Min.ground clearance (mm) |
240 |
270 |
270 |
|
|
|
Dump height fully raised (mm) |
2700 |
2580 |
2580 |
|
|
|
Reach fully raised (mm) |
900 |
860 |
860 |
|
|
|
Lifting time (s) |
≤3.5 |
<4.5 |
<4.5 |
<4.5 |
<5 |
|
Driving mode |
Four-wheel full hydraulic drive |
|
Transmission gear box form |
Mechanical transmission with 3 progessive and 1 retreat |
2 gear hydraulic variable speed changes |
Power shift with fixed shaft |
|
Operating weight (kg) |
3020 |
3200 |
3600 |
4870 |
5800 |
|
Dimension (L* W* H) (mm) |
4900 *1685 *2520 |
4600 *1650 *2870 |
4850 *1650 *2800 |
5182 *1910 *2712 |
712 |
|
Engine model |
ZN485Q |
KM496 |
498BG
|
ZH4100K |
14-3 R4105G34 |
|
Rated speeds rpm |
2200 |
2400 |
2650 |
2400 |
2200 |
|
Max.tilt anglle |
35% |
30% |
30% |
30% |
30% |
|
Max.bucket breakout force,lift cylinder (KN) |
32 |
42 |
45 |
51 |
45.4 |
|
