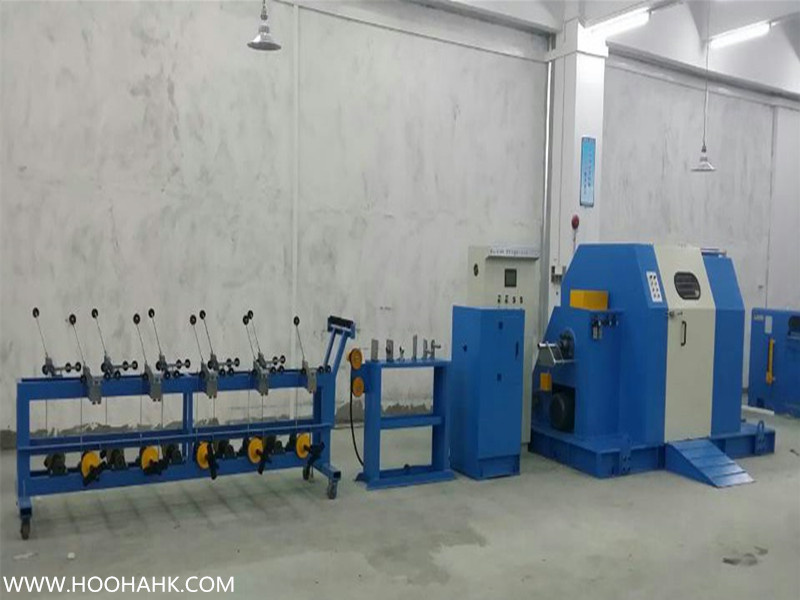

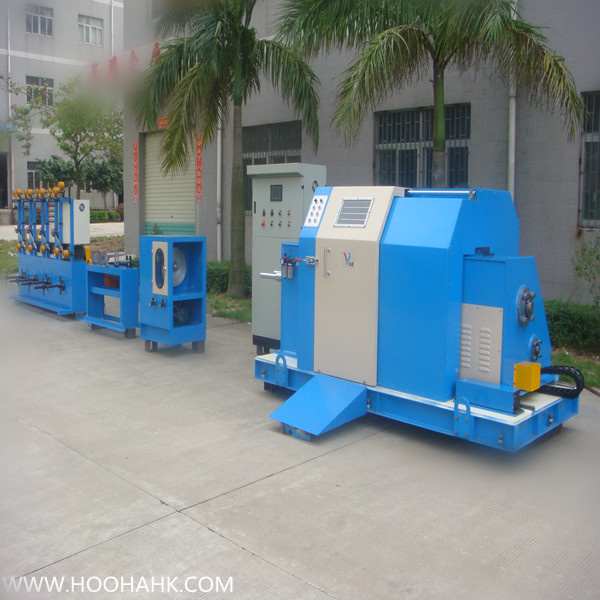

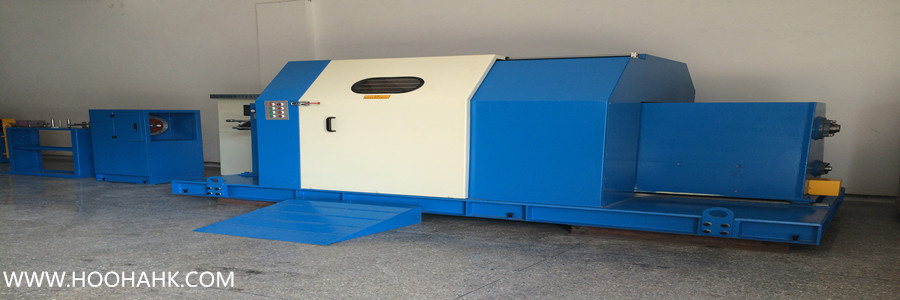

Cantilever Single Twisting Machine
| Price: |
US $ 45900-50000/Set |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
GEM-630/800/1000/1250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Gem-630/800/1000/1250 |
| Twisting Pitch: |
20-300mm |
| Pay-off Bobbin Size: |
500-630mm |
| Traverse Pitch: |
3-20mm |
| Take-up Bobbin Size: |
630-800mm |
| Precision: |
High Precision |
| Certification: |
ISO |
| Demoulding: |
Pull Core |
| Heating System: |
Electric |
| Function: |
High Temperature Resistance |
| Mould Life: |
300,000-1,000,000 shots |
| Automatic Grade: |
Automatic |
| Condition: |
New |
| Customized: |
Customized |
| Warranty: |
12 Months |
Product Description
Product Description
1. Professional and Strong Manufacture and Sells Team:1) Mr xie: Manager and designer who has 10 years designer and cable machine manufacture experience. The cable making technical and machine arrangement suggestions will from him.
2) Mr.Hu:Designer and after service leader who has 11 years drawing and cable machine manufacture experience. The cable machine drawing and after service suggestions will from him.
3) Mr.Zhao: cable making technical engineer who has 15 years cable manufacture and research experience. And do has the working experience for the government cable manufacture. he will give the support for the cable manufacture technical and cable engineer training and new product research.
4) Mr.Zhou:cable manufacture and electrical engineer who has 6 years cable manufacture operation and machine install experience overseas. he will in charge of cable machine overseas after service.
5) Mr.Jack: cable machine sells manager who has 3 years working experience. And do has the 3 times for overseas after service experience. Spoken English is America accent.
2.GEM Spare Parts Brands:Motor: Dongguan Motor , Teco, ABB, SiemensInverter : Japan Yaskawa, Siemens, Taiwan TecoTemperature Control Meter: Japan RKC;Auxiliary Relay: Japan Omron ;Ammeter and Voltmeter: Taiwan Risesun ;Indicator, Switch and Button: Taiwan TEND ;Contactor: Taiwan ShihlinLine Speed Meter: Taiwan FOTEK/YangmingBearing : NSK, SKF
3.Technique Specifications: | Cantilever single twisting machine |
| machinery model | YY-ST-630 | YY-ST-800 | YY-ST-1000 | YY-ST-1250 |
| single wire OD of high-speed cantilever single twisting machine | Φ0.5-Φ3.0mm | Φ0.8-Φ3.0mm | Φ1.0-Φ5.0mm | Φ1.0-Φ5.0mm |
| max strandding OD of high-speed cantilever single twisting machine | Φ12mm | Φ20mm | Φ25mm | Φ30mm |
| traverse pitch of high-speed cantilever single twisting machine | 2-12mm | 3-20mm | 3-30mm | 3-35mm |
| speed of high-speed cantilever single twisting machine | max800rpm | max600rpm | max500rpm | max450rpm |
| twisting pitch of high-speed cantilever single twisting machine | 20-200mm | 20-300mm | 20-400mm | 30-500mm |
| pay-off bobbin size of high-speed cantilever single twisting machine | Φ500mm | Φ500-Φ630mm | Φ500-Φ630mm | Φ500-Φ630mm |
| take-up bobbin size of high-speed cantilever single twisting machine | Φ630mm | Φ800mm | Φ1000mm | Φ1250mm |
4.Afetr service
1).Delivery dates: 45 days2).Payment: TT or L/C3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
5.Contact information:Phone: +8613763134250Http//:www.hoohahk.comhttp://hoohaco.en.made-in-china.com/Add:No. Beice District, Humen Town, Dongguan City, Guangdong Province,China 6.Where are we:Hongkong airport to Humen by boat 2 hoursGuangzhou airport to Humen by car 2 hoursShenzhen airport to Humen by car 1 hourGuangzhou South high speed train station to Humen 20 minutesShenzhen North high speed train station to Humen 20 minutes
GemYoung Wire & Cable Equipment Factory is a comprehensive enterprise integrating the manufacture, sale and export of wire & cable equipment, such as all kinds of cable extrusion lines, cable twisting bunching machines, cable coiling machines, and wire drawing machines. We have rich experience in designing and making wire and cable machinery. Especially, we are good at customized design, technical solution and manufacture.
We have established favorable relationships with many worthy customers around the world. Our customers are from China, North Africa, the Middle East, South Asia and South America. Consequently, our products are popular in domestic and international markets. Our object is "to base upon honesty, sell excellent quality, and serve for customers". We sincerely look forward to establishing cooperation with you in the future.
Main products:
*Electric wire extrusion production lines
*High speed building wire extrusions
*Extrusion for chemical cables
*Extrusion for physical foam coaxial cables
*Teflon extrusion lines
*High speed twist bunching machines
*High speed swivel arm single twisting machines
*HDMI single twist machines
*High speed double twisting machines
*High speed tapping machines
*High speed braiding machines
*Cable shielding machines
*High speed auto coiling machines
*Auto cutting machines
*Wire drawing machine
*Sub (color)-extruders
*Pay off stand series
