Cantilever Type Automatic Pipe Welding Machine
It has features as following:
l Three models available ( 8"type, 16" type,24"type);
l Suitable for C.S./S.S./Alloy S., etc.;
l Suitable for flange, tee, reducer to pipe and special T-joint welding;
l Suitable for short pipe welding;
l TIG/MIG/SAW are optional;
l PLC system control & WPS programmed;
l Higher welding quality and efficiency, for example, for a 24" type automatic pipe welding machine, one welding head it can reach 165-187.5DI/day productivity, including handling, presetting time.
Technical Date:
| 1 | Product Name | Cantilever Type Automatic Pipe Welding Machine |
| 2 | Model | AUTO CWM0904-B |
| 3 | Input Voltage | 3pH AC380/400V,50/60Hz |
| 4 | Input Power | 21 kW |
| 5 | Boom Lifting Stroke | 900mm |
| 6 | Boom Forward & Backward stroke | 420mm/min |
| 7 | Boom Forward & Backward Speed | 400mm/min |
| 8 | Website | www.autowelds,COM |

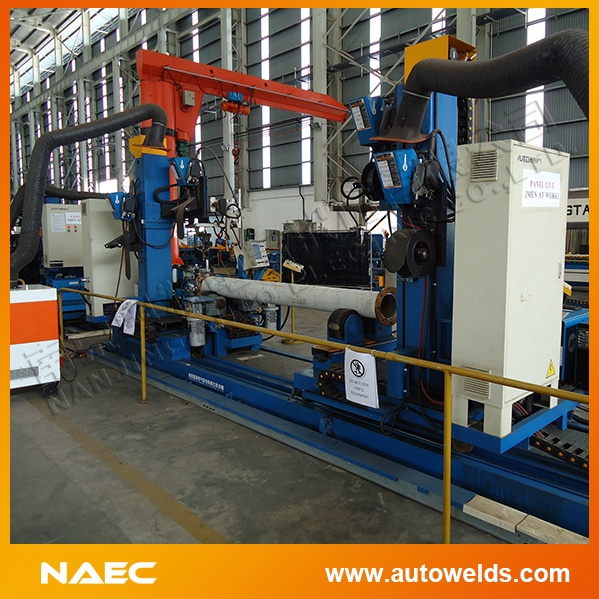

AUTO Cantilever Type Automatic Welding Machine is special for short pipe to fittings welding, or fittings to fittings welding. It includes cantilever type automatic welding machine, Chuck-type Positioner, pipe supporter and Rail Skids. The cantilever Type Automatic Welding Machine can move along the guide rail to suitable for different welding joint position.
There are more than 40 sets of WPS program stored in the control system. Through the touch screen the operator just need to select the welding procedure to be used for various diameters of pipes with different wall thickness. And it can use T.I.G, M.I.G, or S.A.W welding process for joint automatic root pass, fill and cap pass welding.
It is widely used in the industry of oil and gas, refinery, petro-chemical, shipping building, offshore, power plant, nuclear plant, etc.
Nanjing Auto Electric Co., Ltd (NAEC) was established in 2001, taking promoting "Lean Fabrication to Global Energy Engineering Industry" as its mission, NAEC's core business is to provide Lean-fabrication One-stop Solution to energy engineering contractors and fabricators. With advanced innovation ability and continuous integration of new technology & processes, NAEC's solution ensure its users high quality and efficient fabrication, and make itself become worldwide clients' most preferred partner.
Our Strategic Clients are
L EPC companies, Contractors or Fabricators in Onshore Oil & Gas Exploration, Transportation, Storage, Refinery & Chemical
L EPC companies, Contractors, Fabricators or Equipment Manufacturers in Offshore Oil & Gas Exploration, Treatment, Transportation & Storage
L EPC companies, Contractors or Fabricators in Nuclear Power, Wind Power, or Thermal Power
L Various Energy Engineering Equipment Manufacturers
We provide Lean-fabrication One-stop Solution for Energy Engineering EPC Companies/ Contractors/ Fabricators, Based on Following Systems:
L NAEC Lean-fabrication Mode
L NAEC Lean-fabrication Management System
L NAEC Lean-fabrication Production System
NAEC Lean-fabrication One-stop Solution can help engineering fabrication operators to solve project problems. It can organize fabrication production and ensure the final delivery in good quality and on time.
