Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

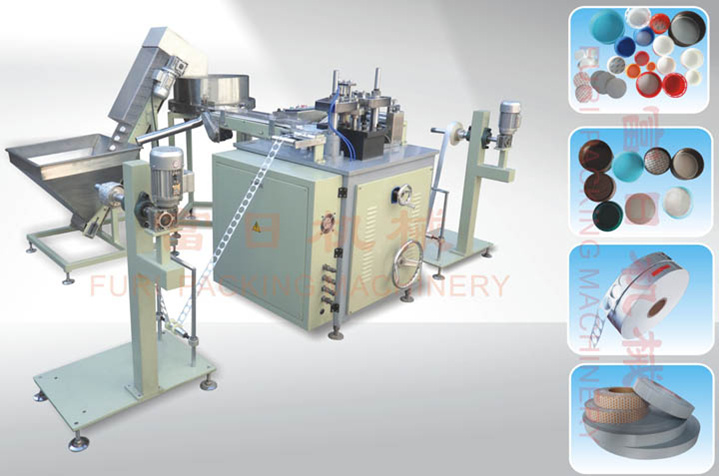

FRTB-SD2 Multifunctional Cap Lining punching & Inserting Machine/ Cap Liner cutting and stuffing Machine
1. Scope of Application:
This machine is widely used in the industry of Bottle Cap, Liner, Medicine, Foodstuff, Household Chemicals, Package, etc. It is an ideal inserting machine.
2. Features:
Production Flow Chart:
Sorting cap and delivering cap and liner blanking and inserting and delivering cap
1) This machine replaces the handwork. It automatically inserts the liner into the bottle cap, and can raise work efficiency greatly.
2) Reasonable Liner Sealing, Fast speed, High efficiency, Safe and Sanitary product.
3) This machine is specially suitable for the occasion which has strict and severe sanitary requirements. It can avoid secondary pollution on the materials, and thus it can omit the sterilizing techniques.
4) Sorting Cap System attaches the function of cap elimination, in order to make sure every finished bottle cap upward.
5) It has automatic counter inside, and can raise the working efficiency afterwards.
6) The raw materials of liner adopts coil stock, and the blanking and inserting are in process at one time, which can raise the working efficiency.
7) It adopts mechanical drive deliver position mechanism to make the machine work smoothly. It is suitable for various specifications of bottle caps and aluminum foil.
8) It adopts PLC controller, and has the alarm while out of liner and bottle cap. The electric control system adopts frequency conversion techniques. It has the advantages of free setting, wide application, easy operation, stable working, convenient cleaning and maintenance, durable in use, etc.
9) Our fully automatic packing machine is in strict accordance with National GMP Standard and process requirements.
3. Structure of equipment:
1) Automatic sorting cap mechanism: It puts the messy bottle caps in order, and makes all caps upwards.
2) Bottle cap delivering mechanism: It delivers the ready bottle cap into the liner inserting mechanism in order and correct way.
3) Liner blanking mechanisms: It puts the coil stock liner into blanking.
4) Liner inserting mechanism: It inserts the liner to the cap to finish liner inserting procedure.
4. Technical Parameters:
Productivity 60-100 bottles/min.
Voltage 220 V
Power 2.2 KW
Dimension L× W× H 1200× 600× 1500(mm)
N. W. 430(KGS)
Located at the beautiful coastal area of East China Sea, Ruian City Furi Packaging Machinery Co., Ltd. is focused on the development and manufacture of automatic cap equipment for the industry, as well as system integration in the production line around the automatic cap process. Through more than 10 years of constant innovation and research, Furi cap machine has been developed from the initial several types to current 9 series, more than 20 types. Our main products include automatic packing equipment such as 5 gallon cap labeling machine, cap wadding machine, cap lining machine, cap closing machine, Cap assembly machine, cap machine.
Series of cap machines of Furi Packing are used widely in these industries of daily chemical, foodstuff, medicine, and stationery. We are devoting ourselves to the supply of high performance to price ratio and high automatic packing equipments for the industries of daily chemical, medicine, foodstuff, and stationery. Our company has been adopting the advanced processing technology to control the quality strictly and operate every step perfectly. We also adopt the system management of ISO9001, and manufacture according to the standards of GMP and CE.
Here at Furi, our vision is to build the leading name of automatic cap equipment of China with technology, creativity and enthusiasm. We will further develop Furi to a world-class cap equipment name through close cooperation with our international partners. While compete in the market of vehemence, our company always insists on "quantity first, customer highest" in order to conduct the aim, provide the more perfect and better service for the domestic and international customers. We will make a win-win situation for both customers and us.
Our company owns a factory in Kunshan, and has established offices in Shanghai, Tianjin, Qingdao, Dongguan plus a distributor network in other major cities throughout the country, providing thorough pre-sales and after-sales services to our customers. Our sales and service engineers and all well experienced veterans of the industry share the common motto of "customers first".
