Product Specifications
| Prod Model: |
Endmill |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
Tungsten Carbide/Solid Carbide |
| Blade: |
3 |
| Helix Angle: |
35 Degree |
| Type: |
Cutter |
| Work Type: |
Cut Off |
Product Description

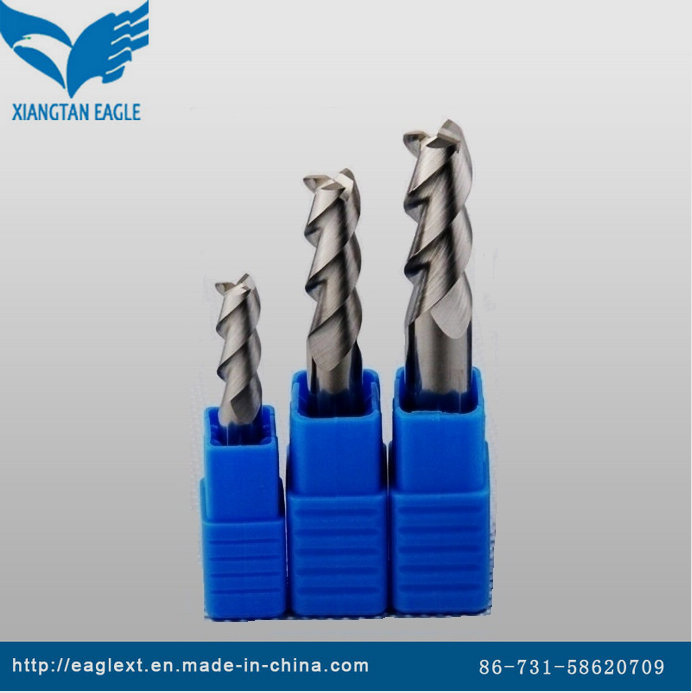

Milling cutter for Aluminium and Titanium
Materials: Tungsten Steel
Helix Angle: 35 °
Specification:
Diameter of Milling cutter: 3mm
Shank Diameter: 4mm
Flute Length: 8mm
Blade: 3 and 2
Overall Length: 50mm
Main Features: High abrasion performance and intensity, can be directly to process from rough machining to fine machining below 50 degrees, so that reduce times of tool change, increasing the machine actuating rate and save the mold production schedule. The 3 blade flat aluminium alloy cutter with unique groove and grinding, has many advantages, such as high conductivity crumbs, non-stick debris, high feed, long service life and high surface finishment after processing and so on.
|
SIZE |
WORK MATERIAL HRC |
|
FLUTE NUMBER |
CUTSIDE DIAMETER |
FLUTE LENGTH |
SHANK DIAMETER |
OVERALL LENGTH |
|
2 or 3 |
1 |
3 |
4 |
50 |
45° & 55° |
|
2 or 3 |
1.5 |
4.5 |
4 |
50 |
45° & 55° |
|
2 or 3 |
2 |
6 |
4 |
50 |
45° & 55° |
|
2 or 3 |
2.5 |
7 |
4 |
50 |
45° & 55° |
|
2 or 3 |
3 |
8 |
4 |
50 |
45° & 55° |
|
2 or 3 |
4 |
11 |
4 |
50 |
45° & 55° |
|
2 or 3 |
5 |
12 |
6 |
50 |
45° & 55° |
|
2 or 3 |
6 |
15 |
6 |
50 |
45° & 55° |
|
2 or 3 |
7 |
18 |
8 |
60 |
45° & 55° |
|
2 or 3 |
8 |
20 |
8 |
60 |
45° & 55° |
|
2 or 3 |
9 |
23 |
10 |
75 |
45° & 55° |
|
2 or 3 |
10 |
25 |
10 |
75 |
45° & 55° |
|
2 or 3 |
11 |
28 |
12 |
75 |
45° & 55° |
|
2 or 3 |
12 |
30 |
12 |
75 |
45° & 55° |
|
2 or 3 |
16 |
40 |
16 |
100 |
45° & 55° |
|
2 or 3 |
20 |
40 |
20 |
100 |
45° & 55° |
