Carton Compression Testing Machine (Xm- Ptb001)
| Price: |
US $ 3688-5688/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
XM- PTB001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Material Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Oil Cylinder Position: |
No |
Product Description

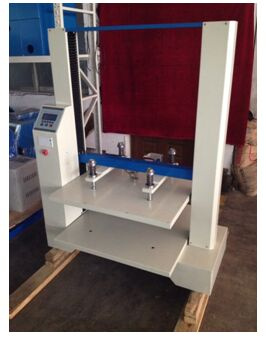

Carton compression testing machine
XM- PTB001
Product Description: is the basic instrument of corrugated carton compressive strength performance test (i.e.,packaging test equipment), compressive strength test, standard test and stacking strength test is applicable to all types of corrugated box.
Product features:
1, carton compression testing machine with high precision, automatic test, the operation is simple and convenient, stable and reliable performance (with built-in safety box compression strength, stacking the total mass of the formula, convenient user computing carton comprehensive performance).
2, three kinds of work mode:
Strength tests: the maximum resistance to stress and displacement can be measured box;
The fixed value test: to detect the overall performance according to the pressure and displacement setting;
Stacking test: according to the national standard requirements, can be carried out in 12 hours, 24 hours of different stacking test conditions.
Meet the standard:
GB/T 4857.4-92 packaging - transport packages - pressure test method
GB/T 4857.3-92 packaging - transport packages static load test method for stacking
Technical parameters:
Test of 600 * 600 * 800 mm space (other optional specifications 800X800; 1000X1000; 1200x1200; 1500x1500)
The capacity of 0~500 kg, 1000 kg, 2000kg optional
Control method of microcomputer control
Unit Kgf, G, N, kn, LBF (switchable)
Decomposition of degree 1/250000
Precision is ≤± 1%
A resolution of 1 N
The compression speed standard 10 ± 3 mm/min
A motor driving mechanism driven arc ball screw
Print function number, peak, average, memory
Stop method of upper and lower limit set safety, emergency stop button, the program of power and time setting, specimen damage sensing
The printer thermal printer, only thermal printing paper, convenient replacement, long service life, high speed silent print
Machine weight (about 580 KG)
Electric source 1 AC 220V 50/60 Hz
