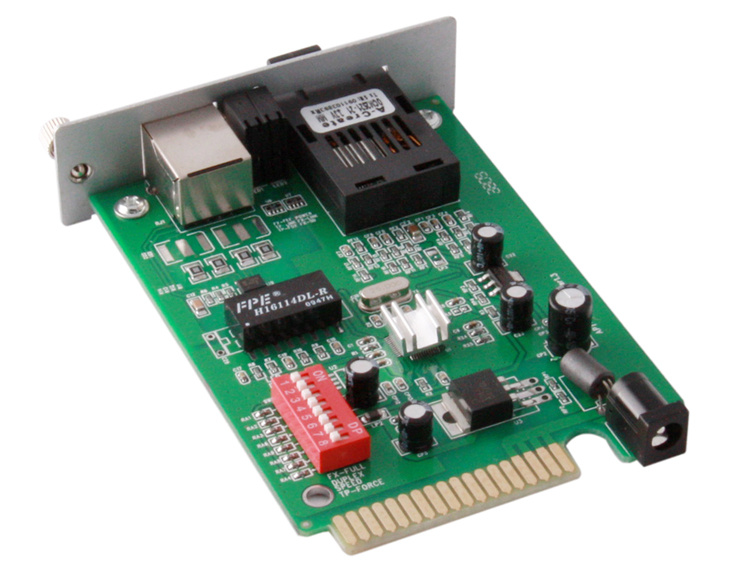

APT-103S36CC Cassette Media Converter

IEEE802.3, IEEE802.3u, 10BaseTX, 100Base-FX standard.
APT-103S33CC is a singlemode 100M dual-fiber media converter module. Dual-fiber dual-direction media converter have one RJ-45 interface and one SC single-fiber interface, separate for twisted-pair and fiber to connecting. Single-fiber media converter have 6 LED indicator: POWER, TX100, FX100, FX Link/ACT, TX Link/ACT, FDX.

Technical parameter
1. According with IEEE802.3 IEEE802.3u IEEE802.3X IEEE802.1Q 100Base-TX 100Base-TX 100Base-FX standard.
2. Afford TCP/IP, PPPOE, DHCP, ICMP, NAT protocol.
3. Flow control: Full-duplex adopt IEEE802.3x, half-duplex adopt Backpressure standard.
4. Electric port support auto-negotiation function, autoconditioning transmit mode and transmit speed.
5. Port supply Auto-MDI/MDIX automatic reverse.
6. Support storage transmit mode.

7. Support electric port's 10M 100M mode and self-adapt mode to switch.
8. Afford the state indicator, external power(output 5V~50Hz 1A)
9. Interface: Electric port: RJ-45 fiber port: SC
10. Twisted-pair: Cat5 Cat6
11. Singlemode fiber, 8/125, 8.3/125, 9/125um
12. Working temperature: 0~50 degree
13. Storage temperature: -20~70 degree
14. Humidity: 5%~90%(noncondensing)
15. Size: 115*77*26mm(L*W*H)

Specification
Connect type: SC
Fiber type: Singlemode
Wavelength: 1310nm
Typical distance: 60KM
Min TX PWR: -8.0dbm
Max TX PWR: 0.0dbm
Sensitivity: -32.0dbm
Link Budget: 24.0dbm
Prod Model: APT-103S36CC
