Standard CAT5 LAN cable
We can produce network cable as per customer's request.
Frequency MHz | Impedance ohm | RL | Attenuation dB/100m | Next Db/100m | ELFEXT dB/100m | PS NEXT Db/100m | PS FLFEXT Db/100M | Propagation speed m/s |
db |
1 | 100±15 | 20 | 2 | 65.3 | 63.8 | 62.3 | 60.8 | 0.65C |
4 | 23 | 4.1 | 56.3 | 51.7 | 53.3 | 48.7 |
8 | 25 | 5.8 | 51.8 | 45.7 | 48.8 | 42.7 |
10 | 25 | 6.5 | 50.3 | 43.8 | 47.3 | 40.8 |
16 | 25 | 8.2 | 47.3 | 39.7 | 44.2 | 36.7 |
20 | 25 | 9.3 | 48.5 | 37.7 | 42.8 | 34.7 |
25 | 24 | 10.4 | 44.3 | 35.8 | 41.3 | 32.8 |
31.25 | 24 | 11.6 | 42.9 | 33.9 | 39.9 | 30.9 |
62.5 | 22 | 17 | 38.4 | 27.8 | 35.4 | 24.8 |
100 | 20 | 22 | 35.3 | 23.8 | 32.3 | 20.8 |
155 | 10±18 | 19 | 28.1 | 33 | 20 | 29 | 17 |
200 | 19 | 32.4 | 31 | 18 | 28 | 15 |
310 | 100±22 | 18 | 41.8 | 28 | 14 | 25 | 11 |
350 | 17 | 44.9 | 27 | 13 | 24 | 10 |
|
|
LAN cable/Network Cable/Cable/LAN Cable (CAT5 CAT5E CAT6 UTP/FTP/SFTP) |
Communication Cable and Wires |
|
CHARACTERISTICS |

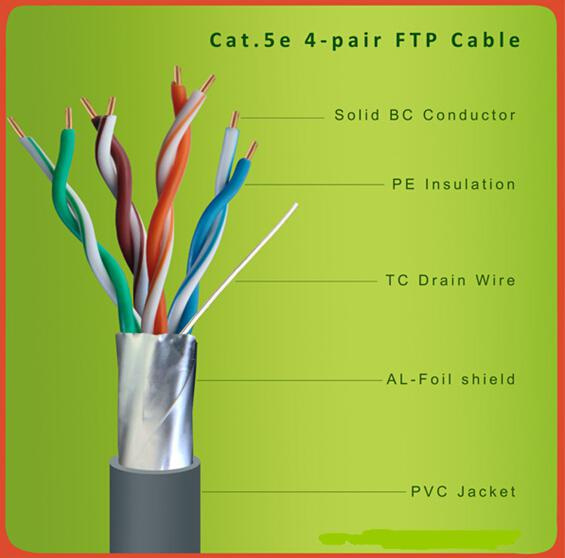

1. Cable Inner material: OFC/PURE COPPER/CCA/CCA/AL/Aluminum Foil Shielded twisted pairs, FRPE cable |
2. LAN cableConductor: 24AWG/26/28(0.57mm) |
3. Insulation: PE |
4. Jacket: PVC FT4 |
5. Certification: UL. CE. RoHS Compliant |
6. Compliance: ETL verified ANSI TIA/EIA568-2, UL, Subject 444, (UL)c(UL) type CMR/CMG, Type CM/CMH. NEC Srticle 800Type CMP or CM. ISO/IEC 11801. RoHS Compliant. |
7. Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment |
8. Remark: 250HMZ 550MHz ATM 155Mbps, 100Mbps TPDDI, Fast Ethernet etc, Cat3, cat5e, CAT6 are avilable, and cat5e and CAT6 are already. |
