Product Specifications
Product Description
A shielded version is available to maximum protection from EMI/RFI interference by utilizing fully shielded jacks and connecting hardware, you can reduce the effects of interference on the network data transmissions .
The compact size provides high-density connectivity in the work area and telecommunications room .
Features and benefits
- Available in CAT6, T568A/B wiring schemes, meet or exceed TIA/EIA CAT6 requirements
- Shielding protects against EMI/RFI interference
- Compact jack design, 8 positions and 8 conductors
- Contact: Phosphor bronze, phosphor bronze with 6 to 50μ" gold plate
- Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
- Easy to be terminated, extremely low attenuation loss and high return loss
- High reliability and superior performance
|
Part number |
Description |
Carton |
Carton measurement |
Weight |
|
JKG06 - SC6 |

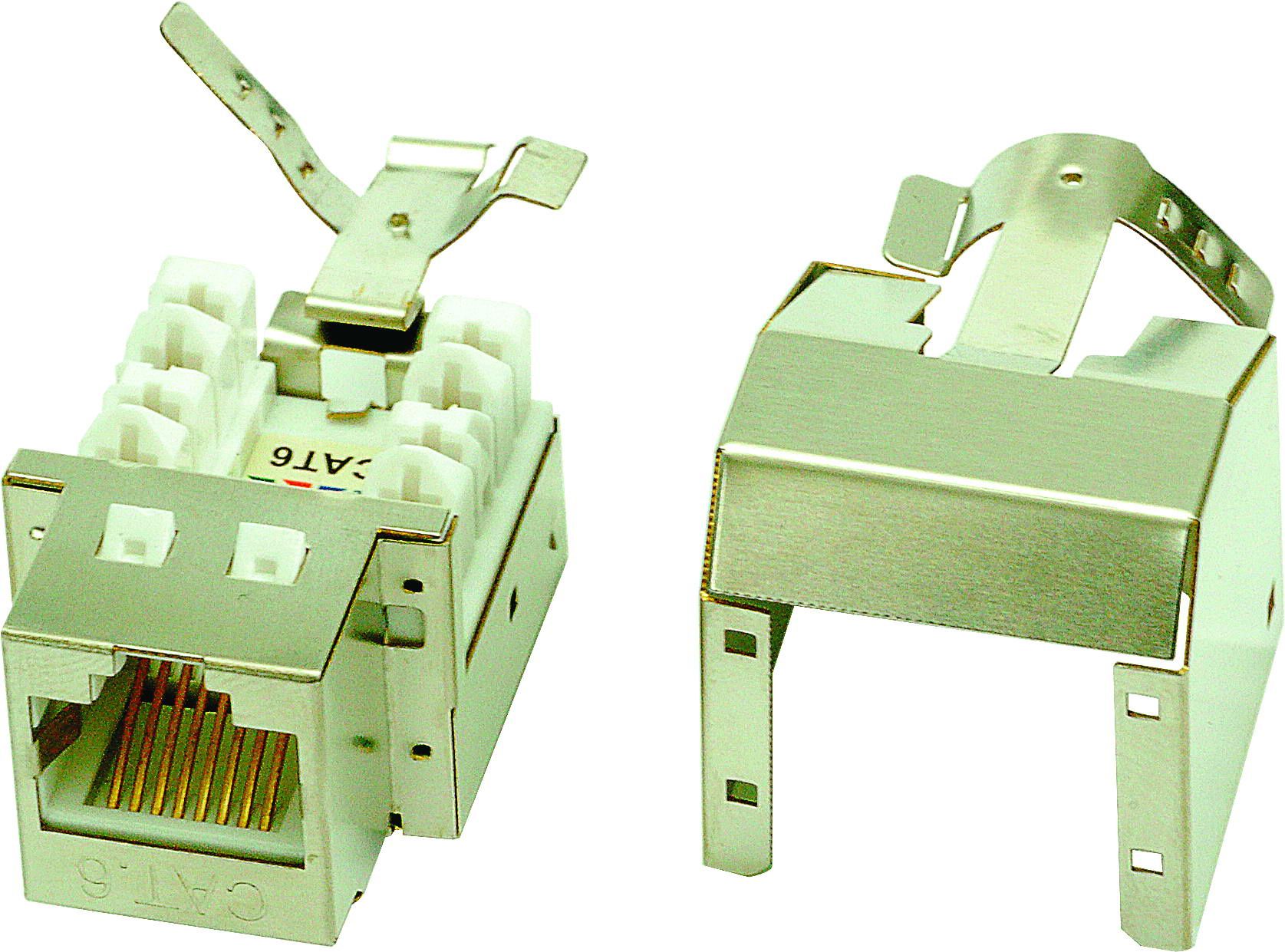

Cat 6 FTP keystone jack,
180° |
250 pcs |
53.5cm x 31.3cm x 23.4cm |
4.2 KG |
JKG06 - SC6 -
P |
Cat 6 FTP keystone jack
with cover, 180° |
250 pcs |
53.5cm x 31.3cm x 23.4cm |
4.2 KG |
|
JKG07 - SC6 |
Cat 6 FTP keystone jack,
180° |
250 pcs |
53.5cm x 31.3cm x 23.4cm |
4.2 KG |
|
JKB06 - SC6 |
Cat 6 FTP keystone jack,
90° |
250 pcs |
53.5cm x 31.3cm x 23.4cm |
4.2 KG |
