Product Specifications
| Prod Model: |
L20301 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
PC |
| Installation Mode: |
Rotary Jack |
| Type: |
Multi-Tube Jack |
| Application: |
Cable |
Product Description

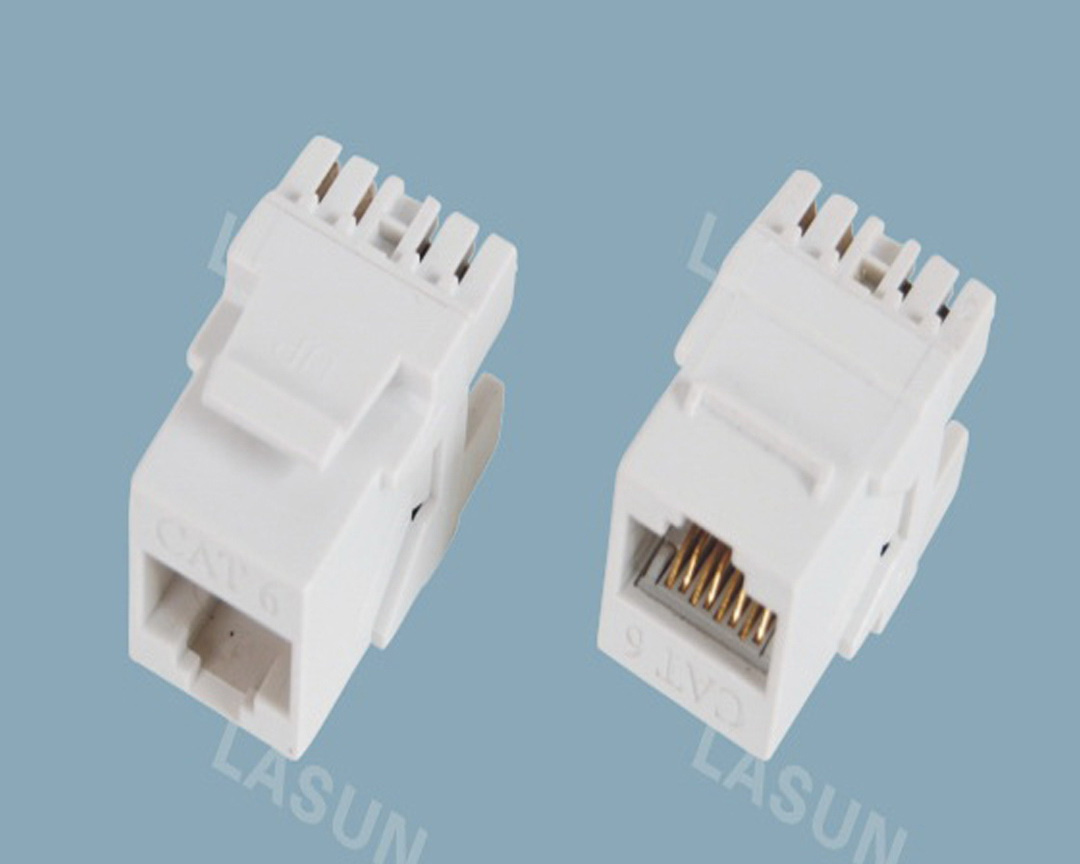

CAT6 Keystone Jack (2207) / CAT6 Connector/Keystone Jack/Network Connector
Industry Standard
UL, C(UL) listed
Meets FCC parts 68
ANS/TIA/EIA-568B
ISO/IEC11801
ETL verified EIA/TIA T568B; CAT6 Channel Link
Transmission Performance
Physicals:
IDC connector accept 22-26 AWG solid Wire
Jack wiring: 50-micron inch gold plate over 100-micron inch nickel
Housing: High impact flame retardant Plastic UL94V-0 Rated
IDC connector is tooless, don't need any punch down and krone tool
Mechanical:
Plug Insertion life: 750 cycle min
Plug retention force: 30 lbs min
Electrical:
Current rating: 1.5AMPS
Insulation resistance: 500 Mega-ohms Min
Contact resistance: 20 millin-ohms max
DC resistance: 0.1 ohms max
Data transmission rates up to 250 Mbps.
