Catalytic Substrate Honeycomb Ceramic Catalyst Substrate

Name: Catalytic Substrate Honeycomb Ceramic Catalyst Substrate
Brand: china-manufacturer-directory.com
SKU: 729695815
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	US $ 15.5-16.5piece (depend on size)
Trade Terms:	FOB,CFR,CIF
Min Order:	10piece (depend on size)
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

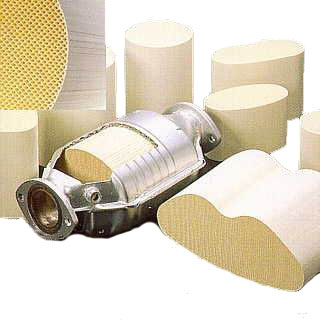

Honeycomb ceramic substrate is made of cordierite, and it is used for car catalytic converter and motorcycle. The cells density can be 100 cpsi, 300 cpsi, 400 cpsi or 600 cpsi. The usual CPSI for honeycomb ceramic substrate is 400. The shape of honeycomb ceramic is round, racetrack, ellipse and other special shape according to the customer's requirement in order to meet the different cars models requirements. High specific surface area, low pressure drop, rapid light-off time and reliable & durable performance are achieved through high cell density of 400, 500 and 600 cpsi. Our typical substrate are available in a variety of sizes with the different shapes, such as round, elliptical, race track and so on. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals.

Features:
*the wall thickness
*low pressure drop
*high surface area
*height compressive strength
*low thermal expansion coefficient

Composition	Value (%)
SiO 2	39-44
Al 2 O 3	47-52
MgO	5-7
Fe 2 O 3	<1
TiO 2	<1.9
K 2 O+Na 2 O +CaO	<2

Index	Unit	Value
Gross Density	g/cm 3	1.7~2
Average Linear Expansion(20-1000 ° C)	10 -6 /k -1	2-4
Specific Heat Capacity	KJ/Kg	850~1000
Heat Conductivity	W/MK	1.5~2.5
Soft Temp.	° C	>1400
Maximum Application Temp.	° C	1350

Shape	Hole density (hole/in 2 )	Size (mm)	Size (inch)
Round	300 CPSI	Φ 101.6 x152.4	4 × 6
Round	300 CPSI	Φ 118.4 x100	4.66 × 3.94
Round	300 CPSI	Φ 118.4 x152.4	4.66 × 6
Round	300 CPSI	Φ 150 x100	5.9 × 3.94
Round	300 CPSI	Φ 170 x100	6.69 × 3.94
Round	300 CPSI	Φ 190 x100	7.48 × 3.94
Round	300 CPSI	Φ 210 x130	8.26 × 5.12
Round	300 CPSI	Φ 240 x76.2	9.45 × 3
Round	300 CPSI	Φ 240 x100	9.45 × 3.94
Oval	300 CPSI	Φ 120.6 x 80 x 152.4	4.75 × 3.15 × 6
Oval	300 CPSI	Φ 144.8 x 81.3 x 152.4	5.7 × 3.2 × 6
Oval	300 CPSI	Φ 169.7 x 80.8 x 115	6.68 × 3.18 × 4.52
Round	400 CPSI	Φ 150 x100	5.9 × 3.94
Round	400 CPSI	Φ 144 x 152.4	5.66 × 6
Round	400 CPSI	Φ 118.4 x 152.4	4.66 × 6
Round	400 CPSI	Φ 115.4 x 152.4	4.54 × 6
Round	400 CPSI	Φ 106 x 100	4.17 × 3.94
Round	400 CPSI	Φ 103 x 100	4.05 × 3.94
Round	400 CPSI	Φ 101.6 x 152.4	4 × 6
Round	400 CPSI	Φ 100 x 100	3.94 × 3.94
Round	400 CPSI	Φ 93 x 152.4	3.66 × 6
Round	400 CPSI	Φ 83 x 152.4	3.26 × 6
Round	400 CPSI	Φ 80 x 100	3.15 × 3.94
Round	400 CPSI	Φ 76.2 × 50	3 × 1.97
Round	400 CPSI	Φ 60 × 85	2.36 × 3.34
Oval	400 CPSI	Φ 169 x 85.7 x 115	6.65 x 3.37 x 4.52
Oval	400 CPSI	Φ 169 x 80.8 x 115	6.65 x 3.18 x 4.52
Oval	400 CPSI	Φ 148 x 84 x 152.4	5.82 x 3.3 x 6
Oval	400 CPSI	Φ 144.8 x 81.3 x 152.4	5.7 x 3.2 x 6
Oval	400 CPSI	Φ 127 x 63.5 x 152.4	5 x 2.5 x 6
Oval	400 CPSI	Φ 93 x 61 x 90	3.66 x2.4 x 3.54
Oval	400 CPSI	Φ 120.6 x 80 x 152.4	4.75 x 3.15 x6
Oval	400 CPSI	Φ 143 x 98 x 152.4	5.63 x 3.86 x 6
Oval	400 CPSI	Φ 147 x 95 x 152.4	5.78 x 3.74 x 6
Oval	400 CPSI	Φ 177.8 x 114.3 x 170	7 x 4.5 x 6.7

Prod Model:	CHS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cordierite
Specification:	Diameter<120mm/Diameter<200mm,etc
Cell:	100-600cpsi
Application:	as Catalyst Used in Automobile/Motorcycle
Certification:	ISO9001
Component:	Catalytic Converter
Discharge Standard:	Euro IV
Body Material:	Ceramic
