1. Animal weighing scale
2. Max capacities: 5t
3. Paltform size: 1.2m*1.5m

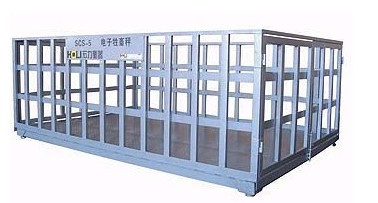

Animal Weighing Scales
---Capacity: 1~5t
---Stainless Steel Construction
---Uses in weighing animals, easily to wash in structure
---Accuracy class: Grade III
---Platform size and capacity is optional
---Rail structure, the doors way and height is optional according to different animals
|
model |
Specification(m) |
Max capacity(t) |
Division(kg) |
|
SCS-PS-1t |
2.0× 2.0 |
1 |
0.5 |
|
SCS-PS-2t |
2.0× 2.0 |
2 |
1 |
|
SCS-PS-3t |
2.0× 4.0 |
3 |
1 |
|
3.0× 3.0 |
3 |
1 |
|
SCS-PS-5t |
2.0× 4.0 |
5 |
2 |
|
3.0× 3.0 |
5 |
2 |
|
3.0× 5.0 |
5 |
2 |
|
The countertops specifications and maximum weighing in this series can be customized according to user requirements |
|
Structure |
Technical Specifications |
|
Special fences and bar the door |
Accuracy class: OIML III |
|
Slip tread steel countertops |
Weighing range: 1~5t |
|
Flushing structural design of the weighing platform |
Safe overload: 125%F. S |
|
Weighing platform with borders, without borders optional |
Sensor working temperature: -30~+70 |
|
Pit mounted |
Instrument working temperature: -10~+40 |
|
Digital display weighing data |
Power supply voltage: 220VAC/50Hz |
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports. And we have establish business relationship with many foreign countries, example, Turkey, Egypt, Russia and so on.
We comply with OIML and ISO9001: 2000 standards.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to building successful business relationships with you around the world in the near future.
