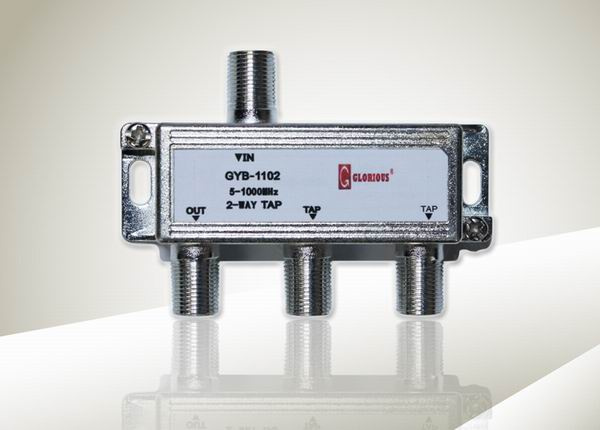

2-Way CATV TAP GYB-1102
Description of tap:
Zinc die-cast housing, tin-plated
Screening factor: 5-1000MHz≥ 100dB
Easy installation, capable of passing cable thru housing bottom
Low insertion loss, high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports of the tap are F-(f)connector, 75 Ohm
Parameter |
Frequency (MHz) |
Nominal value (dB) |
|
-8 |
-10 |
-12 |
-14 |
-16 |
-18 |
-20 |
-22 |
-24 |
-26 |
|
Tap Loss Tolerance(dB) |
5~50 |
± 1.0 |
|
50~862 |
± 1.0 |
|
862~1000 |
± 1.5 |
Insertion Loss(dB) |
5~50 |
≤ 3.5 |
≤ 2.5 |
≤ 2.0 |
≤ 1.5 |
≤ 1.4 |
≤ 1.2 |
≤ 0.8 |
≤ 0.8 |
≤ 0.8 |
≤ 0.8 |
|
50~862 |
≤ 3.8 |
≤ 2.8 |
≤ 2.3 |
≤ 1.8 |
≤ 1.5 |
≤ 1.3 |
≤ 1.0 |
≤ 1.0 |
≤ 1.0 |
≤ 1.0 |
|
862~1000 |
≤ 4.0 |
≤ 3.2 |
≤ 2.7 |
≤ 2.3 |
≤ 1.8 |
≤ 1.6 |
≤ 1.5 |
≤ 1.2 |
≤ 1.2 |
≤ 1.2 |
Reverse isolation(dB) |
5~50 |
≥ 23 |
≥ 23 |
≥ 25 |
≥ 27 |
≥ 29 |
≥ 30 |
≥ 30 |
≥ 30 |
≥ 30 |
≥ 30 |
|
50~862 |
≥ 23 |
≥ 23 |
≥ 23 |
≥ 25 |
≥ 27 |
≥ 28 |
≥ 28 |
≥ 28 |
≥ 28 |
≥ 28 |
|
862~1000 |
≥ 21 |
≥ 21 |
≥ 21 |
≥ 23 |
≥ 25 |
≥ 25 |
≥ 25 |
≥ 25 |
≥ 25 |
≥ 25 |
Mutual Isolation(dB) |
5~50 |
≥ 22 |
|
50~550 |
≥ 30 |
|
550~862 |
≥ 25 |
|
862~1000 |
≥ 22 |
IN/OUT
Return Loss (dB) |
5~50 |
≥ 16 |
|
50~862 |
≥ 18 |
|
862~1000 |
≥ 16 |
|
TAP OUT |
5~50 |
≥ 18 |
|
Return Loss |
50~862 |
≥ 20 |
|
(dB) |
862~1000 |
≥ 18 |
|
Shielding attenuation(dB) |
5~1000 |
≥ 100(Tin seal)
|
|
Connector |
F |
