CCS Approved Blue UHMWPE Winch Rope
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Roll |
| Pay Type: |
L/C,T/T |
Product DescriptionItem Name:UHMWPE Rope
1. Material: UHMWPE
2. Dia: 6mm--128mm
3. Certificates: CCS, ABS, LR, NK, BV, GL, RS,DNV
4. Advantages: High strength, light weight, easy operation, soft and wearing resisting.
5. Use: Widely used in ship towing, sea aid, heavy-duty hoisting, national defense warship and vessel.Product Parameters| Specification | Weight | Breaking
Strength |
| Dia.(mm) | Cir.(mm) | kg/220m | kN |
| 6 | 3/4 | 5.7 | 29.1 |
| 8 | 1 | 9.3 | 41.7 |
| 10 | 1-1/4 | 14.7 | 70.5 |
| 12 | 1-1/2 | 21.0 | 102.0 |
| 14 | 1-3/4 | 29.0 | 137.0 |
| 16 | 2 | 38.0 | 178.0 |
| 18 | 2-1/4 | 48.0 | 214.0 |
| 20 | 2-1/2 | 58.0 | 258.0 |
| 24 | 3 | 87.0 | 370.0 |
| 28 | 3-1/2 | 116.0 | 492.0 |
| 32 | 4 | 148.0 | 624.0 |
| 36 | 4-1/2 | 182.0 | 812.0 |
| 40 | 5 | 206.0 | 924.0 |
| 44 | 5-1/2 | 227.0 | 1021.0 |
| 48 | 6 | 270.0 | 1246.0 |
| 56 | 7 | 368.0 | 1760.0 |
| 64 | 8 | 480.0 | 2358.0 |
| 72 | 9 | 617.0 | 2875.0 |
| 80 | 10 | 760.0 | 3425.0 |
| 88 | 11 | 1060.0 | 4230.0 |
| 96 | 12 | 1350.0 | 5035.0 |
| 110 | 13-3/4 | 1880.0 | 7865.0 |

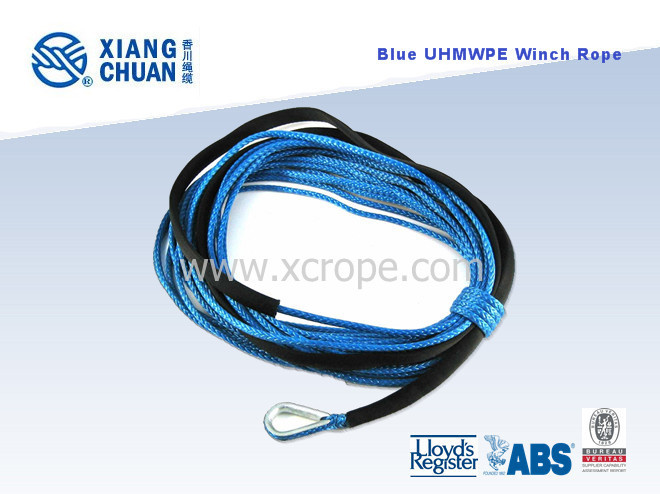

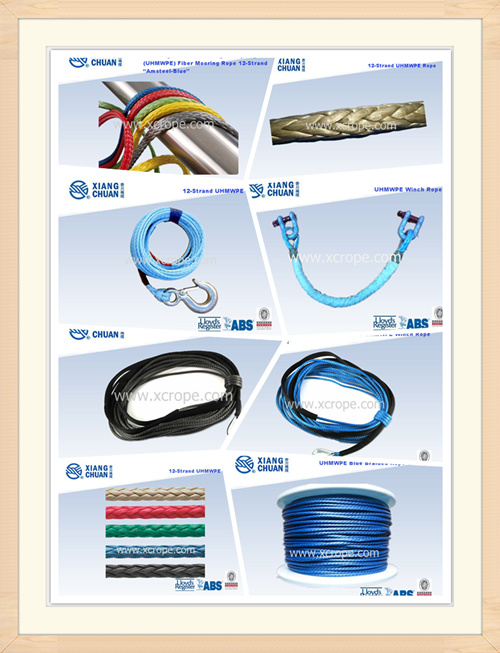

Product Photos
XIANGCHUAN Rope
XIANGCHUAN Factory
| Prod Model: |
XCMAX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter Of Rope: |
6mm--128mm |
| Color: |
Blue |
Jiangsu Xiangchuan Rope Technology Co., Ltd., was rebuilt up on July 2002 at the Baoying urban area by Tao Xiangchuan, who has rope-making experiences for more than twenty years and LED engineering technicians of original Baoying County Rope Factory. Now the enterprise has an area of 38000 aquare meters, a building area of 18000 square meters and 200 staff and workers in which over 15% are engineering technicians. It owns domestic first-class rope-making equipments including double-layer rope automatic production line with technically innovative design imported form Japan and Germany. With an annual production capacity of various kinds of chemical kinds of chemical fiber ropes over 6000 tons, it is one of chenical fiber rope-making enterprises with the most vitality in the country.
Tile enterprise has passed through the authentication of ISO9001 international quality system and has obtained the certificates for mafine products from international classification certification such as China(CCS), Germany(GL), France(BV), Japan(NK), USA(ABS), UK(LR). Norway(DNV), Korea(KR), Russia(RS)etc. Its main products including series of polyamide, polyester, polyethylene, polypropylene, macromolecular polyethylene, nylon coarse monofilament with structures of three-ply, four-ply, six-ply, eight-ply, twelve-ply, double-layer braided etc. And diameter from 4mm--150mm. Meanwhile the company produces Vafious kinds of network and sling. Recent years"Xiangchuan"brand chemical fiber ropes have won a 10t of honors from tile state, the province and tile city. Its products are suitable for sectors of shipbuilding equipments, ocean transportation, ocean work, national defense and military industry as well as harbor and docks etc.
The company has leading technology and sofid technical force and is a high-tech enterprise and a private science enterprise in Jiangsu Province. Now it owns four items of self-owned patent of intelligent property(nos. Of patent: 200320161 1, 2003201207961, 20052007521 18 and 2005200752122), one item of tile state-level Spark Plan and one item of state-level new product. It has firstly set up the chemical fiber rope technical center at city level and is willing to be hand in hand wim broad customers to create prosperity for the development of auxiliary apparatus of skips and steamers in our country.
Tile business aim of tile enterprise: Doing business in good faith to provide quality service.
Tile company warmly serves broad customers both at home and abroad, and sincerely hopes for your inquiry and instruction.
