CCTV Surveillance Kit With Unique User Manual(MVT-K04DT)
CE, RoHS, FCC certificate
CCTV system, security system, CCTV kit, home CCTV system, CCTV DVR system
Warmly notice:
1-MVTEAM provide security camera system come with all needed accessories except hard disk.
Because the installed hard disk in DVR is easily damaged during transport. Our suggestion is to buy hard disk in your lacal market. If you need HDD from MVTEAM we also could provide.
Note: 1PC 500GB hard disk in 4CH DVR kit, it can record about 28days continuously.
2-In the system, power+video extension cable from camera to DVR is 20m long, if the distance form cameras to DVR is more or less than 20m, please inform us. We also could provide 10m, 15m and 30m cables.
3-4PCS cameras in the system support night vision, can view about 25m at night
4-The kits come with detailed user manual for new users, there are detailed introductions of how to connect the kit and how to set the network view in the maual.

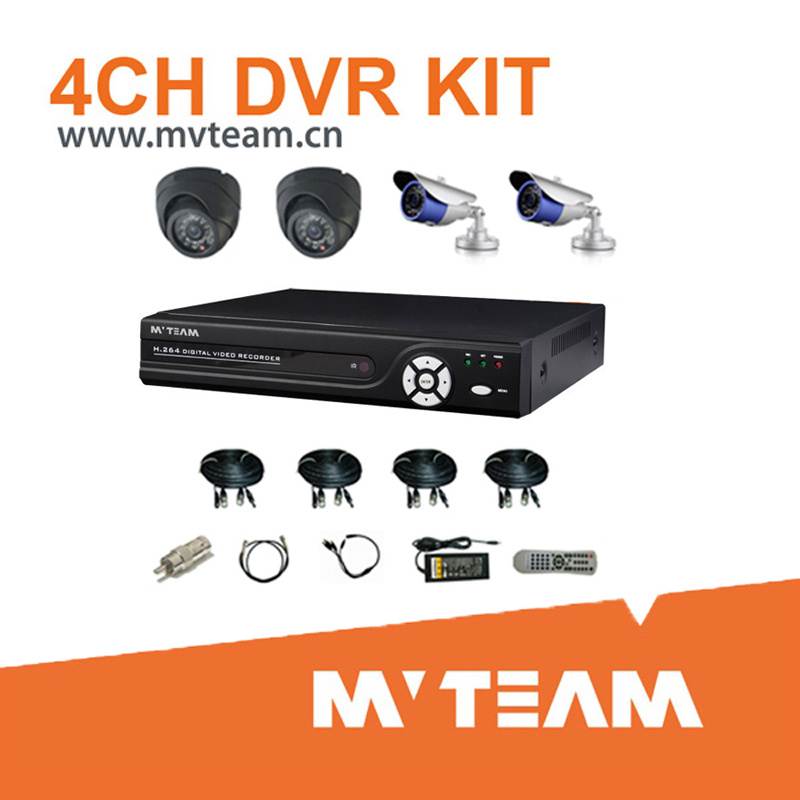

4CH CCTV System Components:
1PCS DVR MVT-5204+2PCS outdoor CCTV Camera MVT-R2051T +2PCS indoor camera MVT-D2251T+ 1PCS 1-in and 4-output powe adaptor+4PCS 20m Extension cable+1PC 2m coxcial cable
Spec:
1-DVR MVT-5204, Compression format: H. 264
2-Display Frame Rate: 25*4FPS (PAL), 30*4FPS (NTSC), Record Frame Rate: 100FPS@CIF(PAL), 120FPS@CIF(NTSC), Audio input: 1CH, Audio output: AV× 1
3-2PCS MVT-R2051T(1/3"Sony CCD, 420TVL, 23PCS× Φ 5 LEDs, 6mm lens, IR distance: 25m)
4-2PCS MVT-D2251T(1/3"Sony CCD, 420TVL, 23PCS× Φ 5 LEDs, 6mm lens, IR distance: 25m)
5-1PC 1-in and 4-output power adaptor for CCD cameras, 1PC 2m coxcial cable to connect DVR and TV set
6-4PCS 20m 2 in 1 (Power+Video ) extension cable with BNC connector
7-USB port: High speed USB2.0 for mouse, support 1PC SATA HDD, Support Mobilephone remote view, come with 1PC mouse.
8-support IE browser and client software(Notework), with Remote controller
9-DVR Menu Come with English, Italian, Turkish, Thai, Russian, French, Portuguese, Spanish, Polish, Persian, German, Serbian
Language, Dutch, Macedonian, Czech, Latvian, Bahasa Indonesia, Roma language, Simplified Chinese.
Meanwhile, Hebrew, Korean, Greek, Japanese, Vietnamese can be optional if need.
|
Cctv Surveillance Kit With Detailed User Manual(MVT-K04DT) |
|
Model |
MVT-5204 |
|
System |
Main Processor |
High performance embedded microprocessor |
|
Operating System |
Embedded LINUX |
|
System Resources |
Pentaplex function:Live,Recording, Playback, Backup&Remote access |
|
Control mode |
Front panel, USB mouse, IR remote control, keyboard, network |
|
Video |
Input |
4 channel, BNC(1.0Vp-p,75Ω) |
|
Standard |
NTSC 120F/S, PAL 100F/S |
|
Output |
1TV, BNC(1.0Vp-p,75Ω),1VGA |
|
Audio |
Input |
1 channel, BNC(200-2800mv, 30KΩ) |
|
Output |
1 channel, BNC(200-3000mv, 5KΩ) |
|
Display |
Display Split |
1/4 |
|
Resolution |
1240 x 1080,1024 x 768, 800 x 600 |
|
Tour display |
Support |
|
OSD |
Camera title, time, video loss, motion detection |
|
Recording |
Audio Compression |
G711 |
|
Image Resolution |
CIF(352x288/320x240) |
|
Encoding Speed |
Main Stream:CIF(1~25/30F/S) |
|
Extra stream: QCIF(1~25/30fps) |
|
Bite Rate |
32~2408Kb/s |
|
Image Quality |
1~6level(level 6 is the best, VBR effectively) |
|
Recording Mode |
Manual, schedule(regular(continuous),MD(Video detection: Motion detection, camera blank, Video loss),Alarm),Stop |
|
Recording priority |
Manual>Alarm>Motion detection>Regular |
|
Recording Interval |
5-120min |
|
Video Detection |
Trigger Events |
Recording,PTZ movement, Alarm, E-mail |
|
& Alarm |
Motion Detection |
Zones:396(22x18),sensitivity:1-5(level 5is highest) |
|
|
Video Loss |
Support |
|
|
Alarm Input/Output |
N/A |
|
Playback |
Playback Channel |
1/4 |
|
& backup |
Playback Speed |
CIF(1~30FPS/CH) |
|
|
Search Mode |
Time/Date, Alarm, Motion Detection |
|
|
Playback Functions |
Play,Pause,Stop,Fast play,Slow play, ull screen,Backup selection |
|
|
Backup Mode |
Flash drive/USB HDD/USB CD/DVD-RW/Network download |
|
Network |
Interface |
RJ-45 port(10/100M) |
|
Network Functions |
TCP/IP, UDP, DHCP,DNS, IP Filter, PPPOE, Email, Alarm Server, uPNP |
|
Remote Operation |
Monitor,PTZ control,Playback,System setting,File download,Log information |
|
Hard Disk |
Hard Disk |
1SATA port,Max2TB HDD supported |
|
Space occupation |
Audio:28.8MB/H, Video:56~900MB/H |
|
HDD Management |
Hard disk hibernation technology,HDD faulty alarm |
|
Auxiliary Interface |
USB Interface |
2 ports,1for mouse control,1for backup |
|
RS485 |
PTZ control |
|
Working Environment |
-10°C~+55°C/10~90%RH/86~106kpa |
|
Demension |
240mm(L)×260mm(W) ×60mm(H) |
|
Weight |
1.8kg |
