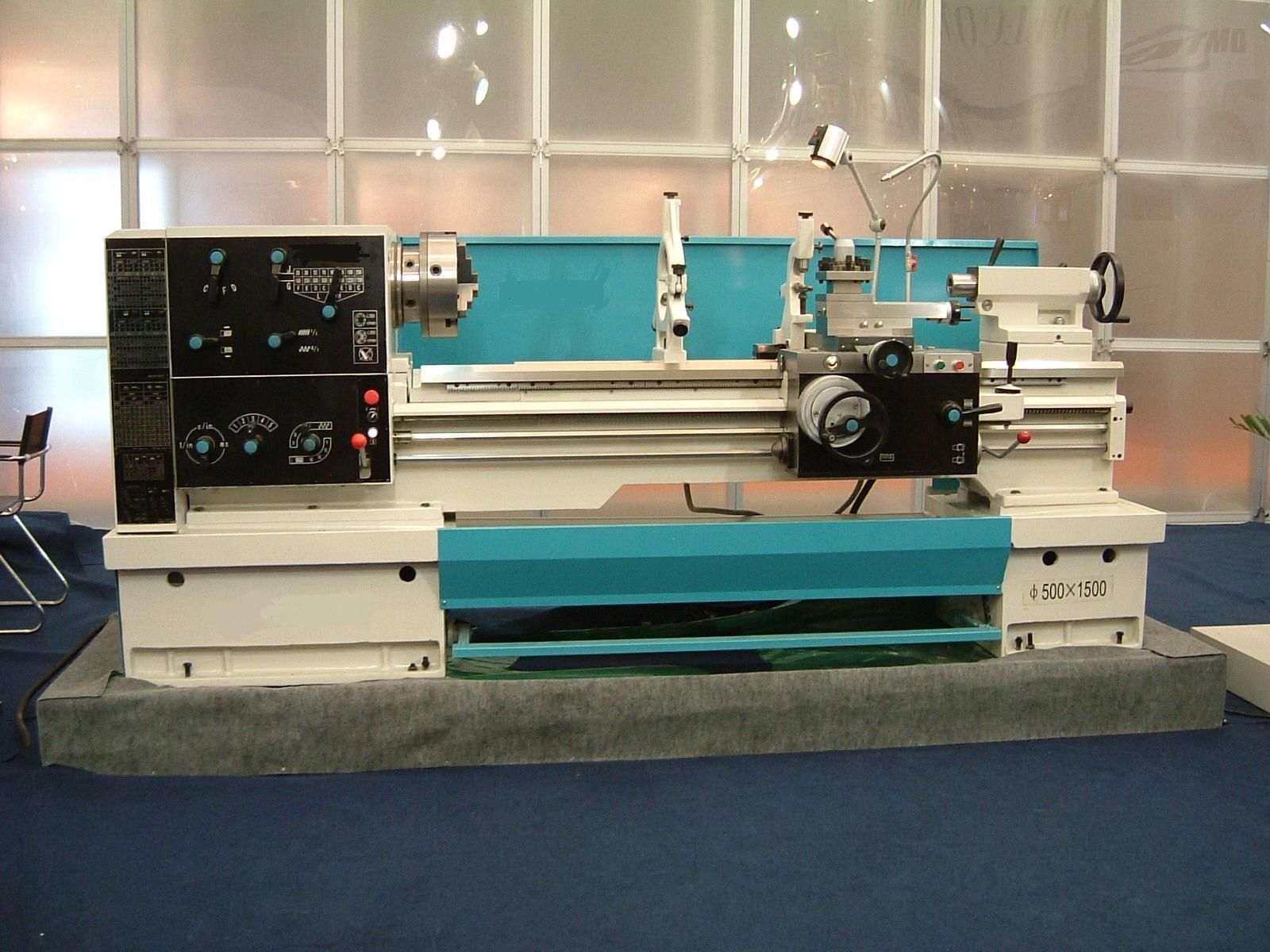

CDS Series CONVENTIONAL LATHE
Main Features
High speed
High spindle Torque
Big spindle bore
Automatic forced lubrication
Hardened and ground guideways
Brand-new design exterior
Head stockwith mechanical clutch or electromagnetic clutch
To go through CE certificate of TUV Rheinland, Germany & CQC, China
Standard accessories
Standard accessories:
3-jaw chuck Foot brake
4-jaw chuck Oil gun
Face place Fixed center
Drive plate Center sleeve
Steady rest ToolS
Follow rest Thread chasing dial
Full length splash guard Halogen light
Coolant system
Optional accessories
Chuck guard
Larger steady rest
Tool post guard Larger follow rest
Quick change tool post Rolling livecenter
Taper turning attachment CE electrics
Digital readout
Parameters:
3. Customer visiting:
4. Packing:
5. Company culture:
6. Main export markets:
Albania, Saudi Arabia, Indonesia, Iran, Brazil, Ukraine, Paraguay, Eg
7. After-sale service:
1. We are responsible for Installation and debugging of the products.
2. If there is something wrong with the auto lathe, the after-sale service personnel will reach the buyer within the specified time to determine fault, and remove it.
|
Item |
CDS6240/50/56/66/76B/C |
|
Max. swing over bed |
400/500/560/660/760mm |
|
Max. swing over carriage |
230/290/350/440/540mm |
|
Max. swing over gap |
700/760/780/870/965mm |
|
Width of gap |
250mm |
|
Max. length of work piece |
1000/1500/2000/3000mm |
|
Width of guide way |
394mm |
|
Spindle nose |
D8 |
|
Dia. of spindle bore |
82mm |
105mm |
|
Taper of spindle bore |
90/1:20 |
110/1:20 |
|
Longitudinal feed |
0.044-1.48mm/rev |
|
Cross feed |
0.022-0.74mm/rev |
|
Metric thread |
0.35-80mm(53 or 77) |
|
Max.travel of cross slide |
348/348/348/355/355mm |
|
Travel of top slide |
150mm |
|
Travel of tailstock quill |
150mm |
|
Diameter of tailstock quill |
75mm |
|
Taper bore of tailstock quill |
M5 |
|
Main motor power |
10HP(7.5kW)/15HP(11kW.OPTIONAL) |
