Description:

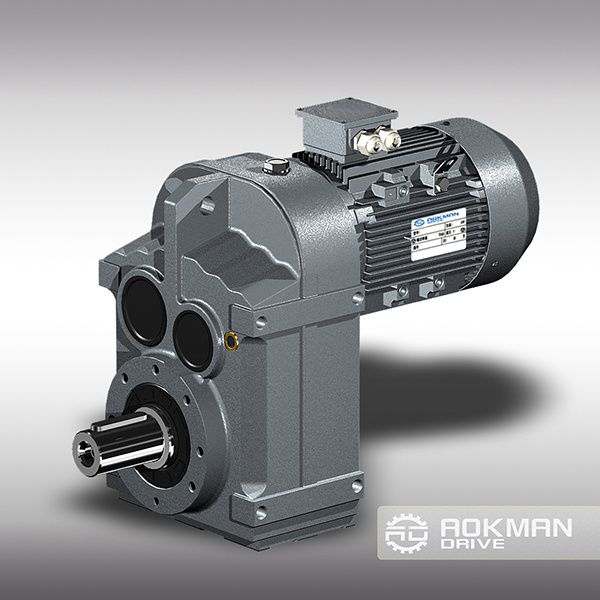

F Series Parallel Shaft Gear Reducer It's suitable for transmitting rotation of parallel. F series gearbox have the feature of light weight, small volume, heavy transmission torque, steady startup, low consumption.It could be mounted in various types and the in-put and out-put flexible etc. Structure:
F(-)
| F(F) | The out-put | In-put | F(-) |
| Foot-mounted | Flange-mounted | Solid out-put or Hollow out-put | Solid in-out shaft, or In-put flange | Foot mounted solid shaft output |
Output mode: hollow shaft output or solid shaft output.
Average efficiency: 2-stage 96%, 3-stage 94%, combination 85%.
Input power rating and maximum torque
Size
| 38 | 48 | 58 | 68 | 78 | 88 | 98 | 108 | 128 | 158 |
Structure
| F FA FF FAF FAZ |
Input
power
rating | 0.18~3.0 | 0.18~3.0 | 0.18~5.5 | 0.18~5.5 | 0.37~11 | 0.75~22 | 1.1~30 | 2.2~45 | 7.5~90 | 11~200 |
| Ratio | 3.81~
128.51 | 5.06~
189.39 | 5.18~
199.70 | 4.21~
228.99 | 4.30~
281.71 | 4.20~
271.92 | 4.68~
276.64 | 6.20~
255.25 | 4.63~
172.33 | 12.07~
270.18 |
Maximum
torque(N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
Gear unit weight
Size
| 38 | 48 | 58 | 68 | 78 | 88 | 98 | 108 | 128 | 158 |
Weight
| 13 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 950 |
The weights are mean values, only for reference.
Maximum torque means the biggest one of the maximum torque related to the different ratio for the specified size.
Rated Power:0.18KW~200KW
Rated Torque:Up to 18000N.m
Gear Arrangement:Parallel Helical Hardened Gearbox
Input Speed:50HZ or 60HZ of 4Pole,6Pole and 8pole motor
Ratio:3.81~281.71
