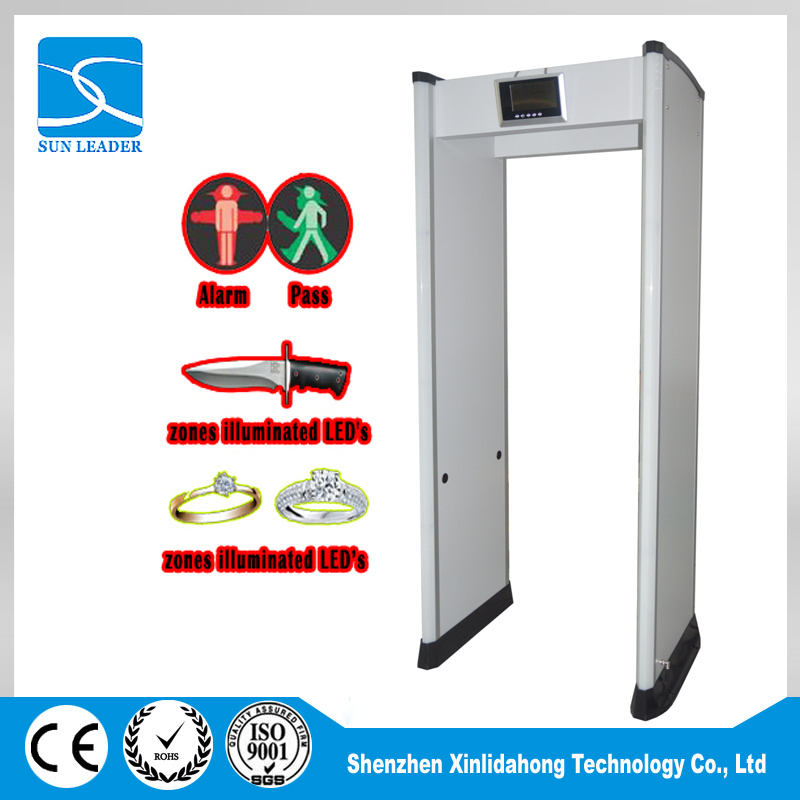

Walk through metal detector ,metal detector archway XLD-G
Quick Detail:
1.24 detection zone,
2.LCD Display panel
3.Can use the camera shot selecti
Specifications:
A pacemaker evaluations of the person that wear or other support system, pregnant women and magnetic tapes, tapes, floppy disk medium such harmlessness
B with FAA "3 - gun - testing standards and NILECJ - 0601-00 all safety standards
C and electromagnetic compatibility with related electronic E.M.C. international standards and EC rules
D EN55011 interference with radio radiation, the FCC and VDE0875 standards
E product conforms to the standard of "GB15210-2003"
Technical parameters:
external power supply | 90V 250V 50-60Hz |
Consumption | 35W |
working environment | --20ºC~45ºC |
Weight | 90kg |
Outer Size (mm) | 2220 (high) x 820(wide) x 610 (depth) |
Tunnel size | 2200*800*600mm |
Description:
Products: with hard PVC materials and aluminum alloy frame, four-column via special process, make product exterior integrated, already beautiful and durable, waterproof, fire prevention function, achieve true can be used in outdoor.
Six detection zone: six parts overlapping regional distribution, can detect location and alarm. More
Display panel: choose high brightness LCD panel display through the number of parameters, and alarm.
Instructions: bilateral mast regional alarm lamp instructions, each alarm location flank built-in high brightness LED display lights, more intuitive body metal objects show where appropriate height.
Regional sensitivity adjustable: from 0-199 between sensitivity adjustment according to user requirements, the sensitivity of actual human carries out the jewelry, strap, metal zippers etc. The highest sensitivity to detect the size of the metal items. The paper clips
Strong antijamming capability: adopting digital balance technology, which can effectively prevent misstatement, omission, make whole swing door won't continue alarm.
Parameters adjustment methods: only by the remote parameter control regulation. Built-in intelligent chip, store a variety of sites recommend detection sensitivity setting value, including electronic, hardware, cable factory, airport security, stadium, entertainment, etc, make the parameters adjustment easier, more quickly.
Main Advantages:
Password protection: setting authorized management allows only authorized personnel password, operation, which can effectively prevent other personnel modification parameter.
Computer networking (customizable) : according to customer's requirement, also used a computer to control 8 sets of technical parameters of the door. Through the communication interface with lightning reserved the remote computer, monitor, statistical detection; Can use the camera shot selection, data can be alarm remote communication.
Other features: intelligent statistical personnel quantity and alarm through.
Power supply: the power in safety, high safety. Top host
Grid function: more parallel, 35CM only for the distance
Convenient installation: XLD series metal detector, convenient installation is combined with the design of the operating instructions, remove plain.
No harm to human body heart: the heartstart, pregnant women, magnetic floppy disks, tapes harmless.
Application places:
Use in hardware factory, electronic factory in the loss of metal items, prison, court, exhibition, gym, recreation, etc safety inspection.
General Information:
Place of Origin | Shenzhen, China |
Brand Name | Sunleader |
Model Number | XLD-G(LCD) |
Certification | ISO9001: 2008 |
Commerce clauses:
MOQ: | 1 pair |
Price: | |
Package Weight: | 95Kg |
Payment Terms: | By T/T, Western Union, cash |
Supply Ability: | 3000pcs / month |
Warranty time: | One year |
