CE Approvedbeverage Tea & Cereal Filing Machine (24-24-8)
Price: |
Negotiable/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Product description

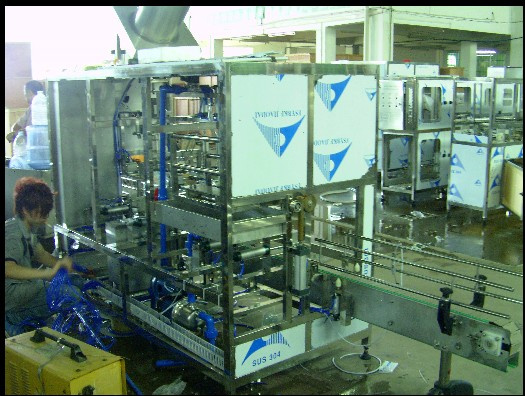

Automatic juice tea &cereal Filling Machine
The Machine Is Mainly Used in The Beverage Filling Operations. The Three Functions of Bottle Wash, Fill and Seal Are Composed in One Body of The Machine. The Whole Process Is Automatic.
The Machine of Isotonic filling Methods (D Type) Is Used in Filling Juices, Mineral Water and Purified Water in Bottles Made of Polyester and Plastics. The Handle of The Machine Can Be Freely and Conveniently Turned to Adjust The Machine to Fill Various Types of Bottles. The Filling Operation Is Faster and More Stable Because The New Isotonic Pressure Filling Operation of The New Type Is Adopted.
There The Output and Benefit of The Machine Is Higher Than The Machinery of The Same Specifications. The Advanced Omron Programmed Controller (PLC) Is Adopted to Control The Machine to Run Automatically While a Transducer Is Used in The Bottle-Entering Chains to Adjust Speeds and Coordinated with The Transducer of The Main Machine to Make The Operations of Moving Bottle Forward Steadily and Reliably.
It Is Convenient to Operate with Higher Automation Because Every Part of The Machine Is Inspected to Run with Photo Electricity. The Machine Is an Idea-Preferred Equipment for Beverage Makers.
Model: |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-12 |
DCGF40-40-12 |
Capacity: 500ml |
5000 |
8000 |
12000 |
16000 |
Bottle shape: |
roud or square |
PET bottle: (mm) |
(Bottle Diameter): φ 50-. φ 110mm (Height): 150-340mm |
Cap: |
PE srew cap |
Filling precision: |
≤ ± 5mm |
Filling pressure: (Mpa) |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
Rinsing pressure: (Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
Filling volume: (L) |
3.5 |
4 |
6 |
8 |
Overall size: (mm) |
2450*1800
*2350 |
2780*2200
*2350 |
3600*2650
*2350 |
3800*2950
*2400 |
Weight: (kg) |
3500 |
4500 |
5500 |
6500 |
Prod Model: |
B24-24-8 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Packing:Wooden Case Standard:CE: |
Trade Mark : Greenfall or OEM Orgin:China |
JIANGMEN GREENFALL WATER TREATMENT TECHNOLOGY Co., Ltd Located in China's first overseas Chinese of JIANGMEN. Since 1996 the company since its establishment, our factory purpose is improve water quality, benefit of humanity, fervor-self, contributing to society.
Our factory manufacture complete water plant equipment. Include injection machine, blowing bottle machine, water treatment equipment, ozone system,
Filling machine, labeling machine, packing machine and palletizer etc.
As one of the leading manufacturers in drinking water treatment and bottled water engineering (covering water dispensers) in China, we are pursuing good reputation in the global market also. Our products are selling well in Canada, French, USA, Japan, Korean, Russia and Indonesia. And we have more customers from USA, Mexico, Ecuador, Australia, Singapore, Thailand and Brunei. We have a good beginning in most of African countries.
The main products of the company
1, 2000BPH---20000BPH hot liquid filling, middle temperature beverage production line
2, 2000BPH---36000BPH Mineral water and purify water production line
3, 2000BPH---20000BPH Gas beverage production line(PET, glass bottle)
4, 2000BPH---12000BPH Glass bottle wine complete production line
5, 2000BPH---20000BPH Pulp beverage mixed filling machine
6, 60BPH---1200BPH barrel mineral water, purify water production line
Plastic injection machine, Blowing bottle machine, Mould etc
Bottle unscrambler, Labeling machine, Shrink packaging machine, etc
Ozone system, ultraviolet sterilization system, air shower, laboratory equipment etc
Purified Water Treatment Equipment, Mineral Water Treatment Equipment, Seawater treatment Equipment, Brackish Water Treatment Equipment, etc.
Providing "Quality Products, Excellent Service, Competitive Prices and Prompt Delivery", we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. If you are interested in our products, please feel free to contact us for more information.
