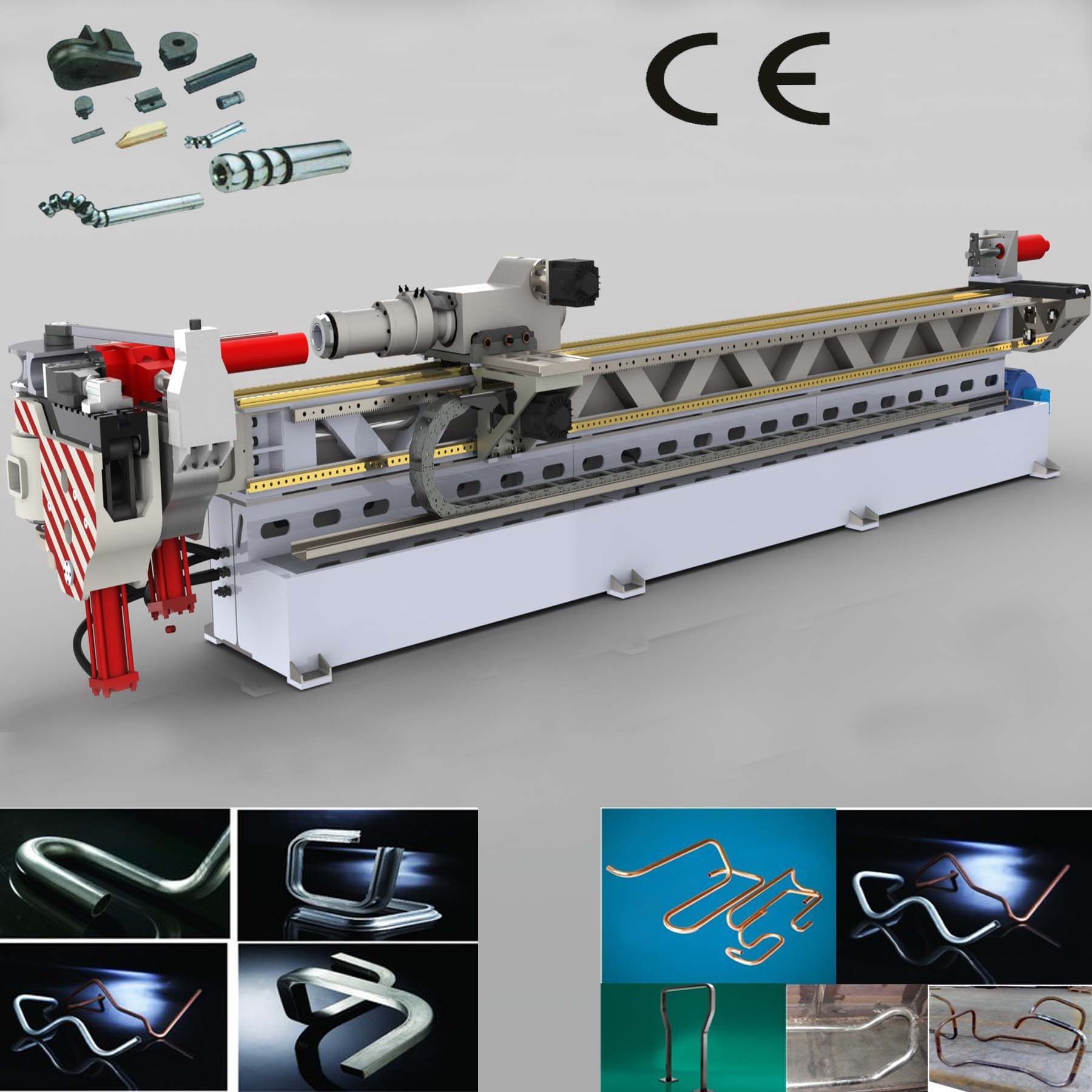

This electric cnc pipe bender is servo motor driven; the pipe bender has high bend accuracy; bend pipes no wrinkles, no cracks; Low noise, easy operation; German technology, favorable factory price. Change bend die can bend square tubes or pipes, flat bar, U or channel steel, H steel, round bar, angle bar steel, etc..
The cnc pipe bender's main body is made of stainless steel; Servo motor driven; Nice profile; Trolley push bending system, can bend large bend radius.
1. The cnc pipe tube bender adapts reinforce design; Annealing treatment to eliminate internal stress; Enough strength and rigidity to prevent permanent deformation.
2. Drive shaft fixed directly from the upper, accurate installation, convenient maintenance. Bend shaft and drive chains integrally casted, more solid. Drive shaft driven by double oil cylinders, pipe bending 5 r/min. Special design makes high bending accuracy..
3. Trolley pushing bending system can fulfill large radius bending.
4. Clamping system adopts subsided four connecting rod lifting power structure, convenient for fetching bent pipes.
5. Special design for trolley, precise angle position. (servo motor closed-loop used)...
6. Color touch screen display, PLC control, servo motor control, convenience, rigidity, easy operation.
7. Preset 20 kinds of bend angles. (one tube 16 different kinds); Equipped with mechanical Angle proportional amplifier structure; Bend repeat accuracy: + / - 0.1 ° . Space Angle repeat accuracy: + / - 0.1 ° , feed accuracy: + / - 0.1 mm. automatically feeding, bending.
8. Stable and reliable enough. Before delivery, it is tested by running 48hours well without stopping.
|
No. |
Name |
Parameter |
Unit |
|
1 |
Max. Rotary distance |
54000 |
N |
|
2 |
Max. Bend OD*WT |
Φ89*6 |
mm |
|
3 |
Min. Bend OD |
Φ10 |
mm |
|
4 |
Max. Bend radius |
R550 |
mm |
|
5 |
Min. Bend radius |
R15 |
mm |
|
6 |
Max. Bend angle |
195 |
° |
|
7 |
Max Feeding distance |
3500 |
mm |
|
8 |
Pipe end min. length |
300 |
mm |
|
9 |
Mold center height |
60 |
mm |
|
10 |
Machine working height |
1500 |
mm |
|
11 |
Bend speed C shaft |
0-5 |
r/min. |
|
12 |
Clamping set speed B shaft |
0-10 |
r/min. |
|
13 |
Feeding trolley walking speed Y shaft |
0-30 |
m/min. |
|
14 |
Speed series |
Continuously variable speed regulation |
|
|
15 |
Repeat precision
|
C shaft |
+/-0.1 |
° |
|
Y shaft |
+/-0.1 |
mm |
|
B shaft |
+/-0.1 |
° |
|
16 |
Angle preset |
99 |
types |
|
18 |
Motor total power |
15 |
kw |
|
19 |
Hydraulic system working pressure |
<=12 |
MPA |
|
20 |
Fuel tank capacity |
3000 |
L |
|
21 |
Size |
5.8*1.4*1.5 |
m |
We are a manufacturer, specialized in producing pipe benders and profile bending machines. We bring in Italian and German technology to manufacture high quality pipe benders and pipe rolling machine. We bend pipes from OD 38mm to 550mm in use of pipe benders. We bend a great number kinds of profiles in use of profile rolling machines, such as angle steel, U-steel, flat bar steel, round pipe steel, square steel, channel steel, I-iron, H-iron, plastic pipes and so on. We manufacture CNC, NC, PLC pipe benders and section bending machines. We are making every efforts to manufacture more and more high quality and good price products!
Dexi occupies 20, 000 square meters workshop and office place. Customers can have samples of their products tested in-house to insure the highest quality results.
Based on the advanced international management mode, the company brings in German machinery production technology and pay more attention to the machine designs and quality of raw materials. The company aims to manufacture the most advanced, durable and stabler pipe benders and bending machines at home and abroad.
The company makes efforts to manufacture machine tools to bend a great number of pipes such as round pipes, square pipes, special-shaped steel pipes, square steel pipes, stainless steel pipes, aluminum pipes, copper pipes, angle steel, flat steel, channel steel, I beam and other nonferrous metal pipes.
Dexi machines sell well at home and some foreign countries and get widely praised from our customers. We not only manufacture and provide high quality products, but also we have golden service after selling. A customer buying our machines means he enjoys the life-long after-selling service.
Our products such as type CNC, NC, PLC hydraulic pipe benders and profile bending machines are widely used in several fields such as aviation, shipbuilding, boilers, road and bridge, construction, automobiles, refrigiration, furniture and so on.
