CE High Speed Centrifugal Spray Atomizer Dryer for Beverage
| Price: |
US $ 100000-200000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
The drying technology is most suitable for producing the powder, particle products from the materials, such as: solution, emulsion, soliquoid and pumpable paste states.
For this reason, when the particle size and distribution of the final products, their residual water contents, the stacking density and the particle shape must meet the precision standard, the spray drying is one of the most desired technologies.
LPG-100 High Speed Centrifugal Spray Dryer
Brief Indtroduction:
I . Working principle and configuration options:
The solution, emulsion, suspension liquid or slurry are sprayed into fine beads in the hot air, going down from the top of the drying chamber to the bottom, the water will be evaporated to and the product becomes powder or granular product.

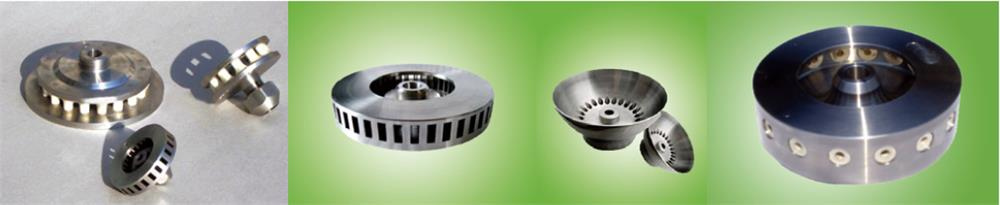

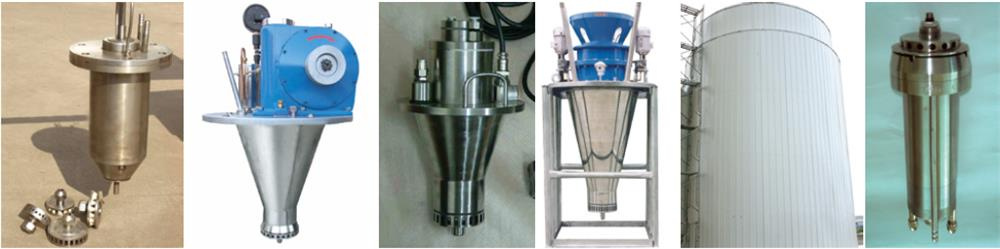

Induce hot air from the top of drying tower, at the same time, pump the material liquid to the top of the tower by screw pump or peristaltic pump, the feeding solution becomes into fine beads or small droplets through the atomizer. When the droplets meet the high temperature hot air, the water will be evaporated immediately, and the material liquid is dried into dry product in a very short time, the product is discharged from the bottom of the drying tower, or from the cyclone (depend on the configuration). When the hot air contacts with the droplets, the temperature declines significantly, and the humidity increases greatly, and then will be exhausted by exhaust fan. The fine powder in the air will be collected through different separating devices
There're different fine powder separation and recovery devices, such as cyclone (the common type and various combination type), bag filter, cyclone + bag filter, cyclone + wet scrubber, and bag filter + wet scrubber etc. We should different fine powder separation and recovery devices as per the characteristics of product and requirements of customer.
Depend on the product features and requirements, we might install secondary drying and cooling system (such as ZLG vibration fluid bed or pneumatic transportation), formulation system or powder sieving system etc after the spray dryer, or dehumidifier.
II . Features of our equipment:
The designs of our spray dryer are advanced in China, as well as worldwide. If we compare the important parameters of our spray dryers and some famous brand in the world, such as final moisture content, color, flavor, particle size, solubility and bulk density etc, they are very close, or sometimes, ours are even a little better. A lot of customers have achieved their desired results with our equipment.
III . Applications
Food Industry: whole milk powder, cocoa milk powder, milk substitute, egg white (yolk), etc. armpit prion, Oats, chicken juice, instant tea, seasoning meat, protein, soybean, peanut protein, protein hydrolyzate, etc. Corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, pumpkin powder, etc.
Pharmaceutical products: Chinese traditional medicine extract (herb extract), medicine colloid, yeast, vitamins, antibiotics, amylase, lipase, etc. Plastics resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, dense plastic (urea) formaldehyde resin, polyethylene, polyvinyl chloride, etc. Detergent: advanced washing powder, normal washing powder, soap powder, soda powder, emulsifiers, brighteners, phosphoric acid agents. Chemical Industry: Sodium fluoride (potassium), alkaline dyestuff and pigment, dye intermediates, Mn3O4, formic silica acid, catalyst, sulfuric acid agent, amino acids, silica, etc.. Ceramic: aluminum oxide, ceramic tile material, magnesium oxide, talc, etc.
Customers that are interested, please contact us for further details. We can supply budget of the total investment, area occupied, utilies consumption based on each ton, and other relative information for customers to make decision.
| Specification | LPG-300 | LPG-400 | LPG-500 | LPG-600 | LPG-700 | LPG-800 |
| Air Inlet temperature | 140-550 ° C (depend on the product to be dried, and URS) |
| Air exhaust temperature | 60-120 ° C (depend on the product to be dried, and URS) |
| Nominal water evaporationcapacity (Kg / h) | 300 | 400 | 5000 | 600 | 700 | 800 |
| Heating method | High-pressure steam, or steam + electricity, or any kinds of fuel (diesel, natural gas, liquefiedpetroleum gas or coal, etc.), or solid fuel (any combustible material). Please specify. |
| Drying tower diameter (mm) | 1100 | 1800 | 2150 | 2560 | 2860 | 3200 |
| Overall Dimensions (m) | 2×1.4×2.2 | 5×3×4 | 6×4×5 | 8×4×6 | 8×5×7 | 10×5×8 |
| Product yield | 95-99.9%_depend on the properties of the product and configurations |
| Prod Model: |
LPG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel SUS316, SUS304, Carbon Steel |
| Capacity: |
5kg to 30000kg Per Hour |
| Heating Source: |
Electric, Steam, Gas, Coal Other Fuels |
| Power: |
1.5KW |
| Type: |
Dryer |
| Voltage: |
380V |
| Customized: |
Customized |
Changzhou Jinqiao Spray Drying and Engineering Co., Ltd, and the partner companies, Changzhou Jinqiao Drying Equipment Co., Ltd and Shandong Zouping Shuangfei Complete Equipment Co., Ltd, covering totally around 100, 000sqm in area, is a leading group of manufacturers of spray dryer and the plants with spray dryer in China. We owned the famous brand of Jiangsu Province. ISO9001: 2008 and ISO 14001: 2004 are approved, CE is certified for spray dryers (provide on request), and credit level is AAA.
We are the first contracted drying technology cooperator of the most famous university of drying technology in China, Dalian University of Technology, and also cooperating with some other universities closely, such as Tianjin University of Science and Technology and Qinghua University etc. Our consultants are very famous experts including Professor Wang, the most famous expert of drying equipment in China, who was the Headman of China Drying Equipment Expert Group, and now is the Honorary Headman, Prof. Yu, the vice President of China Drying Equipment Association, and some other famous experts in China.
Our market covers around China, as well as international market, especially in a lot of Asian and American Countries, such as in Indonesia, we have installed four huge spray drying plants with water evaporation capacity of more than 2000MT/H each.
We have developed the entire Production lines for Instant Coffee (both spray drying and Freeze Drying), Non-dairy Creamer/ Coffee whitener, Maltodextrin /Glucose, Milk Powder, Whey Powder, and instant tea powder etc.
We also have specialized technology with spray drying of sorbitol, spirulina, egg powder (full), egg white powder, egg yolk powder, yeast/enzyme, amino acid chelate (AA Chelate), separated soybean protein, coconut milk powder, herb extract and many other products for food, feed, chemical, and pharmaceutical industries.
We have some spray dryers in our lab for making trial, including pressure spray dryer (with height of around 18m), centrifugal spray dryer (different specifications to meet different needs) and sealed circulation spray dryer etc. We also have prepared some other machines that are necessary for spray drying plant. Customers are welcome to visit us, make investigation and make trial.
Right now, we are installing some big demonstration plants in our Shandong factory, and will be finished in around 3 years.
We provide not only the equipment!
But also the spray drying technology!
