Product Specifications
Prod Model: |

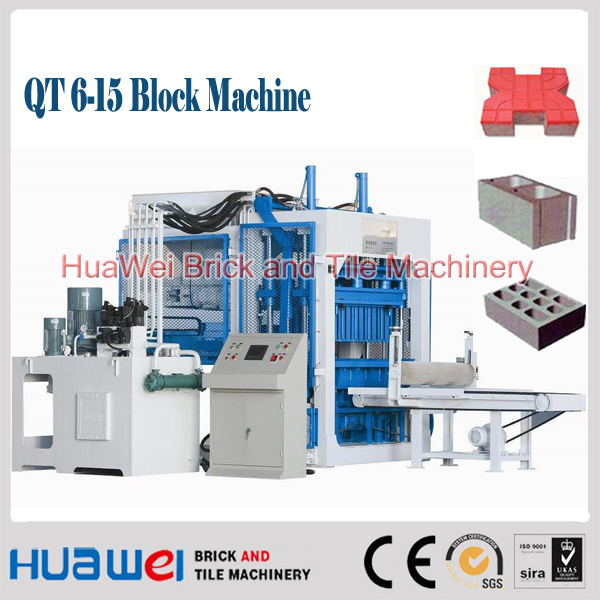

QT6-15 brick making machinery |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Condition: |
New |
Place Of Origin: |
Jiangsu, China (Mainland) |
Brand Name: |
Huawei |
Model Number: |
Qt6-15 Concrete Brick Making Machinery |
Processing: |
Brick Prodcution Line |
Brick Raw Material: |
Concrete |
Method: |
Hydraulic Pressure |
Automatic: |
Yes |
Capacity: |
7200 Block/Hour |
Power: |
29kw |
Type: |
Concrete Block Machine |
Product Description
1. This model of machine is a full new type machine and particularly designed by our company for honeycomb type block, the rapid and equal feed is achieved by using the semi-closed reticular feeding unit, so that the product reaches the high strength. This machine is particularly suited the production of honeycomb type block.
2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, fault diagnosis and parameters setting, ensure the best operation effect of the machine.
3. Interlock between the feeding system and the magazine, the magazine and the door are open/close automatic during feed to ensure feed quantity, the operation is reliable and suited to long term running.
4. The vertical direction vibration is carried out by hydraulic motor drive vibration unit; The steeples velocity is down by the electric-hydraulic proportional control technology to ensure the production requirement of difference material.
5. Multi use; Strong performance; The many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block.
*************************************************************************************************************************************************************************************
Δ Our Advantages of brick making machinery
1)Service Guarantee for one year and after sale service for whole life. To offer free design, free technology support and free machine maintenance trainning.
2)Experence We invest in this field for more than 20 years.
3)Export team Our team members have export experience from 3-6 years.
*************************************************************************************************************************************************************************************
Δ Available raw materials of brick making machinery
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.
*************************************************************************************************************************************************************************************
Δ Applied Products of brick making machinery
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Machine Function |
Automatically Making Concrete Bricks, Blocks, and Pavers.
By using Raw Materials of Cement-Sand-Stone Powder-Fly ash-Water-Industrial Dust |
Machine Forming System |
Table-Mold Gear Box Vibration (Oil Motor Powering) + Top Hydraulic Press (Hydraulic Cylinder) |
Machine Frame |
China National Standard New Pure Steel (3mmthickness) |
Hydraulic System |
Hydraulic Station With Water Cycle Cooling System; ‘YUKEN-JAPAN’ Hydraulic Valves automatically controlling each action;
Branded Hydraulic Pump With Electric Motor. (SIEMENS motor is available for option). |
PLC computerized controller |
Smart Touch Screen; Electrical Components MISTSUBISH, OMRON, TELEMECANIQUE are available.
Type |
Specification (mm) |
No./pallet |
Block/hour |
Block/8hours |
Hollow Block |
400×200×200 |
6 |
1440 |
11520 |
Porous brick |
240×115×90 |
15 |
3600 |
28800 |
Standard brick |
240×115×53 |
30 |
7200 |
57600 |
Ground brick |
200×100×60 |
21 |
3780 |
30240 |
|
Model
Parameters |
QT10-15 |
QT8-15 |
QT6-15 |
QT4-15 |
QT3-15 |
Pallet Size (mm) |
1080 x 850 x 40 |
920x 850 x40 |
850 x 680 x 40 |
900 X 540 X 40 |
700 x 540 x 35 |
Vibration Method |
HYDRAULIC TABLE VIRATION + PRESS |
Vibration Frequency (Times/min.) |
3600~6000 |
2800~4000 |
4000 |
4000 |
4000 |
Molding Cycle (Seconds) |
12-18 |
12-18 |
12-18 |
12-18 |
12-18 |
Pressure (Mpa) |
25 |
25 |
20 |
16 |
16 |
Power Cons (Kw) |
36.25 |
36.25 |
29 |
26.8 |
20.5 |
Total Weight (Tons) |
13.8 |
11.8 |
8.6 |
6.8 |
5.8 |
Dimension
(L x W x H) MM |
7200*2290*2825 |
7200*2100*2825 |
6670*2245*2780 |
6120*2240*2750 |
5800*2130*2600 |
Located in Jiangsu province, China. Jiangsu Huawei Machinery Co., Ltd is an integrated enterprise specializing in brick & tile machinery manufacturing and marketing. It is only 1-hour driving distance from Shanghai. Dedicated to the development of Chinese Brick & Tile machinery industry, we are cooperating with many universities and science institutes, studying, absorbing and improving the technology related to our products.
AAC(Autoclave Aerated Concrete) Block Plant Machinery, Clay Brick Machinery, Concrete Block Machinery, Paver Brick Machinery, Tile Machinery, and include its matched production line equipments are mature & main products in our capacity. Our products represent China domestic Top High Level quality and technology.
Huawei Brick & Tile Machinery focusing on offering Turnkey Project of Brick & Tile Plant both at home and abroad, with higher technology and quality after-sales services. Furthermore, abundant designs are supplied to satisfy customers' different investment demands. Primarily, we have been considering customers' profits to provide the most suitable products for them.
Designing and manufacturing various of equipments and production lines with different cost, to satisfy the demands of customers' different investments. Primarily considering customers' profit.
During the past years, we have been concentrating on the international marketing of Brick & Tile machinery. The products were exported to Australia, Iran, Saudi Arabia, South Africa, Angola, Zambia, Russia, Bangladesh, India, Sri Lanka, Southeast Asia and etc. Accumulated much experience in marketing, installation, commissioning, and after-sales service. Huawei Brick & Tile Machinery with certificates of CE, SGS and ISO9001, guarantee supplying customers quality machinery and thoughtful service.
