Product Specifications
| Prod Model: |
SRL-Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

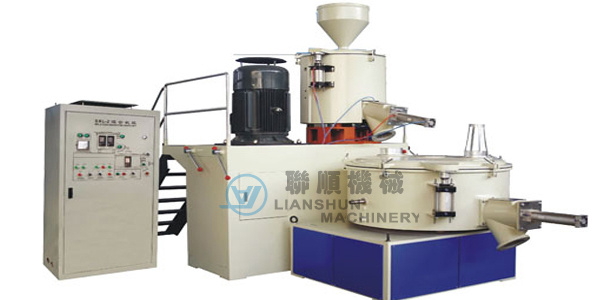

Vertical Mixer Unit
FEATURE AND FUNCTION:
SRL-Z series mixer unit is widely used in mixing, drying, coloring various kinds of resin such as PVC, PP, PE. They can also be used in dryness of ABS and polycarbonate, and mixing hydroxybenzene, aldehyde resin.
The unit consists of one hot mixer and one cooling mixer. The materials from hot mixer get into the cooling mixer automatically to be cooled, so remained gas is eliminated, and agglomeration is avoided.
Absoring advanced foreign technology and PLC control system, we designed SRL-Z series heating/cooling mixer unit, which offers high automatic level, good mixing effetc, complete function, compact structure, and perfect appearance. The unit is widely used in mixing, drying and coloring various plastics.
|
Main Technical Parameters |
|
Parameter/Model |
SRL-Z50/100A |
SRL-Z100/200A |
SRL-Z200/500A |
SRL-Z300/600A |
SRL-Z500/1000A |
|
TOTAL VOLUME(L) |
50/100 |
110/200 |
200/500 |
300/600 |
500/1000 |
|
EFFECTIVE VOLUME(L) |
37/70 |
75/130 |
150/320 |
225/384 |
375/640 |
|
BLADE RATE(rpm) |
510/1013/118 |
650/1300/130 |
484/967/110 |
480/964/100 |
413/830/71 |
|
MOTOR POWER(Kw) |
7/11/7.5 |
14/22/11 |
30/42/11 |
40/55/11 |
47/67/15 |
|
HEATING POWER/COOLING MEDIUM |
2KW |
6KW |
6KW |
9KW |
9KW |
|
UNLOADING WAY |
PNEUMATIC |
|
WEIGHT(T) |
2.8 |
3 |
3.5 |
3.8 |
5.8 |
Jiangsu Lianshun Machinery Co., Ltd., specializes in producing plastic machines, including pipe machines, sheet machines, profiled machines, recycling machines and auxiliary machines.
After more than four years development, the technologies are developed and the functions of machines are stable, especially for plastic pipe production lines and recycling machines. The main products of our company have been exported to different countries and have a good reputation.
We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us if you have further inquiry. We look forward to hearring from you soon in order to provide you with our best of service.
