| Price: | US $ 8000set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Paypal,Western Union |

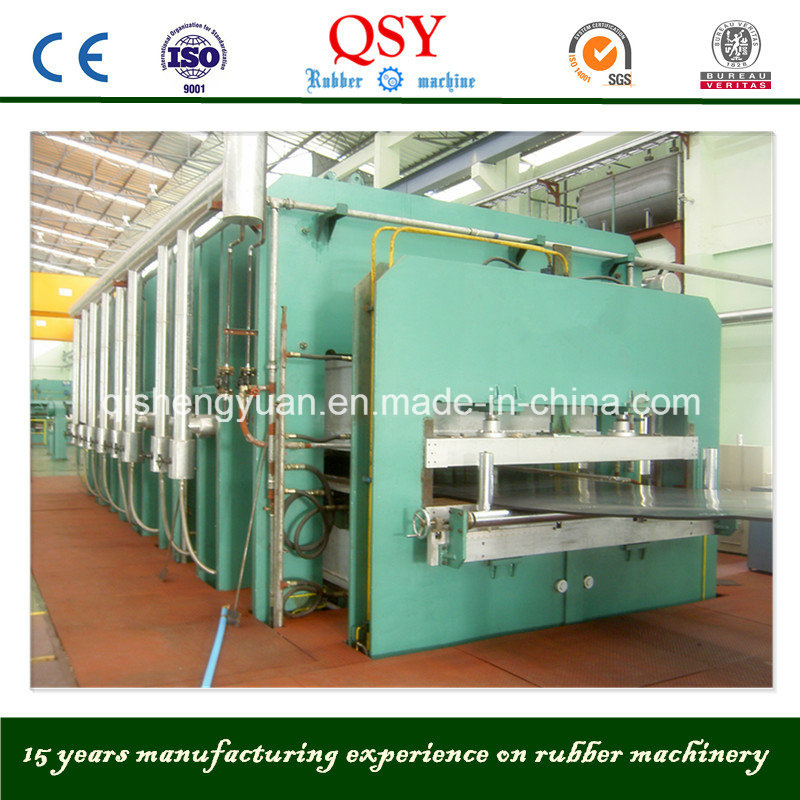

vulcanzing presses are of high automation level and compact advanced structure , suitable to vulcanize giant conveyor belt such as nylon conveyoor belt . common conveyor blet. anti-fire conveyor belt , wire rope conveyor belt etc.
1-Conveyor belt vulcanizing machine is use to make rubber conveyor belt.
2-PLC operation system.
3-Good quality, Low price.
Performance introduction:
1). The control system has been taken up with PLC so as to realize multi program automatic control of curing process, for example, the temperature of the hot plates can be measured and regulated automatically.
This will improve the control level and provide with high efficiency of production and low intensity of labor.
2) .The hydraulic cylinder is made of ZG270-500, the ram is made of close
grained chilled alloy cast iron by casting and fine grinding; the hydraulic cylinder is well sealed by YX shape sealing ring.
3).The guard edge of heating platen adopts hydraulic pressure automatic prop up iron, under the function of four oil cylinder, the iron cushion at two sides of the lower platen will advance and retreat at the same time; there are anti-superpose iron cushion device at the two sides of platen.
4) .There is a set of valve group of temperature adjuster on each heating area for the platen. Under the controlling of PLC, it can guarantee the even temperature of each heating area.
5) .Hydraulic pressure system: We adopt the famous brand hydraulic pressure station from the domestic and abroad, under the PLC control, it can realize the auto mould closing, air exhausting and load discharging when opening mould.
6).The in-phase balance device of the machine: there is an axis that runs through the machine sets below the platform, gear wheels and racks are designed on the two sides of the axis, which can guarantee the horizontal lifting for the platform.
7).The guiding device for mould closing: it is designed on the two sides of the lower mat platform, there are guiding seats for the frame board and platform, the guiding seats is produced with incline and the incline distance can be adjustable by the prop up screw.
8).Mould opening booster: during the mould opening, the four oil cylinder below the platform will start working and forcibly pull down the platform, which can prevent the mould from sticking.
type | XLB-1400X5700X2 | XLB-1400X10000X1 | XLB-1600X10000X2 | XLB-1800X8000X2 | XLB-1800X12000X2 | XLB-2000X10000X1 |
Plate size(mm) | 1400X5700 | 1400X10000 | 1600X10000 | 1800X8000 | 1800X120000 | 2000X10000 |
Total pressure(MN) | 25.00 | 49.00 | 56.00 | 51.00 | 74.00 | 70.00 |
Pressure unit of platen | 3.13 | 3.5 | 3.5 | 3.54 | 3.4 | 3.5 |
Ram. Dia. | 360 | 450 | 450 | 600 | 500 | 600 |
Ram number | 10 | 20 | 18 | 12 | 18 | 16 |
Max. ram stroke(mm) | 400 | 300 | 400 | 600 | 400 | 300 |
Clamping force(MN) | 0.72 | 0.90 | 1.20 | 1.20 | 1.20 | 1.20 |
Tensioning force(MPA) | 0.60 | 0.80 | 1.10 | 1.00 | 1.10 | 1.00 |
Steam pressure(MPA) | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 |
Pressure of cooling water(MPA) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Application | Conveyor belt | Conveyor belt | Conveyor belt | Conveyor belt | Conveyor belt | Conveyor belt |
Control system | PLC | PLC | PLC | PLC | PLC | PLC |
We are 100% real manufacturer
5 After-sales Service:
1 over seas service, two technician provides debug and training FOR 7-14 DAYS, charge 60 USD per day for one man .and you are responsible for round tickets, visa. Living, eating and so on.,one technician train worker how to produce rubber powder; another one rain worker how to make rubber tile.
2 during warranty, if quality problem appears (not include man made problem), we can replace it by free..
3 we will reply during 24 hours once problem appears, we can solve through guide picture or video; if problem can not solved through these solutions , we can send engineer to your factory.
one year guarantee for whole machine
24 hours technical support by email or call
calling or door-to-door service
Our packing way :Export standard (wooden package ) or according to your requirement .
Our Services :
1. We will design,manufacture,install and test the machines according to customers' requirement .Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.
2 .Our service department listen to customers' feedback at any time and provide spare parts timely.Welcome to visit our factory and we can show you the machine in working condition:
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
| Prod Model: | XLB 800x10000 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Conveyor Belt Vulcanizing Press |
| Function: | Rubber Products Vulcanizing |
| Heating: | Electric Oil or Steam |
| Plate: | Q235 |
| Model: | Xlb Series |
| Cylinder: | Cast Iron |
| Colour: | According to Customer |
| Operation: | PLC Automatic |
| Size: | 2300X1500X1800 |
| Electric Parts: | Schneider |
| Certification: | CE, ISO |
