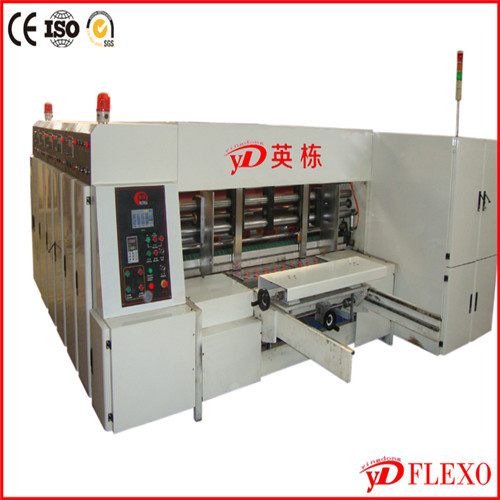

CE Approved Carton Printing Machine
Features:
printing machine is designed and made for high quality, high speed, high efficiency, high stability and high safety, convenient for quick order update and operation.
Made with high quality materials
Well hardened and ground transmission gears.
Auto zero return and auto reset.
All gaps between cylinders and rollers are manual adjustment, with auto-lock device.
All cylinders are hard chromed for ideal hardness.
Motorised
All electric, and pneumatic components are of European standards.
Product Show:
Feeding Unit:
Lead feed system with four-shaft structure is controlled by servo.
Vacuum suction system. The air volume can be set in accordance with different paperboard bending conditions so as to feed paper smoothly.
Double feeding roller device can ensure the best stabilization in feeding.
Speed Motor Control Feeder (Optional inverter control)
The main motor activates the protection device. If the unit is not locked, the main motor can not start.
The clearance of feeding roller is regulated by hand and the scope is 0-11mm.
Automatic zero setting and reset.
Carton Printing Unit:
Quick hanging form device can save more time. And 360 degree adjustment. And automatic reset.
A switch regulated by feet makes the roller turn clockwise and anticlockwise. So it is convenient to load and unload the form.
Steel anilox roller,(Optional equipment— ceramic anilox roller)
Anilox roller and rubber roller is adjusted by pneumatic control system.
Regulating printing phase position is motorized by planetary gear system and text display.
Slotting Unit
Height of the carton is adjusted by motor, and ruler displays.
The slotting clearance and the creasing clearance is adjusted synchronously by motor.
Phase position is regulated by motorized planetary gear.
Pre-creasing tool covered with YOU LI rubber to prevent crushing board.
Our business & Our factory :
For any questions and further informations,please feel free to contact us!
| Max. mechanic speed(pcs/min) | 200 | 200 | 200 | 200 | 180 |
| Max. feeding size(mm) | 880×2000 | 1180×2000 | 1180×2000 | 1380×2400 | 1600×2800 |
| Min. feeding size(mm) | 280×650 | 320×750 | 320×750 | 360×750 | 420×750 |
| Skip feeding(mm) | 1100×2000 | 1500×2000 | 1500×2400 | 1700x2400 | 1900×2800 |
| Max. printing area(mm) | 800×2000 | 1150×2000 | 1150×2400 | 1320x2400 | 1540×2800 |
| Max. thickness of board(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Min. slotting size | Slotting type L.(mm) | 160×160×160×160 | 160×160×160×160 | 160×160×160×160 | 160×160×160×160 | 165×165×165×165 |
| Slotting type L.(mm) | 240×80×240×80 | 250×90×250×90 | 250×90×250×90 | 280×90×280×90 | 260×90×260×90 |
| Max. slot depth(mm) | 250 | 320 | 320 | 320 | 560 |
| Max. thickness of board(mm) | 12 | 12 | 12 | 12 | 12 |
Dimension(L×W×H)(mm)
Note:S-Single D-Double T-Three F-Four | 11659×4240×3200 | 13015×4400×3500 | 13015×4800×3500 | 13570×4820×3500 | 14021×5220×3500 |
| 12079×4240×3200 | 13550×4400×3500 | 13550×4800×3500 | 14208×4820×3500 | 14701×5220×3500 |
|
|
|
|
|
Shanghai Yingdong Machinery was established in 2013, which is a high-tech enterprise including R&D, manufacture and sales of high level flexo printing machines.
Our company implement the ISO9001-2008, in strict accordance with "6S" factory on site management. All products series pass CE certification.
We concentrate on innovation, with more than 40 national patents. Yingdong Machinery is famous brand of China, also the main national standard setter of Flexo Printing Machine Industry and Folder Gluer Industry in China.
In accordance with the business principles "Honest, professional and long-term cooperation", Shanghai Yingdong Machinery is fundamental to the quality, innovation and customers' trust. Through our professional technology, serious management, and advanced CNC manufacturing equipment, with the care and precision of a sculptor, service carefully by heart, we provide high quality products and complete solutions.
We devote to be the global leading partner of the corrugated packaging industry, more than 100 machines running in customer sites in India, Poland, Burma etc. And thousands machines in domestic China market.
Shanghai Yingdong Machinery wishes to achieve resplendence with you hand in hand, shoulder to shoulder in the rat race in the future.
