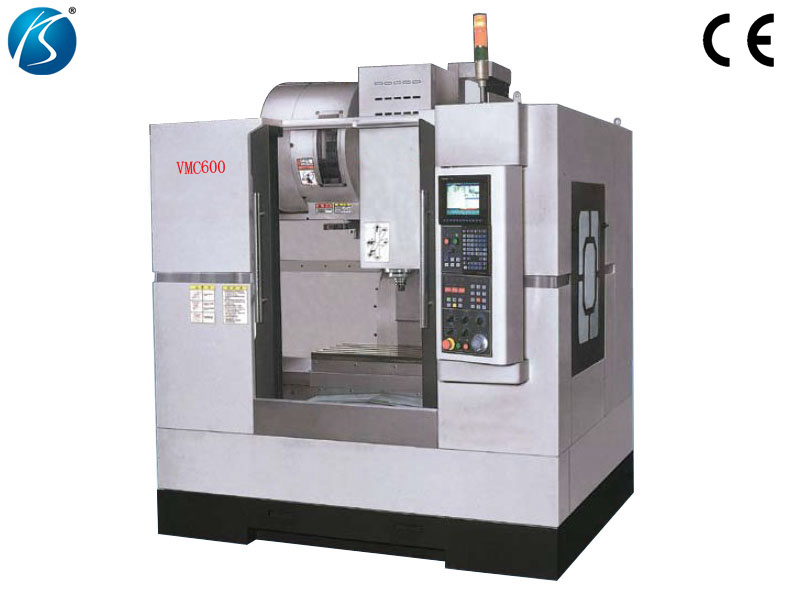

CE Vertical Machining Tool Vmc600
Price: |
US $ 10000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
Prod Model: |
VMC800 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Table Travel(X\Y\Z): |
600*400*400 mm |
Table Size: |
750*420 mm |
Number/Width/Distance Of T-Slot: |
3-14-10 mm |
Rapid Traverse Speed(X\Y\Z): |
48/48/60 M/Min |
Tool Magazine Capability: |
16PCS |
Max.Dimension Of Tool: |
80X120 mm |
Cutting Feed Speed(X\Y\Z): |
2 ~10000 mm/Min |
Spindle Speed Range: |
40~10000 R/Min |
From Spindle Nose To Table Surface: |
128~528 mm |
Positioning Accuracy: |
0.005/300JIS mm |
Type: |
Vertical Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Double-tool Holder CNC Lathe |
Power Source: |
Electric |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Setting Mode: |
Floor-type |
Precision: |
High Precision |
Product Description
Vertical Machining Center
VMC600
Table travel(X,Y,Z): 600×400×400 mm
Table size): 750×420 mm
Number/Width/Distance of T-slot: 3-14-10 mm
Distance from spindle nose to table surface: 128~528 mm
Distance from spindle axis to column guideway : 480 mm
Taper of spindle: BT40
Spindle speed range : 40~10000 r/min
Spindle motor power :(AC servo)7.5 kw
Rapid feed speed(X,Y,Z) : 48/48/60 m/min
Feed speed(X,Y,Z): 2~10000 mm/min
Tool magazine capability: 16 pcs
Max.dimension of tool :Φ80X120 mm
Max.weight of tool : 3.5 kg
Positioning accuracy : ±0.005/300JIS mm
Repeat positioning accuracy : ±0.003JIS mm
Dimensions (Length×Width×Height): 2000×1800×2200 mm
Weight: 3360 kg
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
