Product Specifications
| Prod Model: |
CE7NL 2P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |
Product Description

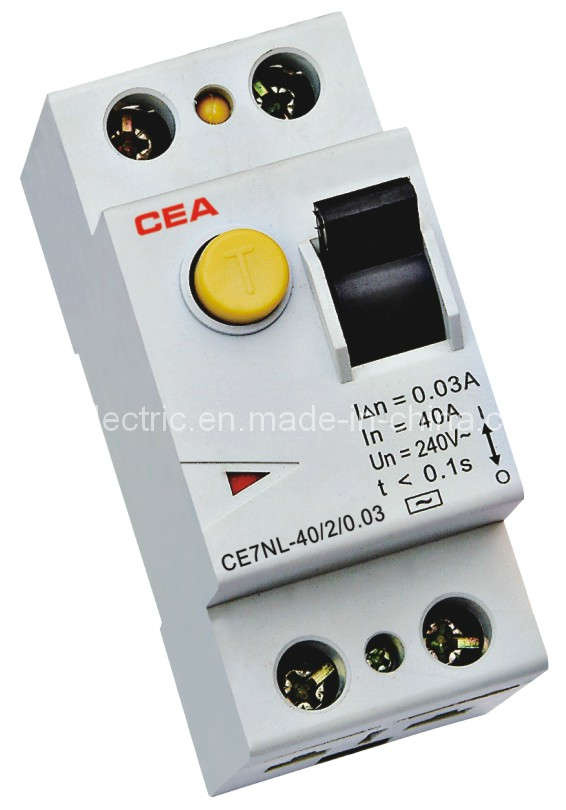

CE7NL 2P Residual Current Device
Application:
The Residual Current Device is in conformity with the standard of IEC61008.
It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.
CE7NL 2P RCD is mainly suitable for using in varieties of plants, enterprises, buildings, constructions, commerce, guesthouses and families. It can be used in circuits of 1 phase 230V and 3 phases 400V 50/60Hz.
| Number of Poles | 2P, 4P |
| Rated Current (A) | 16, 20, 25, 32, 40 | 50, 63 |
| Rated Residual Operating Current (lΔ n)(mA) | 30, 100, 300, 500 |
| Rated Residual Non-operation Current (lΔ no)(mA) | ≤ 0.5lΔ n |
| Rated Voltage (V) | AC 230/240 |
| Residual Current Off-time | ≤ 0.1S |
| Short Circuit Capacity (Icu) | 1500A | 3000A |
| Endurance | ≥ 4000 |
| Protection Degree | IP20 |
![]()
![]()
![]()
![]()
