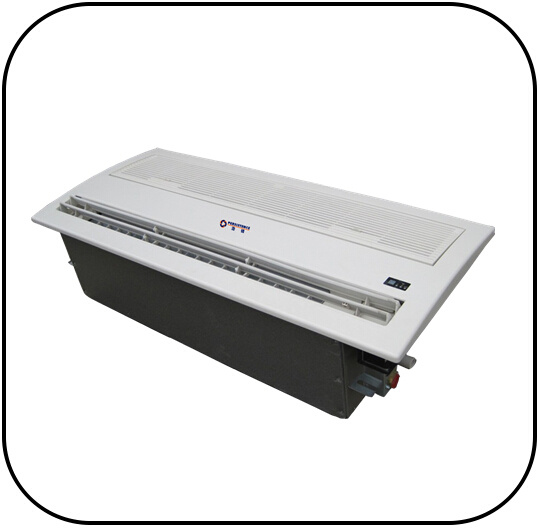

Persistence Hydronic 1 way Cassette type fan coil unit:
Main Features:
* Cooling capacity(kw): 1.8-4.5
* Air volume(m3/h): 340-850
* Condensing drain pump with lift 750mm
* 2 pipes & 4 pipes is available
* Auto swing
* "C"type heat exchanger, hydrophilic blue aluminum fin
* It is easy to maintain the fan and fan motor
*The wind guide bar of horizontal can be changed by manual
* Float switch inside to prevent from leaking
* Fresh air can be input from outdoor to better indoor air quality
* The unit is easy to be installed, Low installation cost.
* CE certification and RoHS standard
* 18 months warranty
Optional:
* 4 pipes system
* It is can be installed for the Electric heater
* Easily interfaced with most widely used Mod-Bus and proprieary supervisory system based on Mod-Bus protocol
* Remote controller is standard and wire controller is optional
* Water valve built-in
* 1way, 4way, 8 way air outlet for complete selection
Contact us:
Shanghai Bojin(Persistence) Business Development Company
Phone: +86(21) 66300461-8020
Fax: +86(21) 66300461-8007
| model(2 tube system) | MFP-34K1M-Q1AA1 | MFP-51K1M-Q1AA1 | MFP-68K1M-Q1AA1 | MFP-85K1M-Q1AA1 |
| model | MFP-34K1M-Q1A1 | MFP-51K1M-Q1A1 | MFP-68K1M-Q1A1 | MFP-85K1M-Q1A1 |
| model of panel | MB-SA11A1 |
| power supply | 220V,50Hz,1Ph |
| air volume | H | m 3 /h | 340 | 510 | 680 | 850 |
| M | 280 | 380 | 515 | 660 |
| L | 180 | 260 | 340 | 430 |
| static pressure | Pa | 0 | 0 | 0 | 0 |
| cooling capacity | TH | H | W | 1800 | 2700 | 3600 | 4500 |
| BTU/h | 6142 | 9212 | 12283 | 15354 |
| SH | W | 1300 | 1970 | 2700 | 3185 |
| BTU/h | 4436 | 6722 | 9212 | 10867 |
| TH | M | W | 1500 | 2460 | 3000 | 3715 |
| W | 1000 | 1555 | 1995 | 2420 |
| SH | L | W | 1390 | 2057 | 2479 | 2920 |
| W | 823 | 1200 | 1530 | 1825 |
| heating capacity | H | W | 2700 | 4050 | 5400 | 6750 |
| M | W | 1950 | 2770 | 3935 | 4900 |
| L | W | 1290 | 1774 | 2800 | 3505 |
| noise | H | 0Pa | dB(A) | 37 | 39 | 41 | 43 |
| power input | H | 0Pa | W | 37 | 52 | 62 | 76 |
| waterflow volume |
| m 3 /h | 0.31 | 0.46 | 0.62 | 0.77 |
| water pressure dropping | kPa | 10.8 | 10.8 | 20 | 20 |
| dimension of water(in & out)connection pipe | in | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" |
| out | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" |
| coil | type | high efficient copper pipe to wear Hydrophilic aluminum coil |
| dimension of water drain pipe | mm | 26 | 26 | 26 | 26 |
| net dimension | unit | L×W×H mm | 971*413*236 | 971*413*236 | 971*413*236 | 971*413*236 |
| panel | 1044*468*31 |
| net weight | unit | kg | 22 | 22 | 23 | 23 |
| panel | 4 |
