Features:

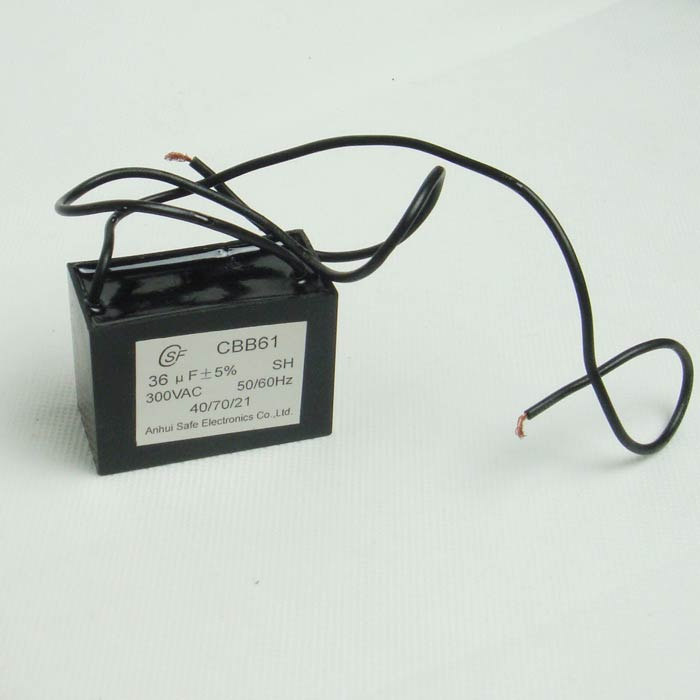

The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. It is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size, reliable performance and long endurance.
Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners' fans, electric fans and exhaust Fans etc, at comparatively low rated power.
Technical Specifications
Standard: IEC 60252-1: 2001
Technical features:
Climate type: 40/70/21 or 40/85/21
Capacitance tolerance: ± 5%
I. R: ≥ 3000S(MΩ @μ F)
Dielectric dissipation factor: Tgδ ≤ 0.002 (50Hz~100Hz)@
Application requirements:
Altitude: ≤ 2000m
Residual voltage in application: Less than 10% of rated voltage.
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current.
