Product Specifications
| Prod Model: |
YH-6040H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cell Phone Cases Automatic Measuring: |
for 2d Dimension Tester |
| Testing Travel: |
600*400*200mm |
| High Precision: |
3+L/200um |
| Accuracy: |
0.0005mm |
| Zoom Lens: |
U.S.Navitar Zoom Lens |
| CCD: |
U.S.Teo C7 CCD |
| Motor: |
Japan Coolmuscle Servo Motor |
| Measuring Software: |
2d Measuring Software |
| Certificate: |
ISO9001:2008 and CE |
| Warranty: |
12 Months |
| Type: |
Universal Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC220V |
Product Description
No Difficult Products To Test In The World!

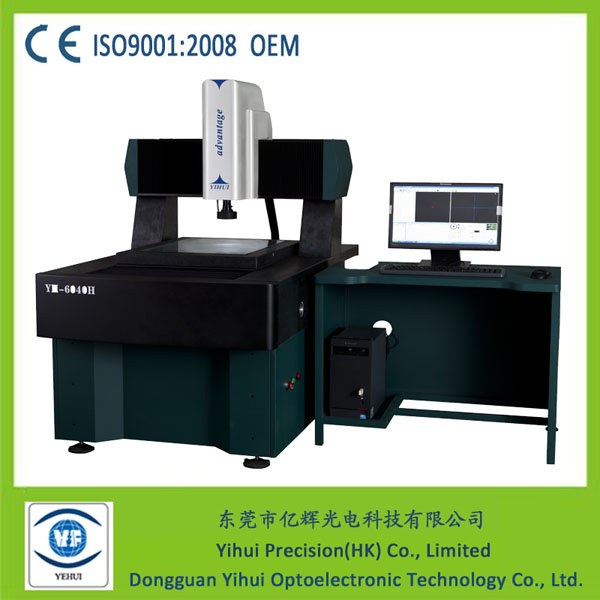

Cell Phone Cases Automatic Measuring Machine(YH-6040H)
Usage:
It's designed to measure the two coordinates in all application areas and apply to automatic detection of large quantities of work pieces. It's widely used in different kinds of precision finishing industries, such as: Machinery, electronics, ironware, instruments, plastics and so on.
Function:
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. It has many features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
3. It is coupled with our company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
4. Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.
5. Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.
6. Measurement data directly input into AutoCAD and become a full work circle; The data also can be entered in Excel and Word to conduct statistical analysis.
Welcome to visit our factory or send workpiece to us for test! Let's work out together!
|
Model |
YH-6040H |
|
Glass Desk's Dimensions |
650*450mm |
|
Measuring Range |
600*400*150mm |
|
Dimension |
1500*1100*1510mm |
|
Precision |
3+L/200 um |
|
X.Y.Z-axis digital display Resolution: 0.0005mm |
|
Camera: Original U.S. TEO 1 / 2 "CCD Camera |
|
Zoom lens : original U.S. NAVITAR |
|
Video Magnification :30-190X |
|
Material side field :11.1-1 .7 mm |
|
Zoom lens manification:0.7-4.5X |
|
Instrument Weight : 1100Kg |
|
Surface light source are transmitted using LED, brightness adjustable |
|
Optional: British RENISHAW Easy 3D measuring probe and measuring parts |
Dongguan Yihui Optoelectronics Technology Co., Ltd. was established in 2003, which is a high-tech enterprise with the precision measuring equipment R&D, prodution and sales. Our main products are: Video measuring machine, optical projectors, CMM, tool microscope etc. It is widely used in electronics, plastics, mold, machinery, hardware, clocks and connectors, mobile and other industries.
At present, our company have passed ISO9001 and CE Certificate. What's more, we has more than 30 design patents, and got the sofware copyright registration certificate awarded by the state intellectual property office.
"Customer oriented, quality first, standardized management, continuous transformation" is our company's operating philosophy. Base on leading technology, excellent quality and scientific management makes our company recognized by our customers.
Our Target: No Difficult Products To Test In The World!
