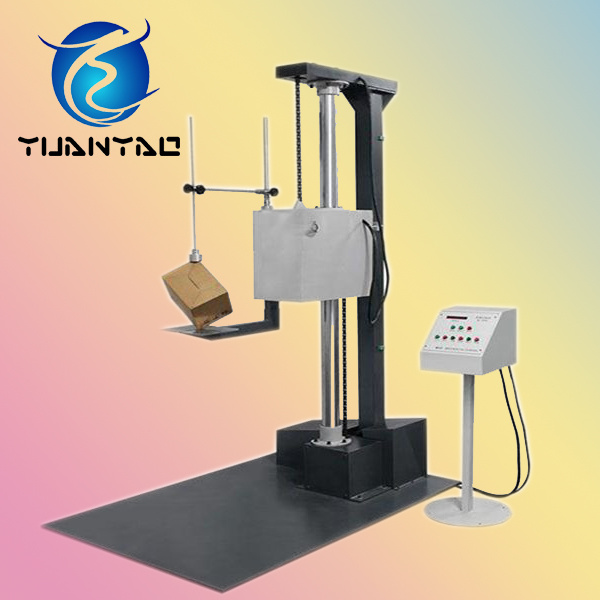

Cell Phone Fallng Test Experiment Drop Tester Machine (Pneumatic-type)
Introduction&Application
One Wing Drop Tester simulates the environment of dropping to test falling damage of product package and evaluate the impact resistance strength during transportation. It is applied to electronic parts, ready made products and package, etc.
Features
1 The spindle is used by precision grinding shaft lever, high precision, good stability
2 LCD screen displays multi-parameter.
3 Power failure safety design, keeping the original state when the power is failed.
4 Up and down lifting limitation setting,
5 Adopt single arm supports test object.
6 Swing arm system is controlled by air pressure.
7 Free adjust pressure and speed up to 2G with object weight.
8 Test elctronic parts, finished products or angle surfae of the package container.
9 Decompression change design, low noise.
10 Best after sales service: One year free parts maintenance.
11 Meet international test standards.
12 Customization is available & welcomed.
Technical parameters: Please see the label.
| Specification |
| Model | YDT-150A | YDT-200A | YDT-150B | YDT-200B |
| Type | Single arm supporting the specimen |
| Test height(mm) | 30-150 | 30 - 200 | 300 -150 | 300 - 200 |
| Max. specimen size(mm) | 1000*1000*800 |
| Max. specimen weight | 85 KG |
| Overall weight | 480Kg | 550Kg | 480Kg | 550Kg |
| Overall size(mm) | 1500*1000*2250 |
| Baseplate size | 1500*1000*20 |
| Control method | By electronic controller box |
| Dropping method | Pneumatic cylinder |
| Height display | LCD display reads drop height |
| Height adjustment | Servo motor controlling precision guiding |
| Buffer type | Oil pressure absorbability |
| Power | AC220V 50Hz 1 Phase |
| Comply with ISO2248-72(E), JIS Z0202-87,GB/T4857, 5-92. |
Welcome to enquire and purchase!
