Product Specifications
| Prod Model: |
CG101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Cg101 Control Cabinet |
| Feature: |
Explosion-Proof |
| Running Mode: |
Stationary |
| Structure: |
Electromagnetic Crane |
| Installation: |
Roughterrain Wheeled Crane |
| Type Of Work: |
Special Weight Level |
| Application: |
Building Crane |
| Type: |
Control System |
Product Description

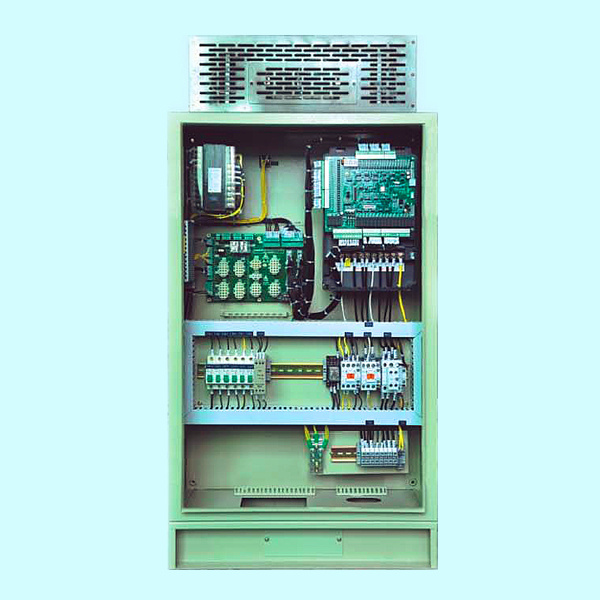

CG101 AC Frequency Conversion Control Cabinet Intergrated with Control-Driven
CG101 adopts the latest elevator integrated control technology to combine elevator logical control and frequency conversion drive. The advanced drive calculation will form N strips of running curves to make direct calls come ture.With parallel communication,it can effect emergency leveling while power-failure simply by UPS power.It is energy-saving,space-saving and high efficient.
Features:
Rated Speed:≤1.0m/s
Rated Floor:≤9 floor
Power Range:2.2KW~30KW
Power Supplier:AC220V±7% or AC110V±7% 50/60HZ for single phase
AC380V±7% or AC220V±7% 50/60HZ for phase 3
Safety Standard:GB7588-2009 EN81-1
Outline Dimension:570*275*1150mm(L*W*H)
