1. Material:
High quality low carbon steel wire, stainless steel wire, PVC coated wire, aluminum alloy wire.
2. Weaving and character:

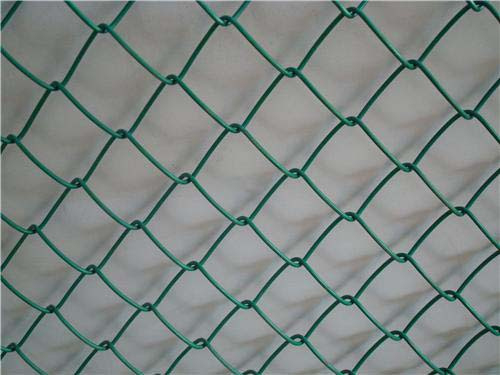

Chain link fence is also named of diamond wire mesh. Woven diamond pattern provides strong, durable and flexible construction. The closely spaced diamond mesh construction gives your fence linear strength and springy texture to protect horses from injury and prevent predators from entering paddocks and pastures.
3. Usage:
Chain link fence is used as fencing for sports field, river banks, construction and residence, also animal fencing.
4. Benefits:
Low carbon steel diamond mesh has a heavy galvanized coating, PVC coated covering to ensure a long life.
5. The Diamond Mesh enjoys the superiority:
Strong Stability;
Safe and flexible;
Solid and durable;
Does not sag or roll up at the bottom.
6. Specification reference:
| Mesh | Hot-dip Galvanized Wire | PVC Coated Wire |
| Wire Gauge (BWG) | Wire Diameter (mm) | Weight (Kg/square meter) | Roll Diameter (mm) | Wire Diameter (mm) | Weight (kg/ square meter) | Roll Diameter (mm) |
| 4'X50' | Before Coating/After Coating | 4'X50' |
| 1" | 12 | 2.8 | 3.87 | 220 | 2.6/3.2 | 3.7 | 280 |
| 13 | 2.4 | 2.9 | 200 | 2.0/2.6 | 2.3 | 240 |
| (25mm) | 14 | 2.1 | 2.3 | 180 | 1.4/2.0 | 1.2 | 220 |
| 16 | 1.6 | 1.34 | 160 | 1.0/1.6 | 0.7 | 200 |
| 1.5" | 10 | 3.4 | 3.7 | 280 | 3.4/4.0 | 3.9 | 290 |
| 11 | 3 | 3 | 250 | 2.6/3.2 | 2.4 | 280 |
| (40mm) | 12 | 2.8 | 2.4 | 230 | 2.0/2.6 | 1.4 | 240 |
| 14 | 2.1 | 1.4 | 220 | 1.4/2.0 | 0.8 | 220 |
| 2" | 8 | 4.2 | 4.5 | 280 | 3.4/4.0 | 3.2 | 280 |
| 10 | 3.4 | 2.9 | 250 | 2.6/3.2 | 1.9 | 250 |
| (50mm) | 12 | 2.8 | 1.9 | 230 | 2.0/2.6 | 1.2 | 230 |
| 14 | 2.1 | 1.2 | 220 | 1.4/2.0 | 0.6 | 220 |
| 2.25" | 8 | 4.2 | 3.9 | 290 | 3.4/4.0 | 2.8 | 280 |
| 10 | 3.4 | 2.6 | 280 | 2.6/3.2 | 1.7 | 250 |
| (56mm) | 12 | 2.8 | 1.7 | 250 | 2.0/2.6 | 1 | 230 |
| 14 | 2.1 | 1 | 220 | 1.4/2.0 | 0.55 | 220 |
| 2.4" | 8 | 4.2 | 3.7 | 290 | 3.4/4.0 | 2.6 | 290 |
| 10 | 3.4 | 2.5 | 280 | 2.6/3.2 | 1.6 | 280 |
| (60mm) | 12 | 2.8 | 1.63 | 250 | 2.0/2.6 | 1 | 250 |
| 14 | 2.1 | 1 | 220 | 1.4/2.0 | 0.48 | 230 |
| 2.5" | 8 | 4.2 | 3.5 | 290 | 3.4/4.0 | 2.5 | 300 |
| 10 | 3.4 | 2.3 | 280 | 2.6/3.2 | 1.5 | 280 |
| (64mm) | 12 | 2.8 | 1.6 | 250 | 2.0/2.6 | 0.9 | 250 |
| 14 | 2.1 | 0.9 | 220 | / | / | / |
| 3" | 8 | 4.2 | 3 | 300 | 4.4/5.0 | 3.4 | 300 |
| 10 | 3.4 | 2 | 290 | 3.4/4.0 | 2.1 | 290 |
| (76mm) | 12 | 2.8 | 1.3 | 280 | 2.6/3.2 | 1.3 | 250 |
| 14 | 2.1 | 0.8 | 250 | / | / | / |
Hebei Zekai Import and Export Trading Co., Ltd is an integrated company of production, deep processing and marketing of wire meshes. It was established in 2000, located in Dong Zhuoxiu development zone of Jinzhou city, Hebei Province, where is with a good location and convenient transportation, next to Shihuang Hi-speed on the north, and next to 307 national highway on the south, 300 km from Tinjin Xingang port, providing convenient service for customers via both ocean shipping and land transportation. The factory area is about 8000 square meters, and the monthly output is about 400 tons. The factory is strong in technical force, with rich experience in wire mesh products, and complete detection means, able to produce wire meshes with a wide range of models and specifications. Our mains products are: Galvanized iron wires, galvanized process iron wires, redrawn wires, oil coated wires, oil injected wires, cut wires, annealed wires, common wire nails, steel nails, etc. Its perfect ISO9001 quality management system makes a forceful guarantee for the excellent quality of the products. The company, inheriting the management idea of " Customer first, Forge ahead with determination", depending on the aggressive work team, advanced production technology, efficient marketing network, along with superior after-sale service, and insisting the principle of "Best quality, Most favorable price", has set up a good brand image in society. The products sell well all over the country, and also are exported to overseas markets such as Middle East, South America, Southeast Asia and Russia, well received by the customers at home and abroad. Welcome friends from all circles to visit and make business negotiations!
