Product Specifications
Prod Model: |
WLXM-650 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
Name: |
Briquetting Ball Press for Charcoal |
Color: |
Orange, Green/Blue/Green |
Main Shaft Speed: |
13r/Min |
Speed Reducer: |
Zq650 |
Roller Diameter: |
650mm |
Roll Material: |
65mn |
Principal Axis: |
165mm |
Main Shaft: |
Forging |
Roller Width: |
336mm |
Power: |
20-30kw |
Pressing Mode: |
Twin-roller |
Product Shape: |
Square Shape |
Motor Type: |
AC Motor |
Condition: |
New |
Product Description

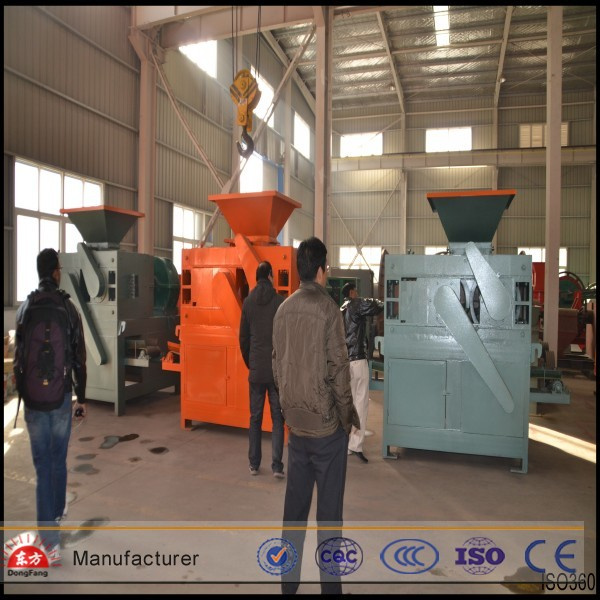

Charcoal Pulverized making machinery of
various types for choosing
Instruction :
The charcoal pulverized making machinery can take the wood material into Briquette,
which can be used in Boiler, Heating and Warming, After carbonization, the
briquette will become charcoal, used in BBQ.
Raw materials :
Coal and charcoal powder, zinc oxide, lead oxide, calcium chloride, calcium phosphate.
High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.
Features :
1.The machine is small occupation.
2.The base material is alloy steel,so the machine is durable and high quality.
3.The machine can be used to make waste profitable,such as charcoal,coconut shell ,
sludge and so on,as a result,it will bring you huge wealth.
4.Our machines all have high pressure,so the final production are hard and unbreakable.
5.Last,our factory is an old and reinforced enterprise,we have good credit guarantee.
Working Principle :
Motive power will transmit to two rollers through the reducer synchronously and
make them rotate oppositely. Materials enter into ball mode naturally, with rollers
rotation, pressure of materials bearing becomes larger. When arriving at two rollers
contact point, materials bearing pressure reaches peak. Under the tremendous pre
ssure, materials become ball shape from powder shape.
Technical Parameters :
Type | Roll diameter(mm) | Capacity(t/h) | Power(kw) |
ZKBM290 | 290 | 1-3 | 5.5 |
ZKBM360 | 360 | 4-6 | 11-15 |
ZKBM430 | 430 | 6-8 | 18.5 |
ZKBM500 | 500 | 7-9 | 18.5-55 |
ZKBM500H | 500 | 7-9 | 20.7-57.2 |
ZKBM650 | 650 | 10-15 | 37-45 |
ZKBM650H | 650 | 10-15 | 39.2-47.2 |
ZKBM750 | 750 | 15-20 | 75-110 |
ZKBM750H | 750 | 15-20 | 78-113 |
ZKBM850 | 850 | 20-25 | 90-110 |
ZKBM850H | 850 | 20-25 | 93-113 |
ZKBM1000 | 1000 | 25-30 | 90-132 |
ZKBM1000H | 1000 | 25-30 | 93-135 |
Remarks: Based on different materials, briquettes size, capacity, the technical parameter is adjustable. |
Operation :
1. If your raw material is big block, you should choose a crusher.
2. If your raw material is with high moisture (higher than 12%), you should choose
a dryer. If you prefer to use dry powder type briquette machine, the moisture should
be less than 5%, also based on materials' performance.
3. Generally, it is better to add some binder/adhesive into the raw material. If you pre
-fer to use dry powder type briquette machines, generally, no need binder.
4. About belt conveyor, you can buy from us, also can make by yourself. We would
like to supply the detail drawing of conveyor for you.
5. The final briquettes can be dried under the sun or through mesh belt dryer and chain
plate dryer.
